33
Component feeding
Matrix Tray Changer (MTC)
Technical data
Electrical ratings
Tower 1 (XL) Tower 2
Dimensions
Length x width
Height
1305 mm x 600 mm
1560 mm for 900 mm PCB conveyor height
1590 mm for 930 mm PCB conveyor height
1640 mm for 950 mm PCB conveyor height
Weight (basic package)
Approx. 500 kg (with cassettes and waffle pack tray carriers)
Weight (fully configured)
Approx. 534 kg (with components)
Weight (moving loads)
Approx. 80 kg Approx. 43.5 kg
Cassette size (L x W x H)
391.2 x 305.6 x 93.3 mm³ 352.7 x 154.8 x 133.8 mm³
Cassette weight
(fully configured)
(without waffle pack tray carrier)
Approx. 11 kg
Approx. 1.7 kg
Approx. 7.5 kg
Approx. 1.35 kg
Weight of the waffle pack tray
carrier
850 g 150 g
Dimensions of waffle pack tray
carrier (L x W x H)
386.5 mm x 295.8 mm x 11.1 mm 371 mm x 146 mm x 10.1 mm
Distance from cassette to cas-
sette
96 mm 135 mm
Distance from level to level
12 mm 11.8 mm
Storage capacity
30 waffle pack tray carrier XL with
60 JEDEC or
30 special magazines
of maximum size
40 waffle pack tray carriers
with 40 JEDEC waffle pack
trays
Changeover time (over 5 levels)
Approx. 2 s Approx. 1.5 s
Max. height of component and
waffle pack tray incl. tolerances
All levels occupied
One level free
Two levels free
8.5 mm
19.5 mm
31.5 mm
8.5 mm
19.5 mm
–
Supply voltage 3 x 200 V~ ± 5%; 50/60 Hz (Japan)
3 x 208 V~ ± 5%; 50/60 Hz (U.S.A.)
3 x 400 V~ ± 5%; 50/60 Hz (Europe)
Overall power 1.5 kW
34
Component feeding
Wafflepack Changer (WPC5/WPC6)
The waffle pack changer
makes flatpack ICs available
in the waffle pack trays, to
avoid unnecessary loss of
time during storage and
automatic changing of the
waffle pack trays.
The WPC setup is coordi-
nated with the placement
sequence to ensure optimum
use of distances and time.
The magazine storage unit
with waffle pack trays moves
in a vertical direction, until
the required magazine is in
the access range of the feed
axis.
The horizontal feed axis
transports the waffle pack
tray from the tower to the
access area of the place-
ment head. The first maga-
zine is made available as
soon as a board is moved
into the PCB conveyor and
valid panel and setup data
has been provided. All maga-
zine changes are performed
within the placement cycle
time. JEDEC magazines can
be refilled without machine
stoppages. Faulty compo-
nents are placed back in the
original magazine.
The Waffle Pack Changer
can not be used together
with the SpeedStar (C&P20
P2).
WPC6
The WPC6 also has a non-
stop module. This enables
the user to refill waffle pack
trays during ongoing opera-
tions. The nonstop module
facilitates opening of the
loading flap during operation,
for insertion of waffle pack
trays. Filling levels can be
refreshed or individual levels
manually refilled using the
additional functions.

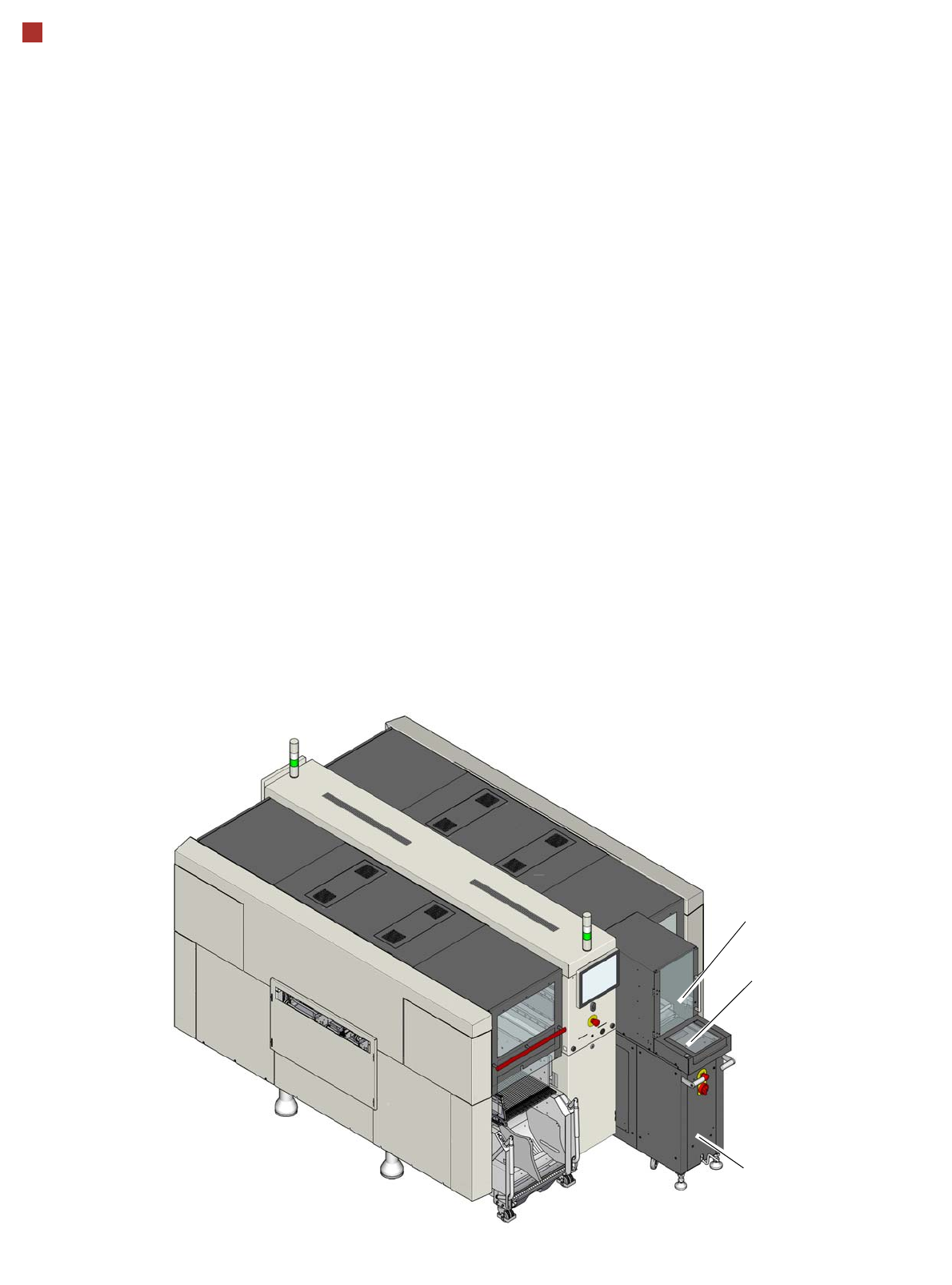

WPC6
Waffle pack tray stor-
age unit
Nonstop module
35
Component feeding
Wafflepack Changer (WPC5/WPC6)
Technical data
Electrical ratings
WPC5/WPC6 dimensions
Length x width
Height
For 900 mm PCB conveyor height
For 930 mm PCB conveyor height
For 950 mm PCB conveyor height
1520 mm x 360 mm
1430 mm
1460 mm
1480 mm
WPC5 weight
Basic configuration (with cassettes and waffle pack tray carriers)
Fully configured (with WPTC and cassette with components)
Approx. 270 kg
Approx. 320 kg
WPC6 weight
Basic configuration (with cassettes and waffle pack tray carriers)
Fully configured (with WPTC and cassette with components)
Approx. 280 kg
Approx. 330 kg
WPC5/WPC6 surface load ≤ 25 N/cm²
Weight of the waffle pack tray carrier 0.8 kg
Dimensions of waffle pack tray carrier (LxWxH) 360 mm x 260 mm x 6 mm
Dimensions of waffle pack tray (LxWxH) 347 mm x 235 mm x 15 mm
Height of waffle-pack tray, including component
Standard (all levels occupied)
WPC5
WPC6
High components (levels omitted)
a
WPC5
b
WPC6
b
a) From serial number B3xxx (WPC5) / C3xxx (WPC6)
b) 29 mm (component height + height of waffle pack tray) in conjunction with X-Series S.
15 mm
15 mm
45 mm
45 mm
Distance from level to level 17 mm (± 2 mm)
Storage capacity 28 waffle pack tray carriers
Changeover time for waffle pack tray carrier
Over 1 level
Over 10 levels
Over 27 levels
1.9 s
2.3 s
2.8 s
Supply voltage 3 x 200 V~ ± 5 %; 50/60 Hz (Japan)
3 x 208 V~ ± 5 %; 50/60 Hz (U.S.A)
3 x 230 V~ ± 5 %; 50/60 Hz
3 x 380 V~ ± 5 %; 50/60 Hz
3 x 400 V~ ± 5 %; 50/60 Hz (Europe)
3 x 415 V~ ± 5 %; 50/60 Hz
Nominal apparent power 1.5 kVA
Nominal active power 1.0 kW
