Technical data
Maneuvering distances for WPC
Pos. Description Location 1/2
D1 Minimum required maneuvering distance for moving the component
trolley out.
800 mm
D2 Recommended maneuvering distance for moving component trolley
out.Distance to adjacent machine/line or the building wall.
1300 mm
D3
Recommended maneuvering distance for moving WPC out. Distance
to adjacent machine/line or the building wall.
1000 mm
L1 Distance from machine center to outer edge of WPC (handles) 2100 mm
54
Technical data
Spacing distances for single conveyor
Fixed conveyor side at maxi-
mum right position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 23.
All dimensions in millimeters.
Fixed conveyor side at maximum
left position
a
.
55
Technical data

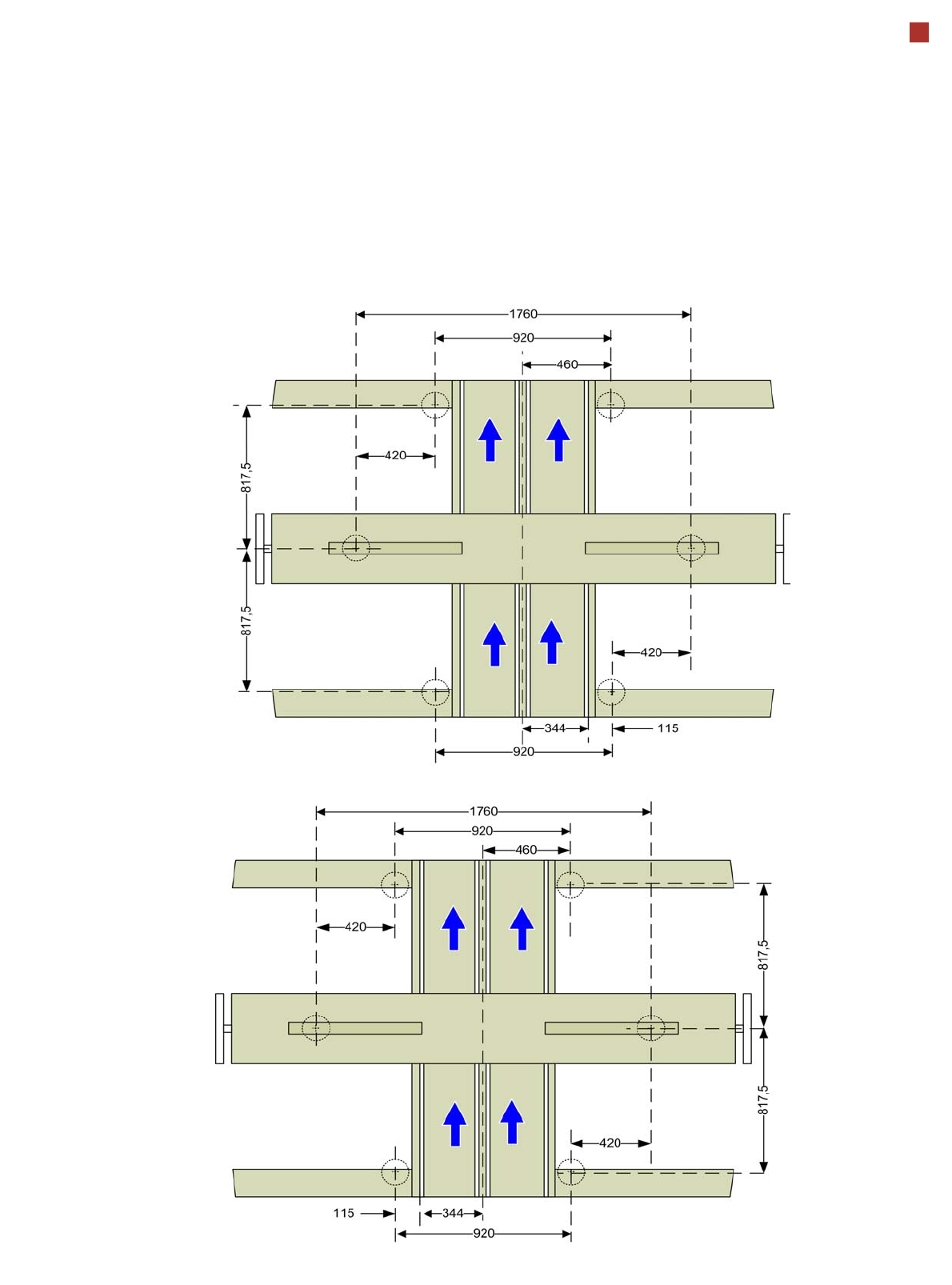

Spacing distances for the flexible dual conveyor
Fixed conveyor side at maxi-
mum right position
a
.
Fixed conveyor side at maxi-
mum left position
a
.
a) The value depends on the position of the fixed side. See table of adjustable side positions on page 23.
