6 SIPLACE X-Series S Machine description Intellig ent placeme nt solu- tions for maximum stan- dards Maximum flexibility, top per- formance or placement qual- i t y : T h e S I P L A C E X - S e r i e s S has state-of-th…
5
Overview of technical data
Maximum values
Placement performance
Benchmark value 172,000 comp./h
Component range 0201 (metric) - 200 mm x 110 mm
Placement accuracy ± 22 µm, (3
σ)
Feeding capacity (component trolley X) 160 feeder modules 8 mm X
Board format (length x width) 850 mm
a
x 685 mm
b
a) With license for "Long Board Option" and input/output conveyor extension.
b) Board width up to 560 mm as standard. Board widths up to 685 mm available on request.

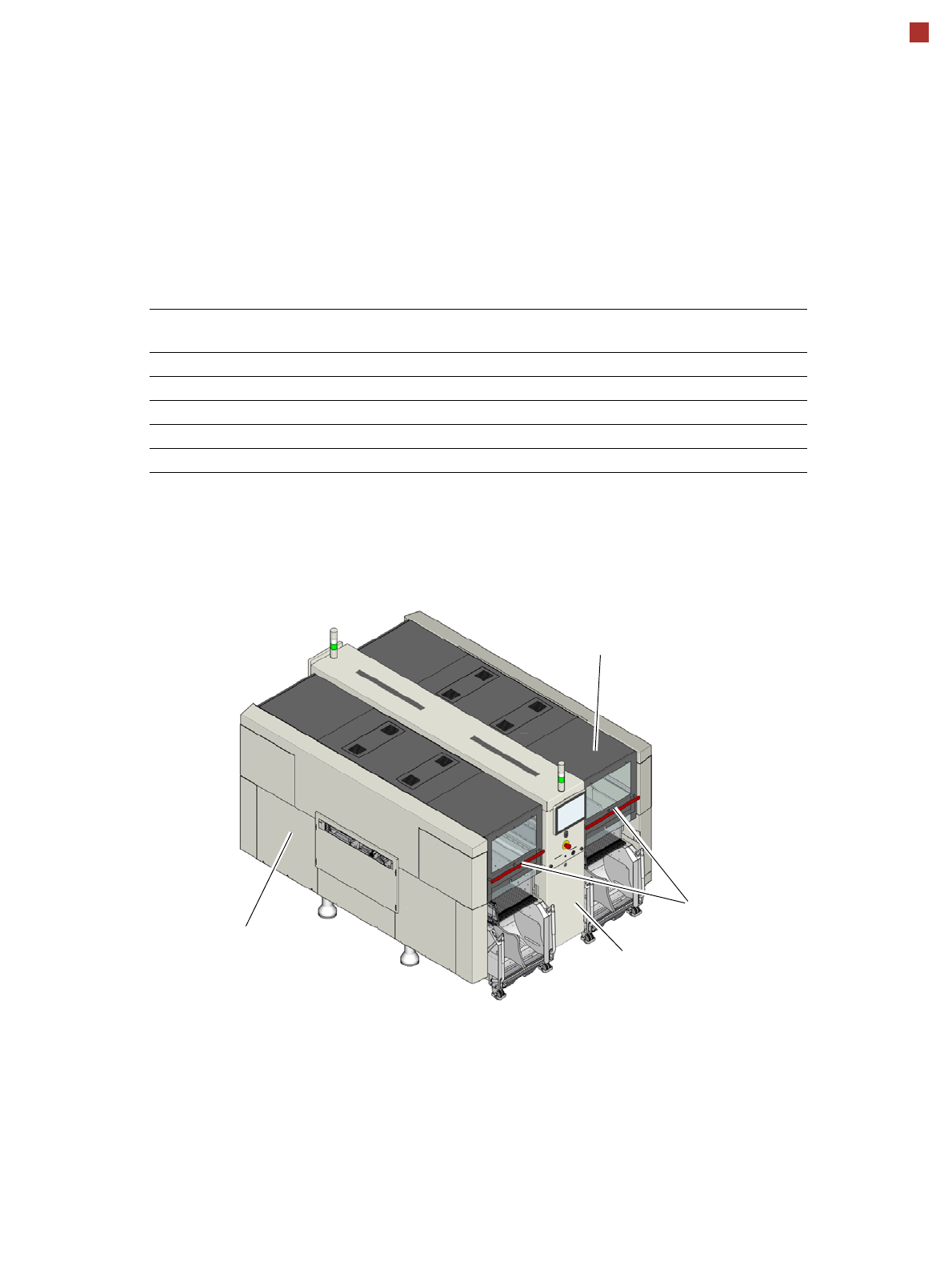

Camera 6 illumination levels
Machine protection: Telegray
(RAL 7047)
Machine colors
Covers: Telegray
(RAL 7047)
Covers: Pearl dark gray
(RAL 9023 )
Handles: Ruby red
(RAL 3003)
6
SIPLACE X-Series S
Machine description
Intelligent placement solu-
tions for maximum stan-
dards
Maximum flexibility, top per-
formance or placement qual-
ity: The SIPLACE X-Series S
has state-of-the-art technol-
ogy to master any challenge
arising in SMT production. It
offers all the innovations and
features to ensure efficient
electronics production today
and in the future, and pro-
vides previously unavailable
ways to increase both effi-
ciency and productivity.
Maximum modularity for
every need
The compact design of the
SIPLACE X-Series S forms
the ideal basis for new,
future-oriented production
concepts which keep pace
with dynamically developing
customer requirements, with-
out the need for time-con-
suming conversion as in
traditional SMT production
lines.
The X-Series S placement
machines are available in
four different variants
• SIPLACE X2 S (520210)
• SIPLACE X3 S (520310)
• SIPLACE X4 S (520480)
• SIPLACE X4i S (520440)
The numbers in the type
name indicate the number of
gantries used. Each gantry
has one placement head.
The SIPLACE X-Series S
covers the entire range of
common components with
only three placement heads.
The ideal addition to the
proven SIPLACE TwinStar
and the high speed
SIPLACE SpeedStar is the
new SIPLACE Multistar
placement head.
The user benefits from differ-
ent PCB conveyor variants:
The single conveyor and
the flexible dual conveyor.
7
Modular machine concept
Overview
Placement machine without heads and
component trolleys
X2 S
X3 S
X4 S
X4i S
Selection of placement heads
MultiStar (CPP)
SpeedStar (C&P20 P2)
TwinStar (TH)
Selection of conveyor
Single conveyor
Flexible dual conveyor
Selection of component infeed
Component trolley
WPC5 or WPC6
MTC
JTF-M
Selection of feeder modules
X tape feeder modules
Linear Dipping Unit X
Label presenter
MeasuringFeeder X
SIPLACE PowerConnector X
Customized special feeders
