8 Modular machine concept Example of SIPLACE X2 S NC NC C&P20 P2 NC PA1 PA2 COT C&P20 P2 PA1 Placement area 1 PA2 Placement area 2 OP Operator panel C&P20 P2 SIPLACE SpeedStar NC Nozzle changer NC2 Nozzle cha…
7
Modular machine concept
Overview
Placement machine without heads and
component trolleys
X2 S
X3 S
X4 S
X4i S
Selection of placement heads
MultiStar (CPP)
SpeedStar (C&P20 P2)
TwinStar (TH)
Selection of conveyor
Single conveyor
Flexible dual conveyor
Selection of component infeed
Component trolley
WPC5 or WPC6
MTC
JTF-M
Selection of feeder modules
X tape feeder modules
Linear Dipping Unit X
Label presenter
MeasuringFeeder X
SIPLACE PowerConnector X
Customized special feeders
8
Modular machine concept

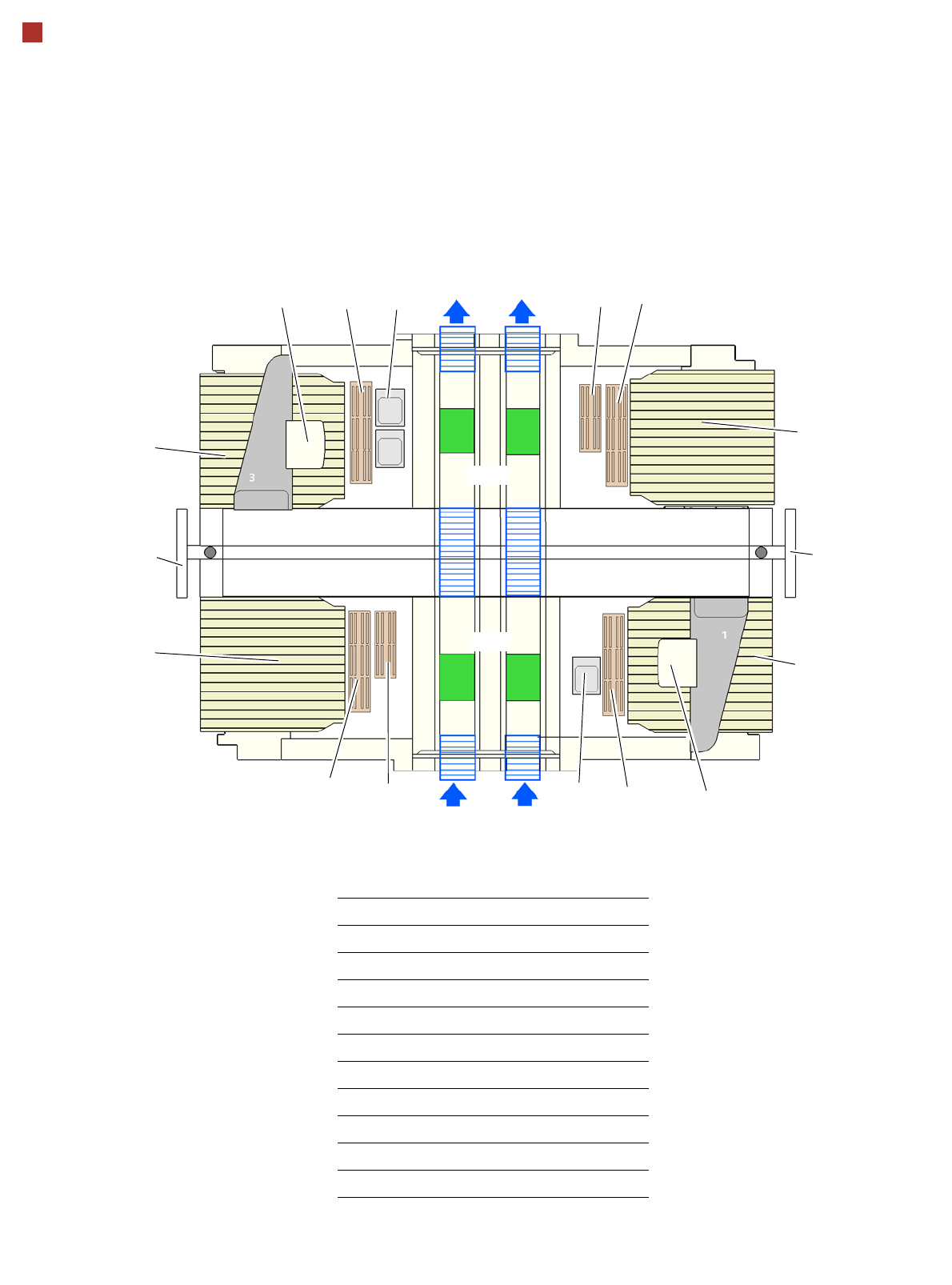

Example of SIPLACE X2 S
NC
NC
C&P20 P2
NC
PA1
PA2
COT
C&P20 P2
PA1 Placement area 1
PA2 Placement area 2
OP Operator panel
C&P20 P2 SIPLACE SpeedStar
NC Nozzle changer
NC2 Nozzle changer "row 2"
CAM Stationary cameras
BZ Buffer zone
COT Changeover table
IN Input area - conveyor
OUT Output area - conveyor
OP
OP
BZ
PLEASE NOTE: For all possible head configurations please refer to section Machine performance from page 12.
COT
COT
COT
IN
OUT
OUT
BZ
IN
CAM
CAM
NC
NC2
NC2
9
Modular machine concept
Example of SIPLACE X3 S
NC
NC
C&P20 P2
C&P20 P2
NC
NC
PA1
PA2
COT
C&P20 P2
PA1 Placement area 1
PA2 Placement area 2
OP Operator panel
C&P20 P2 SIPLACE SpeedStar
NC Nozzle changer
NC2 Nozzle changer "row 2"
CAM Stationary cameras
BZ Buffer zone
COT Changeover table
IN Input area - conveyor
OUT Output area - conveyor
OP
OP
BZ
PLEASE NOTE: For all possible head configurations please refer to section Machine performance from page 12.
COT
COT
COT
IN
OUT
OUT
BZ
IN
CAM
CAM
NC2
NC2
