17 P -S047-17 1006-002 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 21 1 6301201047 BEL T ,FLA T 2→0 831H--1 10-21 1 223H0141 231 6300970494 PLA TE 2 831H-A1 10020-A001 21 1D6660 232 6300970500 GUIDE 2 831H-…
P -S047-17
1006-002
16
See Fig.H-4
Key No.322
See Fig.H-4
Key No.323
See Fig.H-3
Key No.215
See Fig.H-3
Key No.215
See Fig.H-3
Key No.224
See Fig.H-3
Key No.223
236
236
254
256
255
254
256
255
251
251
253
252
255
256
254
255
256
254
251
234
231
233
232
251
253
252
233
231
234
232
238

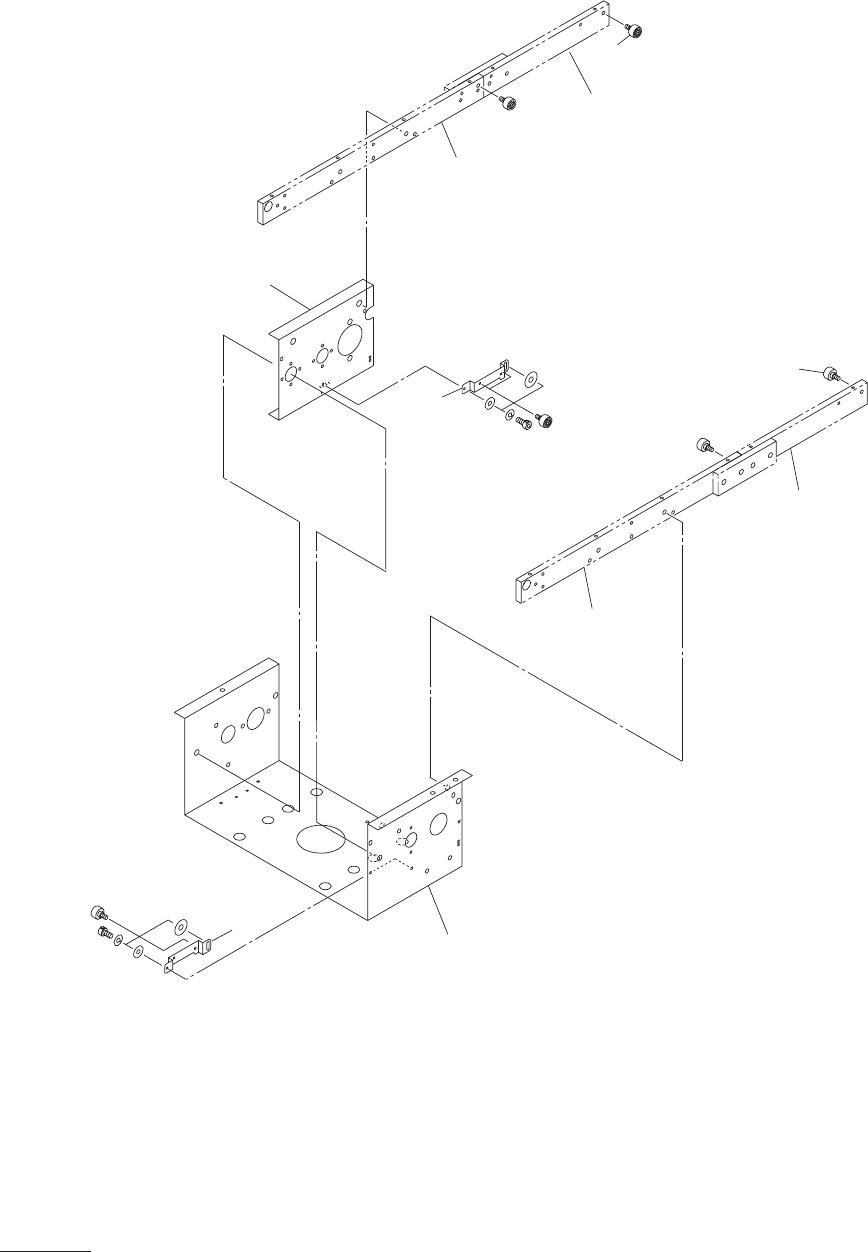

コンベア部
CONVEYOR SECTION
Fig. H-3 R
コンベア搬送部
R Conveyor Transfer Section
( 奥基準、左流れ）
(Rear Reference, Left Flow)
17
P -S047-17
1006-002
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
211 6301201047 BELT,FLAT 2→0 831H--110-211 223H0141
231 6300970494 PLATE 2
831H-A110020-A001
211D6660
232 6300970500 GUIDE 2
831H-A110020-A002
212A1654
233 6301483160 PLATE 2
831H-A110020-A003
211DB898
234 6300970531 BLOCK 2
831H-A110020-A004
211G2314
236 6301200415 BELT,FLAT 2
831H-A110020-A011
223H0135
238 6301481210 CORD 1
831H-A110020-A013
4W203626
251 6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
252 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
253 4111412905 WASHER SPR 4 4 SW4 221H0284
254 6300007763 BOLT,HEX-SCT 8 M5X16 221A0031
255 4111414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
256 4111413001 WASHER SPR 6 8 SW6 221H0289
H-3
P -S047-17
1006-002
18
See Fig.H-3
Key No.215
See Fig.H-3
Key No.215
See Fig.H-3
Key No.231
See Fig.H-3
Key No.231
See Fig.H-4
Key No.323
See Fig.H-4
Key No.322
347
347
335
345
コンベア部
CONVEYOR SECTION
Fig. H-4 R
コンベアフレーム
R Conveyor Frame
( 手前基準、左流れ）
(Front Reference, Left Flow)
