Z Axis 00197973-10 / 02 , 2016
6-22 © ASM SIPLACE Mat. Tower Storage Service Manual

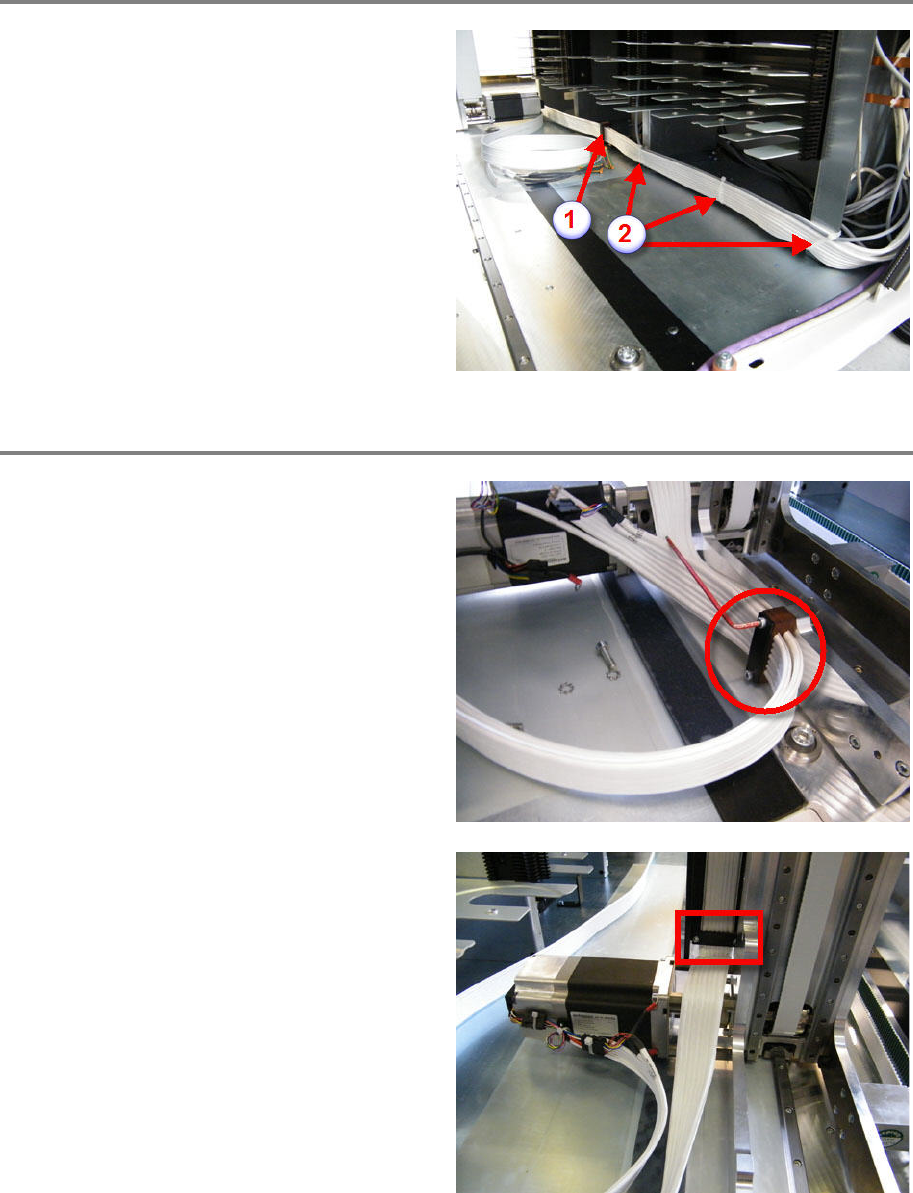

Remove hybrid cable along X axis
Loosen and remove the two screws and the
cable clamping itself (1).
Cut off the cable ties and remove them (2).
Remove the defective hybrid cable.
Remove hybrid cable at Z motor
Manually move the gripper upwards for
unhindered access on the bottom.
Loosen and remove the two screws and the
cable clamping itself.
Cut off and remove the cable tie.
Remove the defective hybrid cable.
Loosen and remove the two screws and the
cable clamping itself.
00197973-10 / 02 , 2016 Z Axis
SIPLACE Mat. Tower Storage Service Manual © ASM 6-23

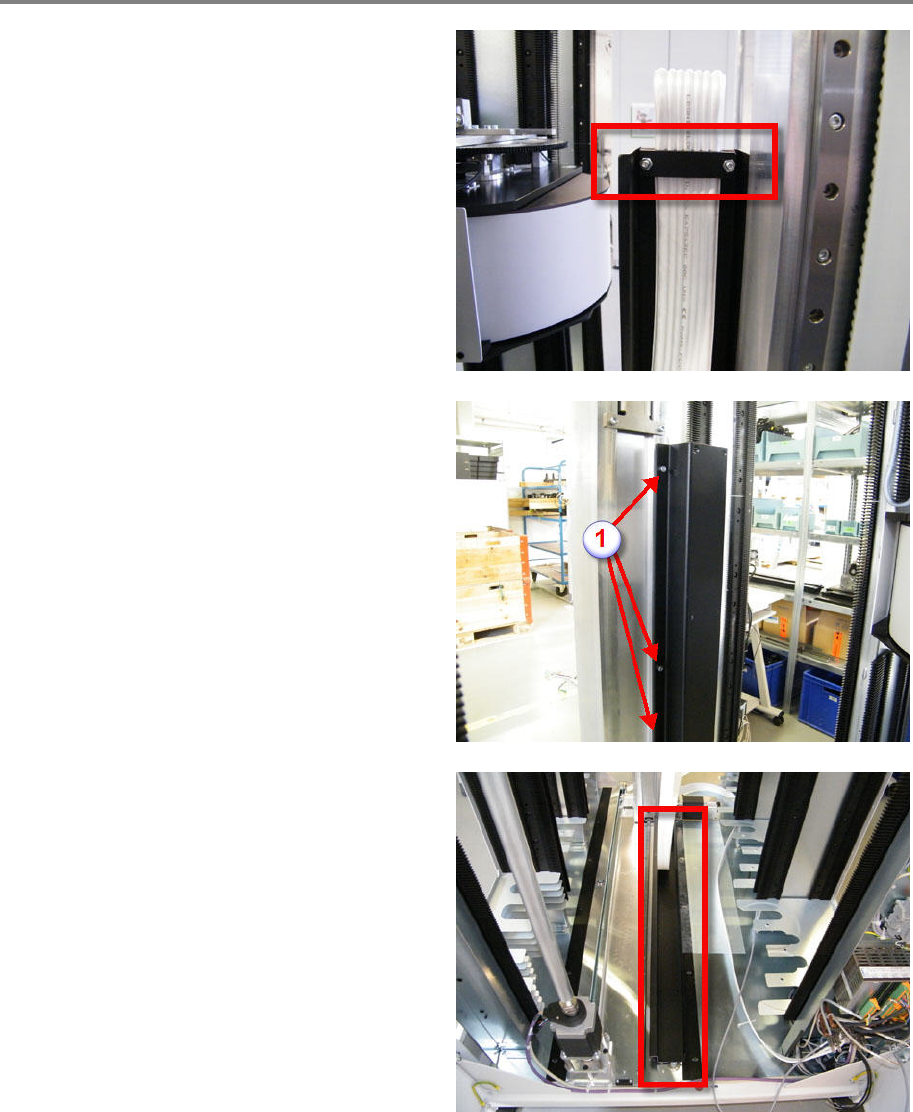

Remove cable duct
Loosen and remove the two screws and the
cable clamping itself.
Cut off all cable ties and remove them.
Remove the defective hybrid cable.
Loosen and remove the five screws of the cable
duct (1).
Put the cable duct on the floor.
Z Axis 00197973-10 / 02 , 2016
6-24 © ASM SIPLACE Mat. Tower Storage Service Manual
Remove cable from Y axis motor
Cut off the cable tie and remove it.
Remove the connectors.
Loosen and remove the shield screw.
Slip out the cable.
