0019797 3 - 10 / 02 , 2016 Z Axis SIPLACE Mat. Towe r St ora ge Serv ice Manual © ASM 6- 25 Cut off and re move the cable ties (1). Remove cable from gri pper Remove the three c onnectors (1). Cut off the three c able ti…
Z Axis 00197973-10 / 02 , 2016
6-24 © ASM SIPLACE Mat. Tower Storage Service Manual

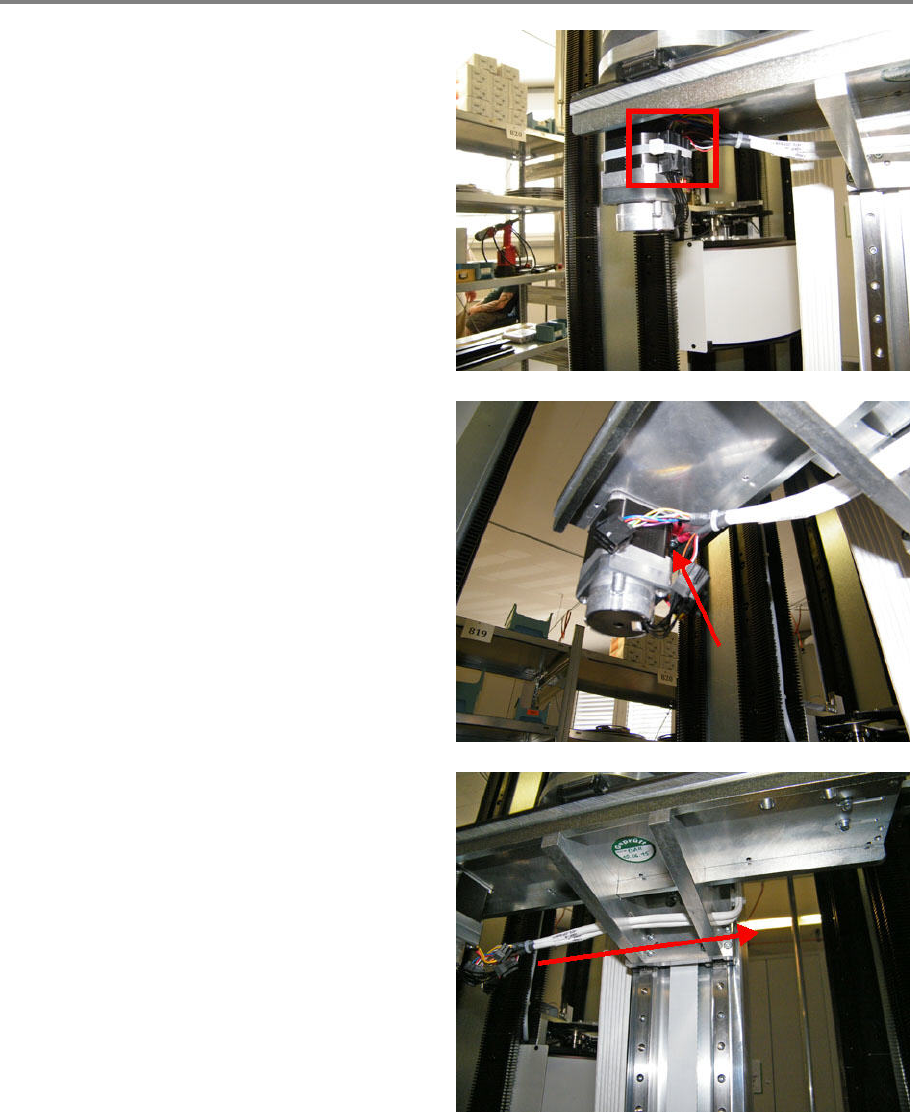

Remove cable from Y axis motor
Cut off the cable tie and remove it.
Remove the connectors.
Loosen and remove the shield screw.
Slip out the cable.
00197973-10 / 02 , 2016 Z Axis
SIPLACE Mat. Tower Storage Service Manual © ASM 6-25

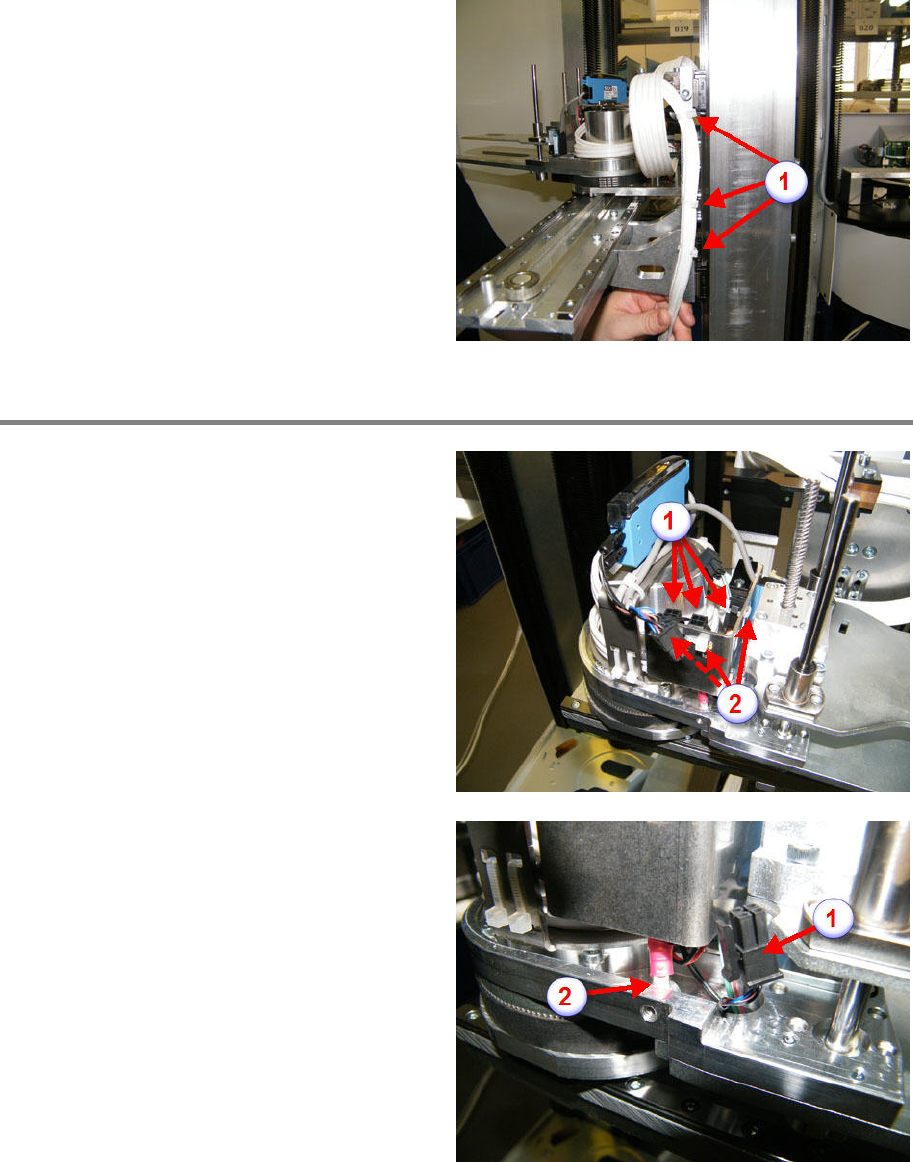

Cut off and remove the cable ties (1).
Remove cable from gripper
Remove the three connectors (1).
Cut off the three cable ties and remove them (2).
Remove the connector (1).
Loosen and remove the shield screw (2)
Z Axis 00197973-10 / 02 , 2016
6-26 © ASM SIPLACE Mat. Tower Storage Service Manual

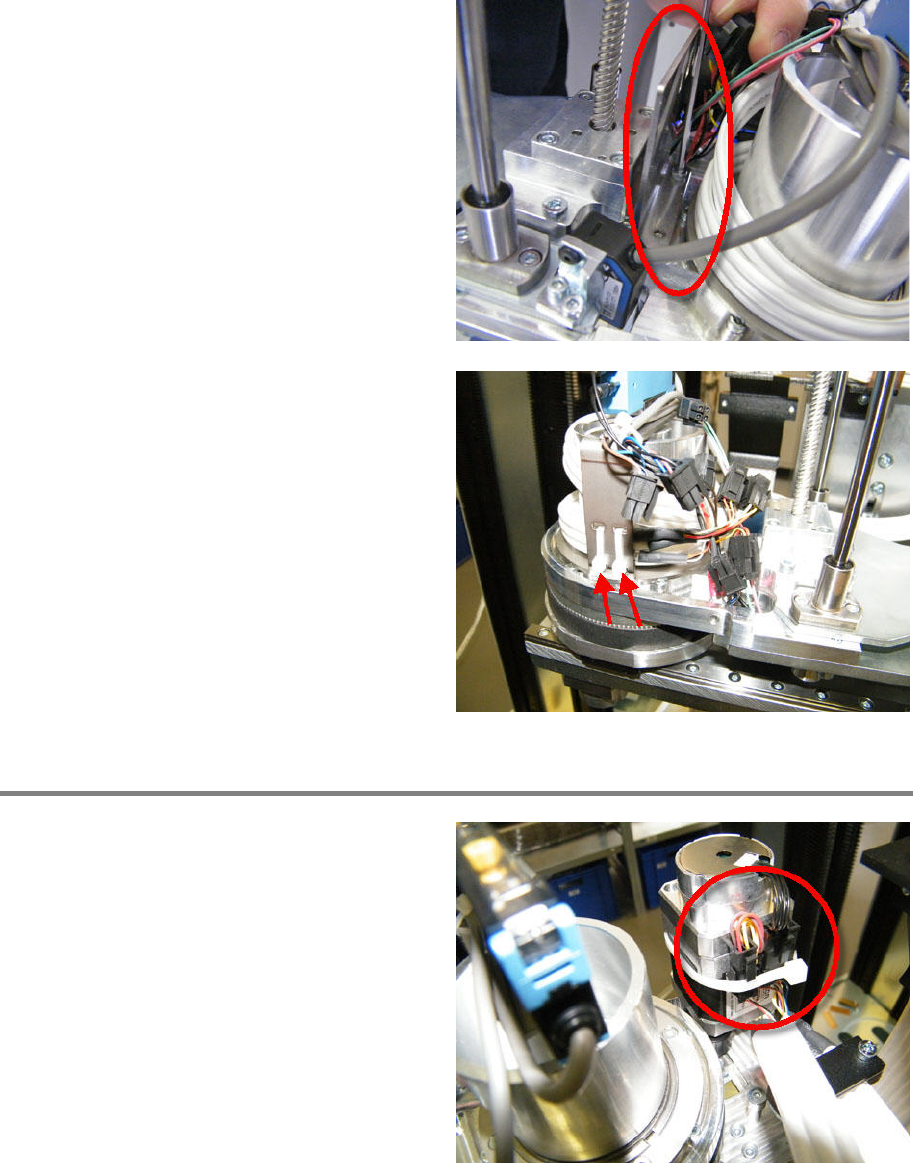

Loosen and remove the two fixing screws of the
sheet metal.
Remove the sheet metal.
Cut off and remove the cable ties.
Slip out the cable (three loops).
Remove cable from R motor
Cut off the cable tie and remove it.
Remove the three connectors.
Loosen and rem
ove the shield screw.
