Gripper 00197973-10 / 02 , 2016
7-10 © ASM SIPLACE Mat. Tower Storage Service Manual
7.2.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Allen key nr. 2, 2.5, 3 and 6
Small side cutter
Belt tension meter (frequency range min-max: 20 Hz - 450 Hz), e.g. Sonic Tension
Meter / Gates Corporation Denver, Colorado
Auxiliary
Material:
Cable ties
Spare parts:
03124537
-01, tooth belt GT3 2MGT
Time needed
Schedule around 30 minutes for this task.
7.2.3 Prerequisites
For a safe and efficient maintenance, the following prerequisites have to be fulfilled:
Personnel:
• Any work with or at the equipment must be carried out by skilled and
trained personnel in accordance with the locally applicable
regulations.
• Inform all involved persons regarding the currently running
maintenance works.
Machine loading:
• All stored items must be unloaded in advance.
Machine operating
condition:
• Shut down
00197973-10 / 02 , 2016 Gripper
SIPLACE Mat. Tower Storage Service Manual © ASM 7-11
Main electrical
power:
• Equipment disconnected from power supply system. The Main Switch
(switched off) locked by means of a padlock to secure the main switch
against unintentional switching on.
Compressed air /
Nitrogen (if used):
• Equipment disconnected from compressed air or nitrogen supply.
Access:
• Open both doors of the machine.
• Pull the Z axis towards you.
• Pull the gripper up (is a bit hard because the Z motor has a break) so
you have better access.
7.2.4 Exchange steps

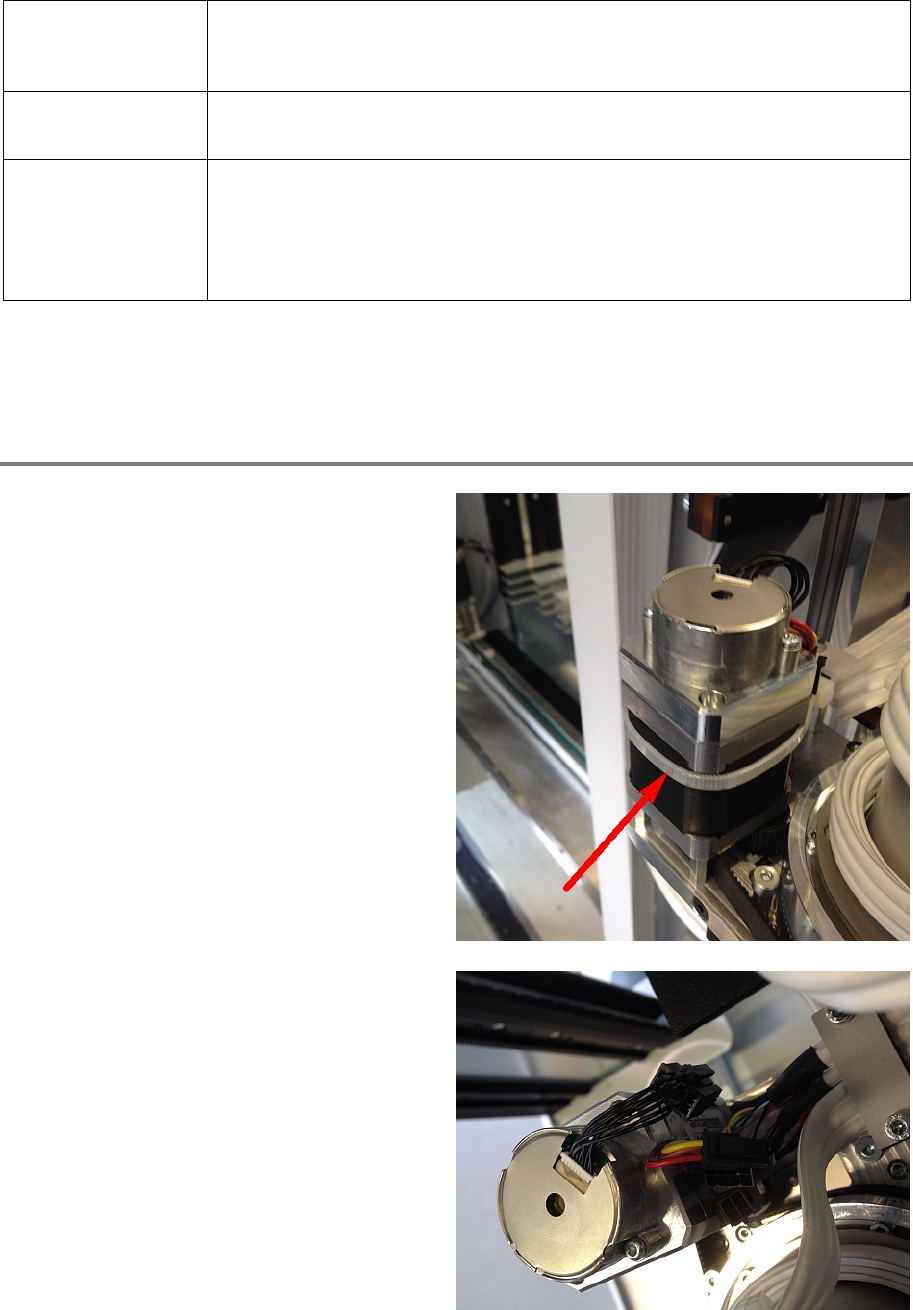

Step 1
Cut the cable tie.
Disconnect all cables.
Gripper 00197973-10 / 02 , 2016
7-12 © ASM SIPLACE Mat. Tower Storage Service Manual
Remove the three screws on the underside of
the X axis and take out the motor.
Step 2
Remove the four screws below the white
transfer cables.
Safely hold the gripper with
one hand and
remove the fixation screw.
