Portal 00197973-10 / 02 , 2016
8-8 © ASM SIPLACE Mat. Tower Storage Service Manual

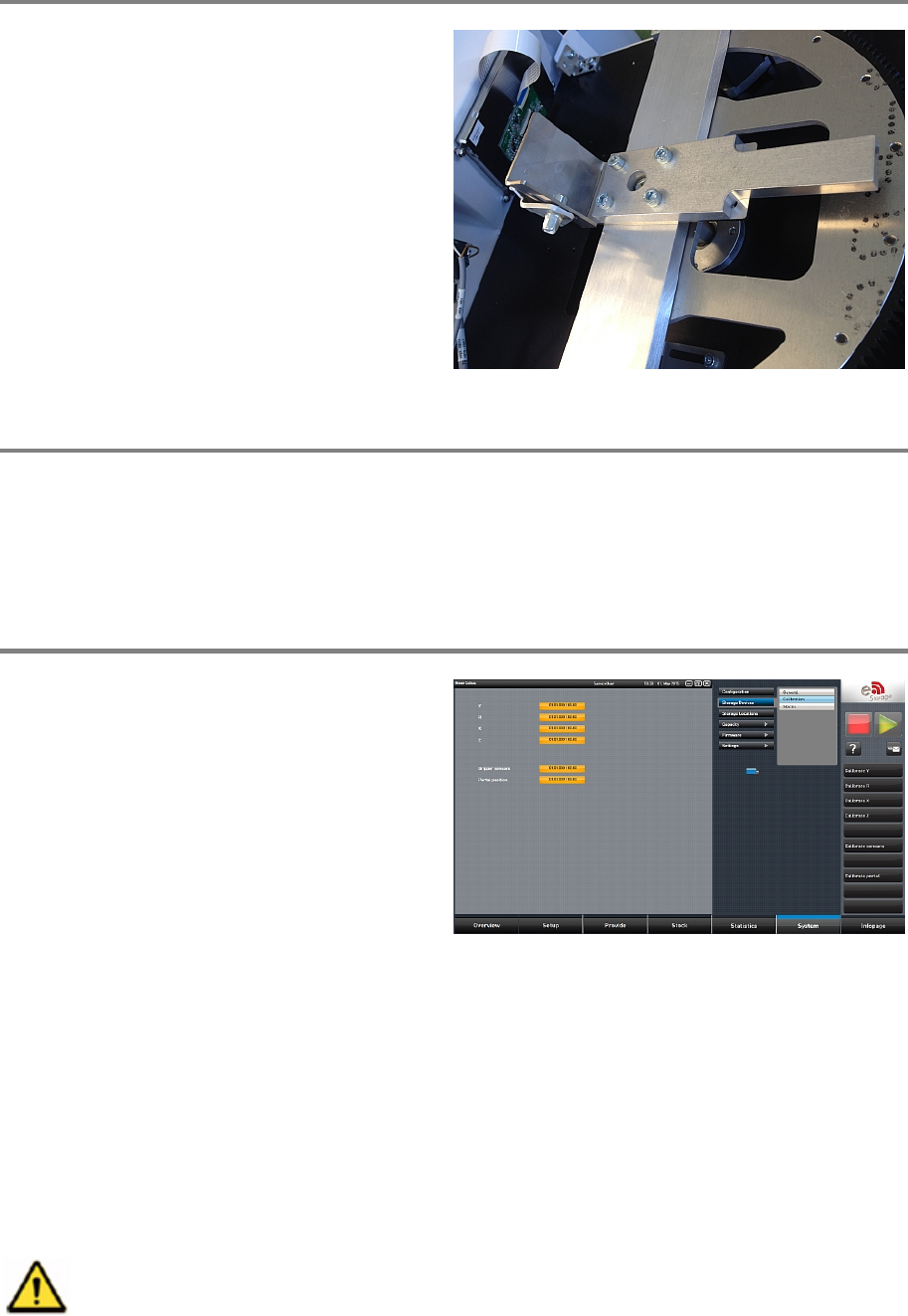

Step 2
Put the calibration tool on top of the holder. The
narrow part looking in direction to the inside of
the machine.
Tighten the longer sc
rews (M5 x 16mm).
Step 3
Remove all tools and close the doors of the machine.
Plug in the power connector and switch on the machine.
Initialize the machine by means of the software.
Step 4
In the software, in
System - Storage Devices/Units
select the appropriate machine in the table and
press
Load.
Go into the submenu
Calibration, press the
softkey
Calibrate Sensors and follow the
instructions given by the software.
8.3 PM-L54P Portal Open/Close Sensor
8.3.1 Introduction
This modification instruction describes how to change the open/close door sensor on SIPLACE
Material Tower.
Spare part number: 03124522-01
Before starting t
he maintenance, read the Safety instructions carefully.
00197973-10 / 02 , 2016 Portal
SIPLACE Mat. Tower Storage Service Manual © ASM 8-9

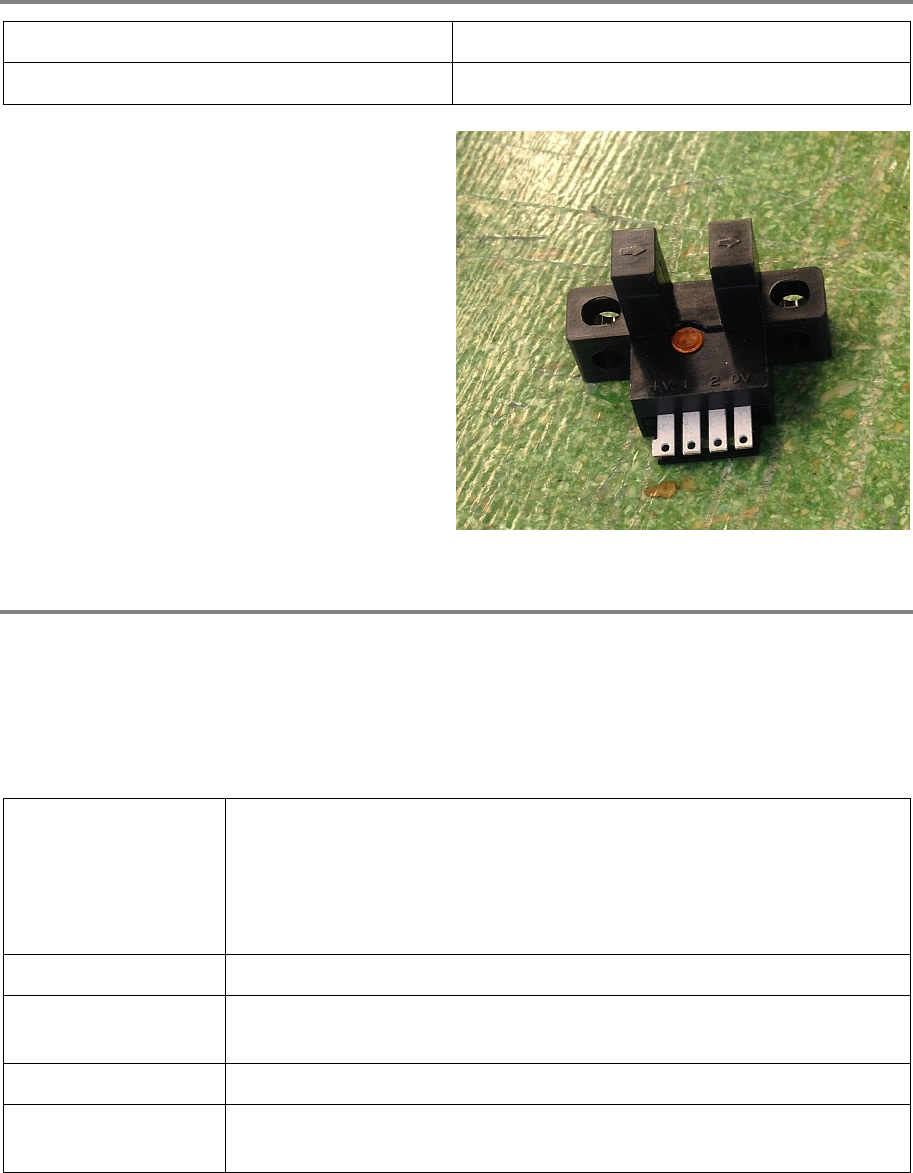

8.3.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Allen key Nr. 2, 2.5
Auxiliary Material: none
Spare parts:
03124522
-01, door open/close sensor
Time needed
Schedule around 10 minutes for this task.
8.3.3 Prerequisites
For a safe and efficient maintenance, the following prerequisites have to be fulfilled:
Personnel:
• Any work with or at the equipment must be carried out by skilled
and trained personnel in accordance with the locally applicable
regulations.
• Inform all involved persons regarding the currently running
maintenance works.
Machine loading:
• NO item must be unloaded.
Machine operating
condition:
• Shut down
Main electrical power:
• The Main Switch must be switched off.
Compressed air /
Nitrogen (if used):
• Equipment disconnected from compressed air or nitrogen supply.
Portal 00197973-10 / 02 , 2016
8-10 © ASM SIPLACE Mat. Tower Storage Service Manual
Access:
• Open the maintenance door on the right side. If the Z axis is not on
the rear, softly push it to the rear to gain access to the portal.
8.3.4 Exchange steps

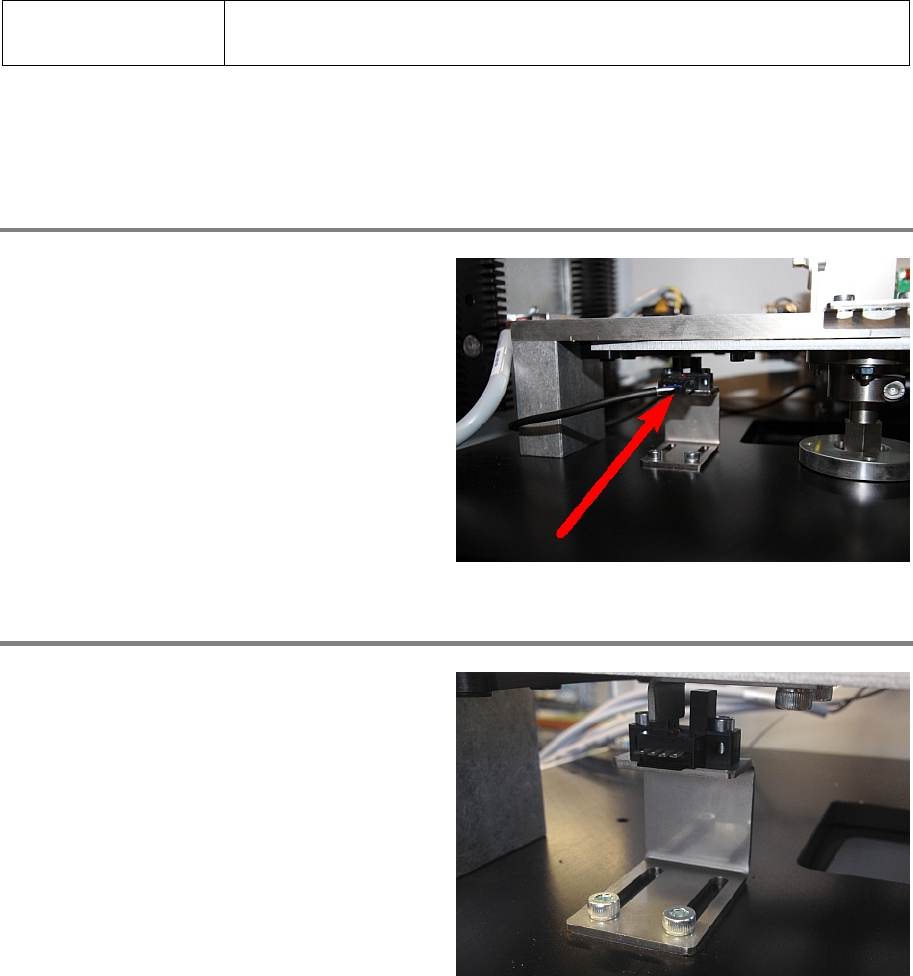

Step 1
Unplug the electrical connection of the sensor.
Step 2
Remove the two screws and the whole sensor
holder.
