0019797 3 - 10 / 02 , 2016 Portal SIPLACE Mat. Towe r St ora ge Serv ice Manual © ASM 8- 11 Step 3 Exchange the old s ensor with a ne w one. Step 4 Mount the sensor h o lder o n its place and p lug the electrical c onnec…
Portal 00197973-10 / 02 , 2016
8-10 © ASM SIPLACE Mat. Tower Storage Service Manual
Access:
• Open the maintenance door on the right side. If the Z axis is not on
the rear, softly push it to the rear to gain access to the portal.
8.3.4 Exchange steps
Step 1
Unplug the electrical connection of the sensor.
Step 2
Remove the two screws and the whole sensor
holder.
00197973-10 / 02 , 2016 Portal
SIPLACE Mat. Tower Storage Service Manual © ASM 8-11

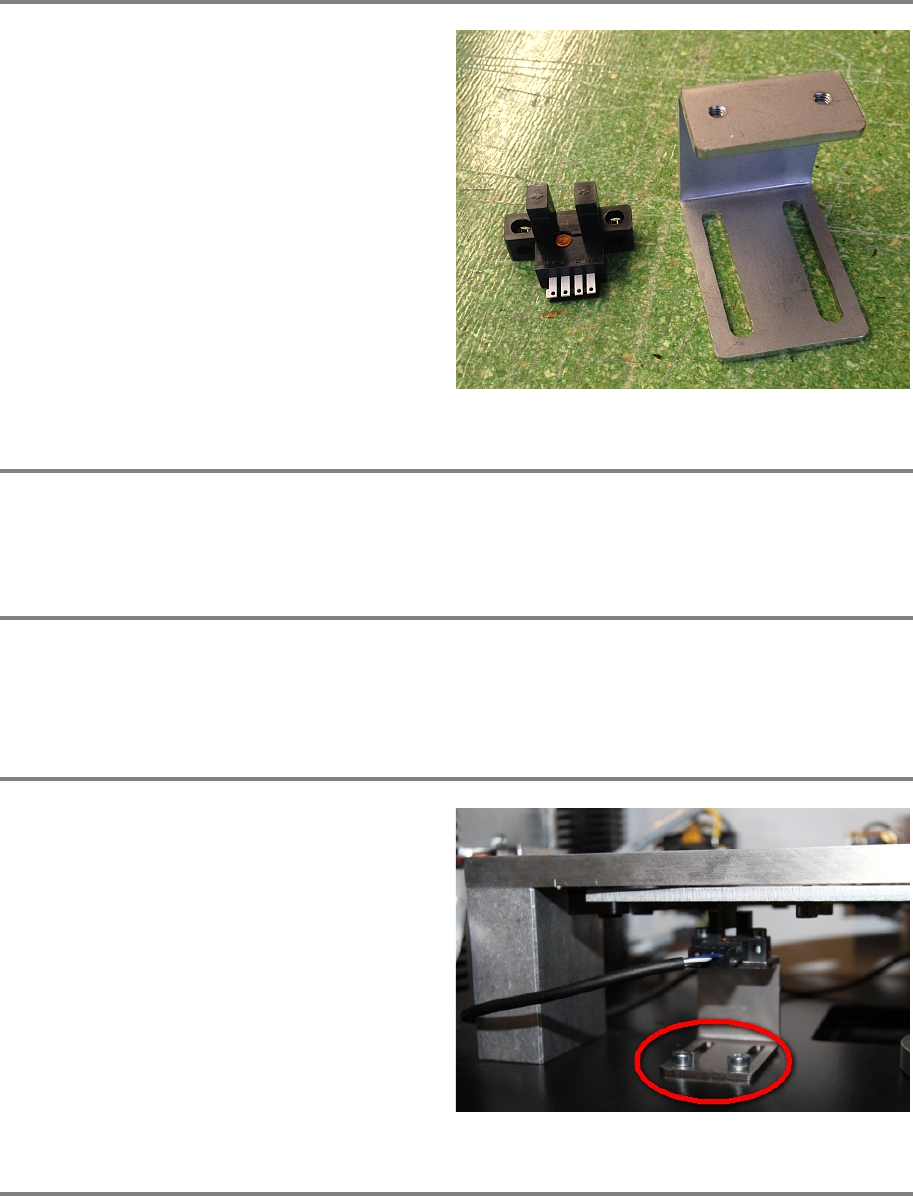

Step 3
Exchange the old sensor with a new one.
Step 4
Mount the sensor holder on its place and plug the electrical connectors as described in step 2 and
1.
Step 5
Plug in the power connector and switch on the machine.
Assure that noone is manipulating the software whilst you are inside the machine.
Step 6
Setup the position of the sensor that following
conditions are fulfilled:
Fully open the portal door. The red LED must be
on, meaning the sensor is activated.
Fully close the portal door. The red LED must be
of, meaning the senso
r is deactivated.
Step 7
Remove all tools and close the doors of the machine.
Connect the compressed air supply.
Initialize the machine by means of the software.
Portal 00197973-10 / 02 , 2016
8-12 © ASM SIPLACE Mat. Tower Storage Service Manual
8.4 Reel Detector
8.4.1 Introduction
This modification instruction describes how to change the reel detection sensor on SIPLACE
Material Tower.

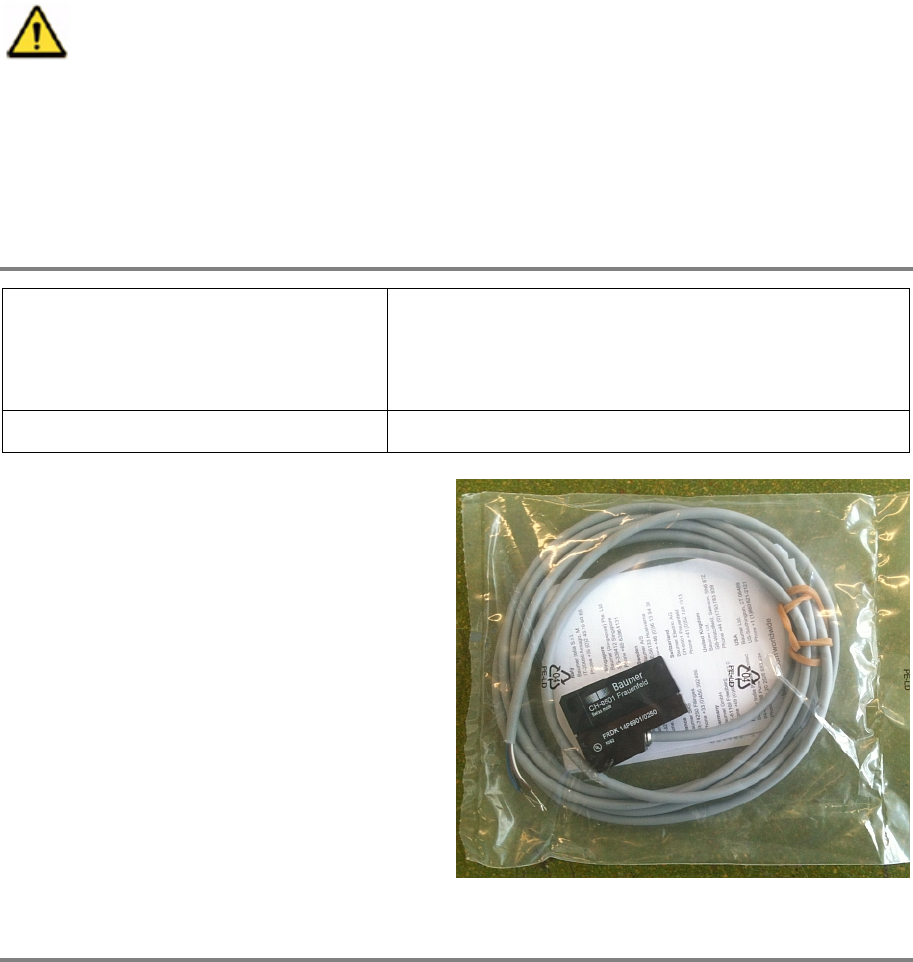

Spare part number: 03126680-01
Before starting the maintenance, read the Safety instructions carefully.
8.4.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Allen key Nr. 3 and 4
Slotted screw driver nr. 1
Side cutter
Auxiliary Material: Cable ties
Spare parts:
03126680
-01, reel detection sensor
Time needed
Schedule around 30 minutes for this task.
