Portal 00197973-10 / 02 , 2016

8-14 © ASM SIPLACE Mat. Tower Storage Service Manual

8.4.4 Exchange steps

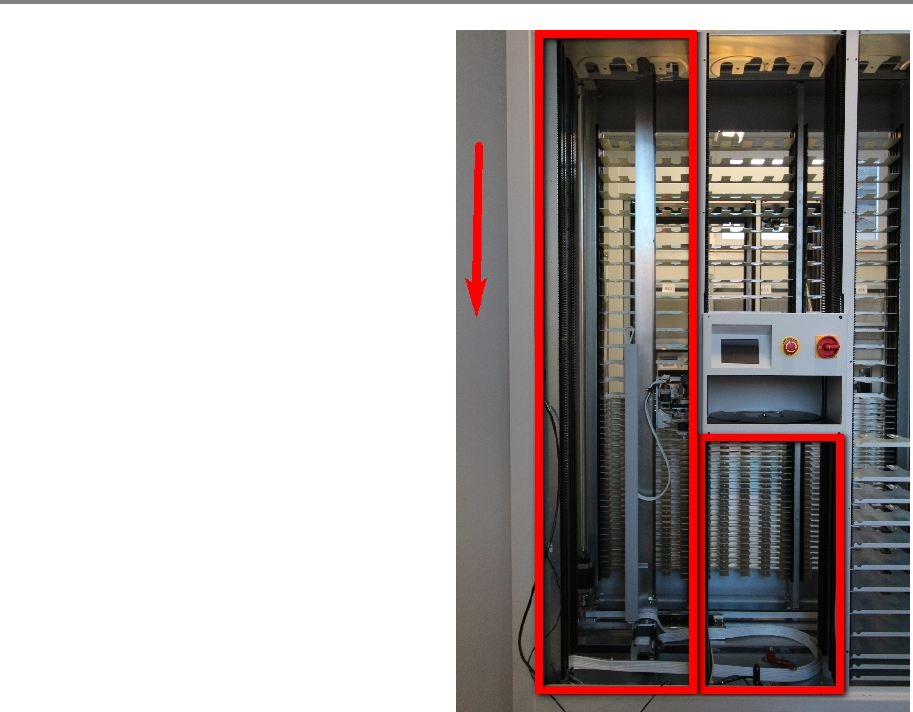

Cover removal

Remove the following covers:

• Tall cover left side of the portal

• Small cover below the portal

• Open both maintenance doors

00197973-10 / 02 , 2016 Portal

SIPLACE Mat. Tower Storage Service Manual © ASM 8-15

Step 1

Remove the reel support plate by loosening the

two screws.

Step 2

Remove the distance holder (marked green).

Remove the four screws holding the sensor

fixation.

From below the portal, carefully take out the

sensor fixation.

Portal 00197973-10 / 02 , 2016

Step 3

Remove the inner part by loosening the two

screws.

Put the inner part away, for example put it on a

shelf below the portal.

Step 4

Cut the s

ensor cable.
