0019797 3 - 10 / 02 , 2016 Portal SIPLACE Mat. Towe r St ora ge Serv ice Manual © ASM 8- 31 Mount the new load c ell Fix the cable by u sing the cable tie (1). Let the load ce ll hang down very c arefully, withou t damag…
Portal 00197973-10 / 02 , 2016
8-30 © ASM SIPLACE Mat. Tower Storage Service Manual
Hold the load cell until all four screws are
removed.
Let the load cell hang down very carefully,
without damaging the cables.
Loosen and remov
e the both screws as shown
on picture.
Remove the load cell fixture.
Cut off the cable tie (1).
Loosen and remove ground screw (2).
Unplug th
e data cables (3).
Remove the load cell.
00197973-10 / 02 , 2016 Portal
SIPLACE Mat. Tower Storage Service Manual © ASM 8-31
Mount the new load cell
Fix the cable by using the cable tie (1).
Let the load cell hang down very carefully,
without damaging the cable.
Fix the ground cable by using the ground screw
(2).
Plug in the data cables (3).
Mount the load cell to the load cell fixture
Make sure the load cell is positioned in the
middle of the fixture and in parallel to it (see
pictur
e).
Tighten the both screws as shown on picture.
Portal 00197973-10 / 02 , 2016
8-32 © ASM SIPLACE Mat. Tower Storage Service Manual

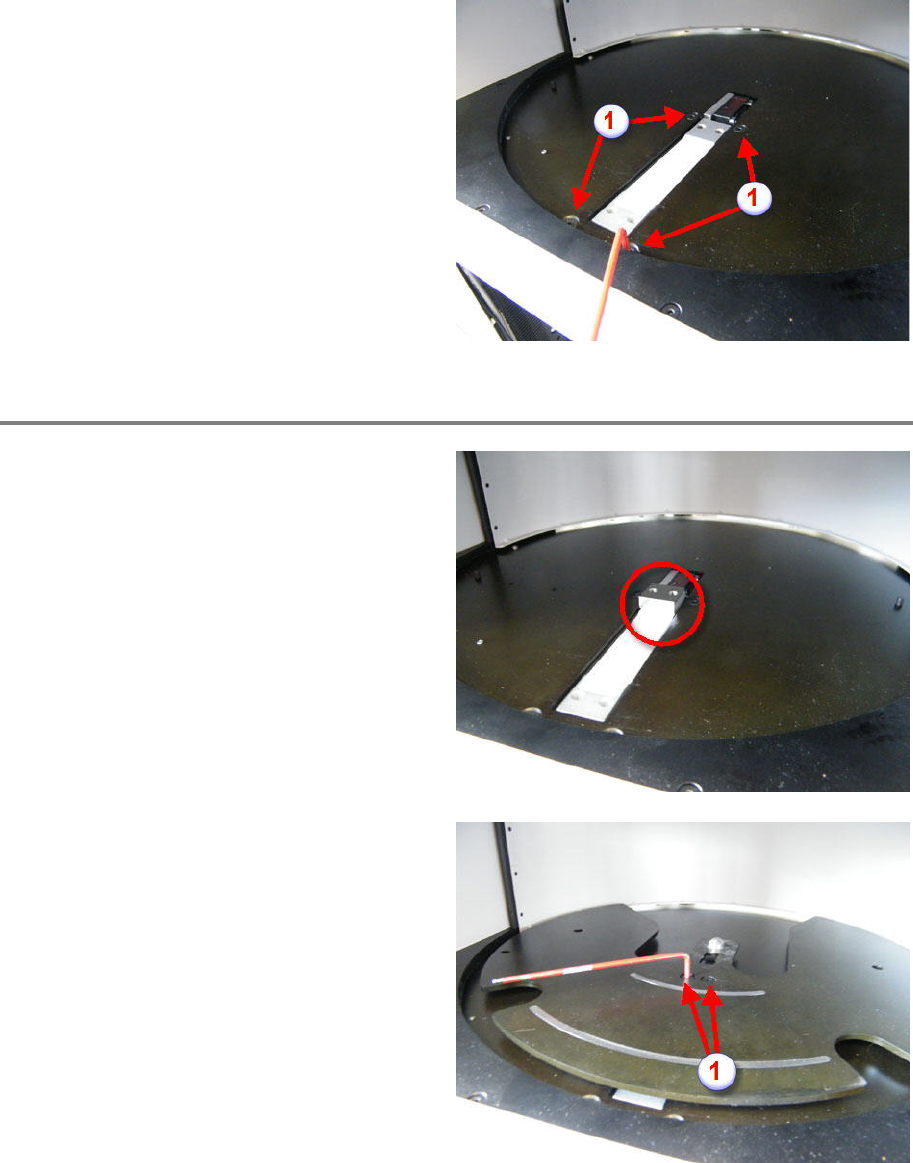

From below, insert the load cell.
Screw in and tighten the four fixing screws (see
picture).
Re-mount the Measuring Plate
Inser
t the spacer block.
Apply the measuring plate on top of the spacer
block.
Screw in the two fixing screws (1) but do not
tighten them.
