Portal 00197 973 - 10 / 02 , 2016 8- 34 © ASM SIPLACE Mat. Tower St ora ge Ser vice Manu al • Ruler By means of the r u ler, che ck parallelism of side cover and meas uring plate edge (see p icture). Finalize exchang e s…
00197973-10 / 02 , 2016 Portal
SIPLACE Mat. Tower Storage Service Manual © ASM 8-33

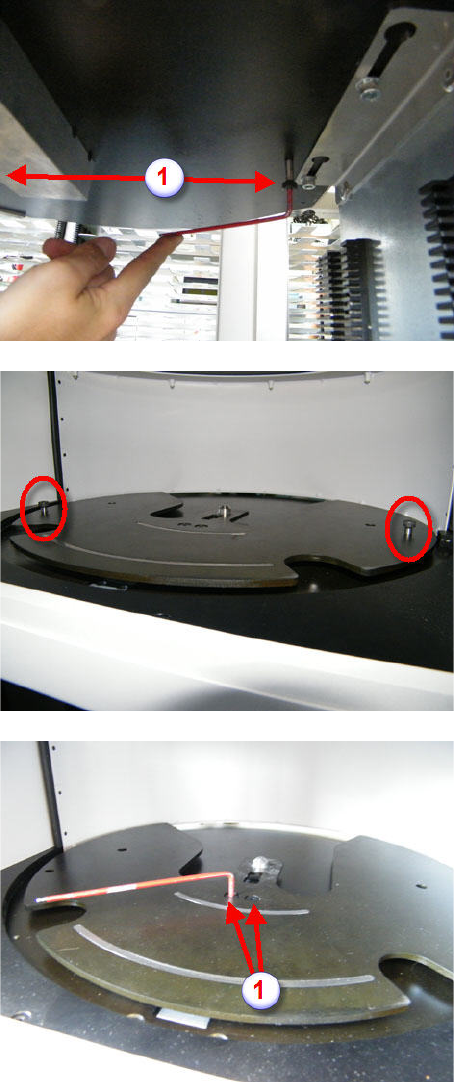

Loosen and remove the two mounting shoulder
screws (1)
Screw in the two mounting shoulder screws to
bring the measuring plate into the correct
position.
Tighten the two fixing s
crews (1)
Remove the two mounting shoulder screws.
Return the two mounting shoulder screws to
their origin position.
Portal 00197973-10 / 02 , 2016
8-34 © ASM SIPLACE Mat. Tower Storage Service Manual

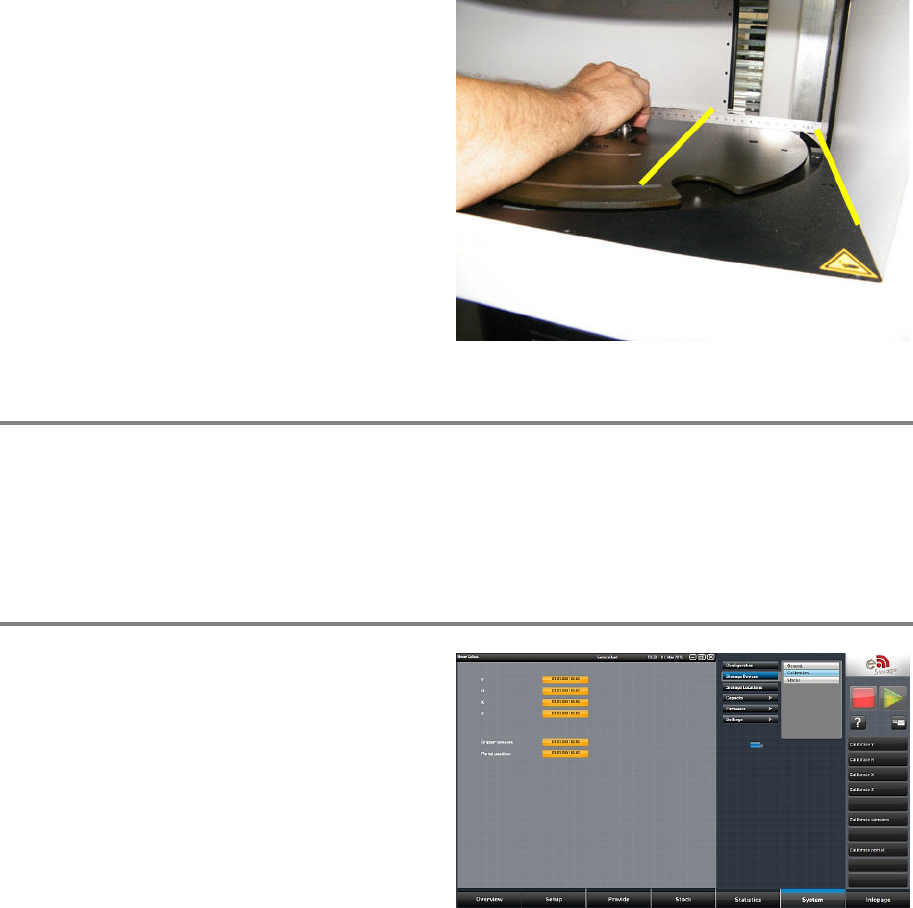

• Ruler
By means of the ruler, check parallelism of side
cover and measuring plate edge (see picture).
Finalize exchange steps
Remove all tools, attach all previously removed covers and close the doors of the machine.
Plug in the power connector and switch on the machine.
Initialize the machine by means of the software.
Calibration
In the software, in
System - Storage
Devices
/Units
select the appropriate machine in
the table and press
Load.
In tab
Calibration press Calibrate portal and
follow the instructions given by the software.
00197973-10 / 02 , 2016
SIPLACE Mat. Tower Storage Service Manual © ASM 9-1
9 Electronics

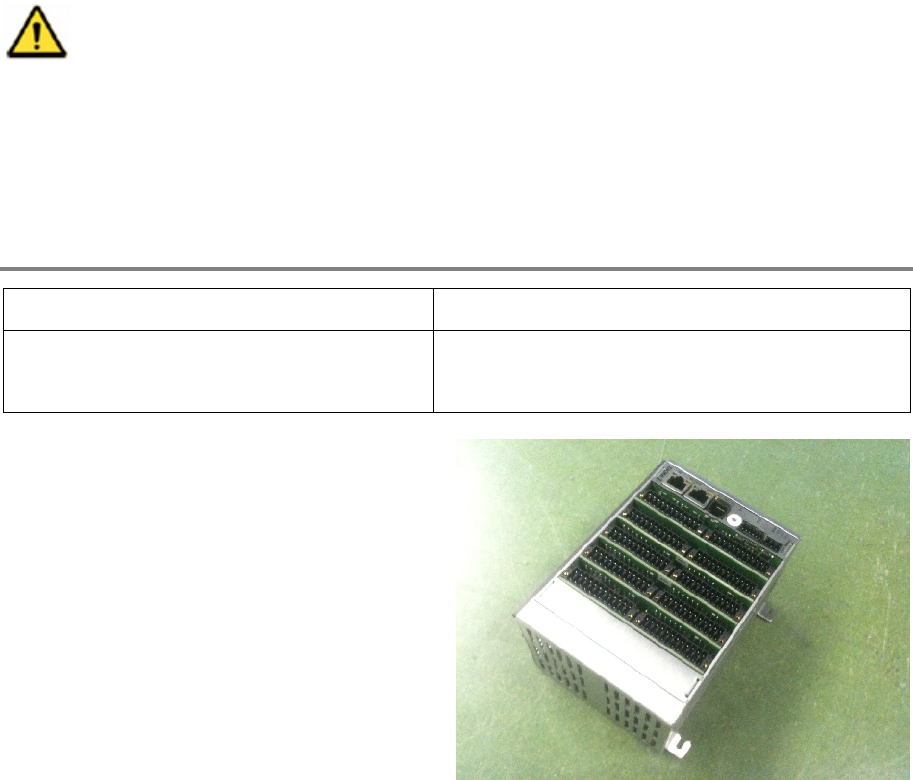

9.1 INDEL Controller
9.1.1 Introduction
This modification instruction describes how to change the Indel Controller on SIPLACE Material
Tower.
Spare part number: 03124520-01
Before starting the maintenance, read the Safety instructions carefully.
9.1.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Allen key nr. 3
Auxiliary Material: Sticky tape or labels
Pen
Spare parts:
03124520
-01, Indel Controller
