Electronics 00197973-10 / 02 , 2016

9-4 © ASM SIPLACE Mat. Tower Storage Service Manual

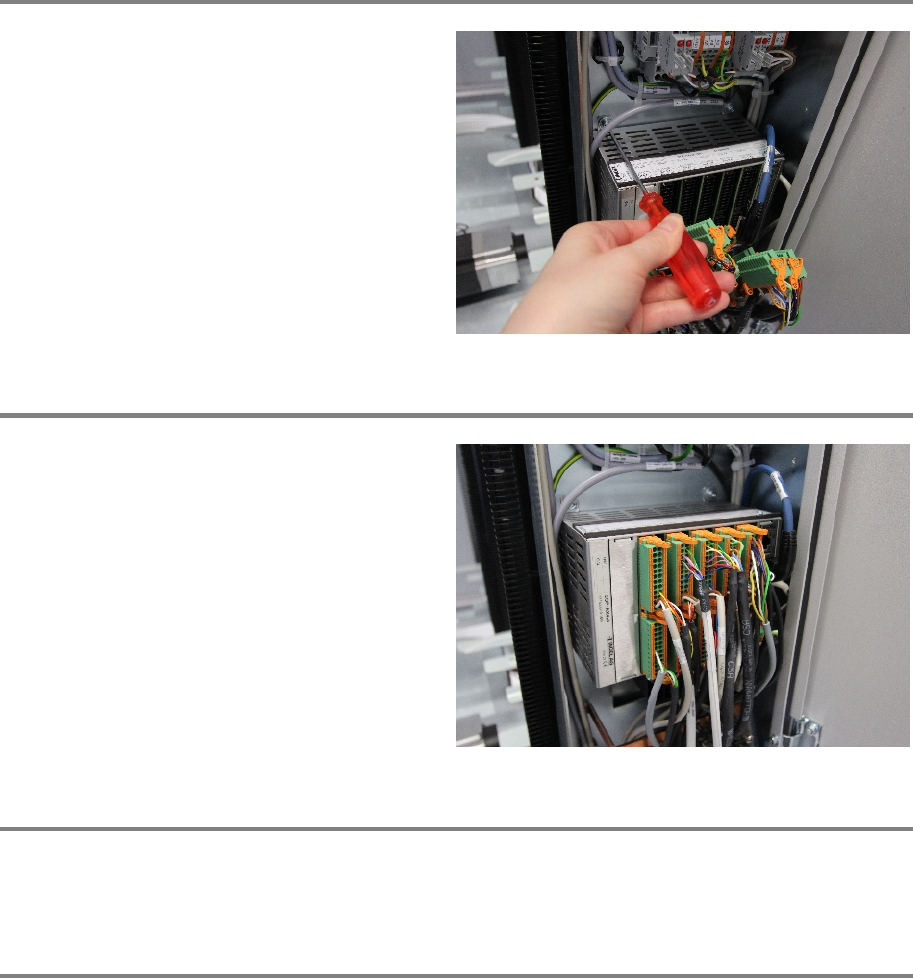

Step 3

Reinsert the new Indel controller. And fix the

screws.

Step 4

Fasten all cable connection in their correct slots.

Step 5

Remove all tools, close the door of the machine, plug in the power connector and switch on the

machine.

Step 6

In the software, in System - Storage Devices/Units select the appropriate machine in the table

and press Load.

In tab Axes calibration calibrate the Y axis and follow the instructions given by the software.

00197973-10 / 02 , 2016 Electronics

SIPLACE Mat. Tower Storage Service Manual © ASM 9-5

9.2 24V Supply

9.2.1 Introduction

This modification instruction describes how to change the 24V power supply on SIPLACE Material

Tower.

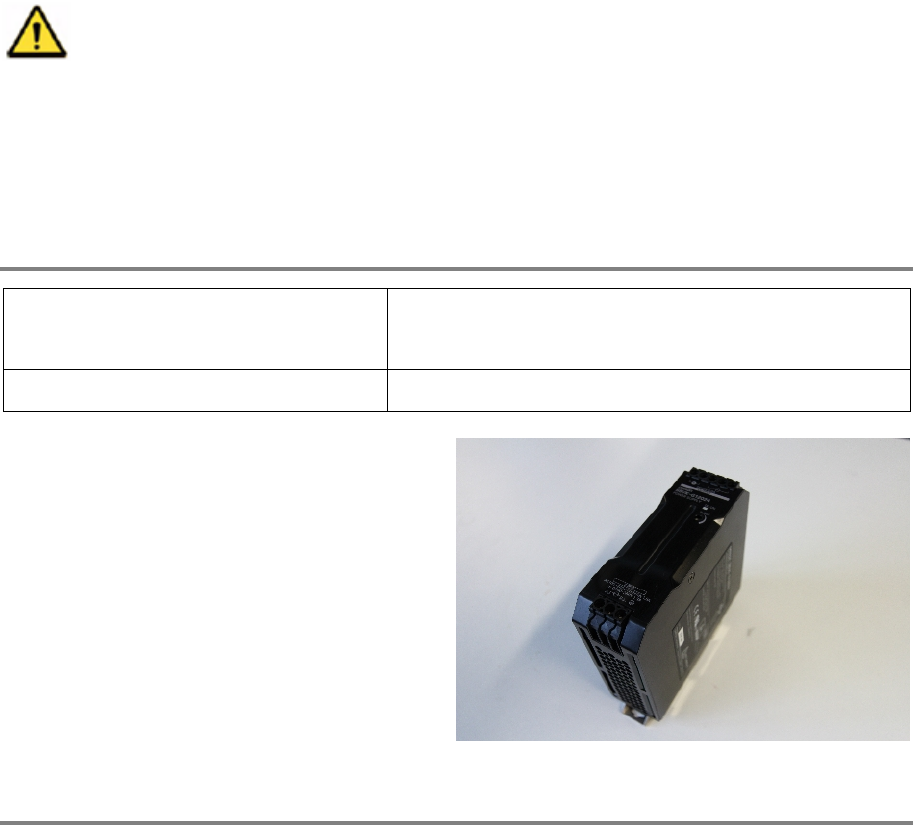

Spare part number: 03124517-01

Before starting the maintenance, read the Safety instructions carefully.

9.2.2 Tools, Material and Scheduling

For an effective and efficient maintenance, the following resources have to be provided:

Required Tools / Auxiliary Material / Spare parts

Tools: Slotted screw driver nr. 2

Voltmeter

Auxiliary Material: none

Spare parts:

03124517

-01, 24V power supply

Time needed

Schedule around 10 minutes for this task.

9.2.3 Prerequisites

For a safe and efficient maintenance, the following prerequisites have to be fulfilled:

Electronics 00197973-10 / 02 , 2016

9-6 © ASM SIPLACE Mat. Tower Storage Service Manual

Personnel:

• Any work with or at the equipment must be carried out by skilled and

trained personnel in accordance with the locally applicable

regulations.

• Inform all involved persons regarding the currently running

maintenance works.

Machine loading:

• Stored items do not have to be unloaded.

Machine operating

condition:

• Shut down

Main electrical power:

• Equipment disconnected from power supply system. Fully

disconnect the mains power cable and secure against

unintentional plugging.

Compressed air /

Nitrogen (if used):

• Equipment disconnected from nitrogen.

Access:

• Open the door on the left side of the machine.

• The electrical units are located in the bottom right corner.

9.2.4 Exchange steps

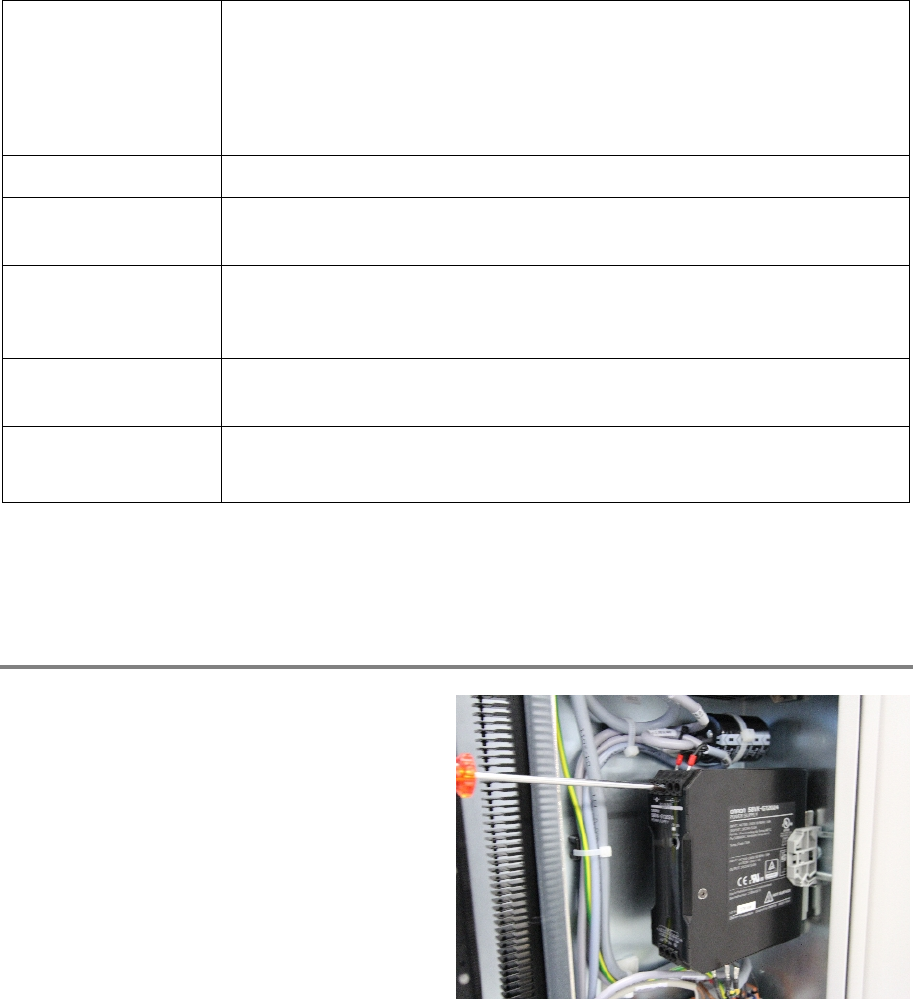

Step 1

Unscrew all cable connections on the top and

the bottom of the power supply.

Make sure to label the cables or mark their

proper slot in the power supply.
