SIPLACE Mat. Tower Storage Service Manual © ASM 11-1
11 Option Air Dryer
11.1 Retrofit Air Dryer Option
11.1.1 Introduction
This modification instruction describes how to install the complete Air Dryer Option on a SIPLACE
Material Tower at customer side.
Spare part number: 03124552-01
Before starting the maintenance, read the Safety instructions carefully.
11.1.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Side cutter (big and small)
Flat wrench 14, 19 and 33
Scissors
Pincer
Allen Key Set
Drilling machine
Thread cutter
Auxiliary Material: Cable Ties
Teflon tape
Option Air Dryer 00197973-10 / 02 , 2016
11-2 © ASM SIPLACE Mat. Tower Storage Service Manual
Spare parts:
03124552
-01, RETROFIT Air Dryer including:
• Membrane dryer
• Air Flow Limiter
• 4mm, 8mm and 15mm hose
• Possibly: Connection panel (if old panel
version without holes mounted)
• Through hole connectors for air
supplies/exhaustion
• Magnetic valve
• Control cable for magnetic valve
• Drain cover
• Sealing belts
• Humidity sensor
Time needed
Schedule around 2 hours for this task.
11.1.3 Prerequisites
For a safe and efficient maintenance, the following prerequisites have to be fulfilled:
Personnel:
• Any work with or at the equipment must be carried out by skilled and
trained personnel in accordance with the locally applicable
regulations.
• Inform all involved persons regarding the currently running
maintenance works.
Machine loading:
•
NO item must be unloaded.
Machine operating
condition:
• Shut down
Main electrical
power:
• Equipment disconnected from power supply system. The Main Switch
(switched off) locked by means of a padlock to secure the main switch
against unintentional switching on.
Compressed air /
Nitrogen (if used):
• Equipment disconnected from compressed air or nitrogen supply.
Access:
• Open the left side door of the machine, where the electrical unit and
the air dryer is located.
00197973-10 / 02 , 2016 Option Air Dryer
SIPLACE Mat. Tower Storage Service Manual © ASM 11-3
11.1.4 Exchange steps

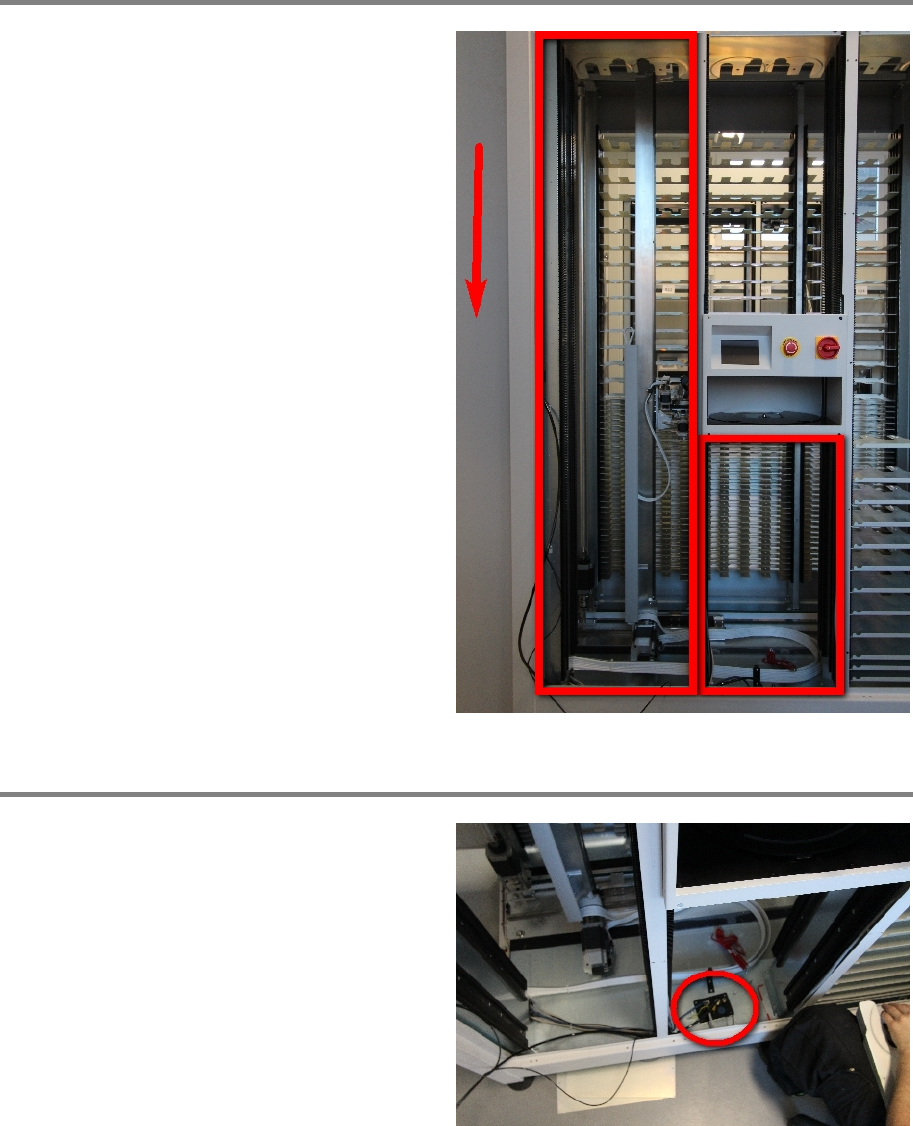

Cover removal
Remove the foll
owing covers to retrofit the air
dryer:
• Tall cover left side of the portal
• Small cover below the portal
• Open both maintenance doors
Step 1
Position of the connection plate is below the
portal.
It might be required to remove the few lower
shelves to gain comfortable access to the plate.
