Option Air Dryer 0019797 3 - 10 / 02 , 2016 11 -8 © ASM SIPLACE Mat. Tower St ora ge Ser vice Manu al Step 6 • PU Hose 4 mm • PU Hose 8 mm • PU Hose 15 mm Connect hoses as s howed on p icture. Step 7 Place hoses in d ire…
00197973-10 / 02 , 2016 Option Air Dryer
SIPLACE Mat. Tower Storage Service Manual © ASM 11-7

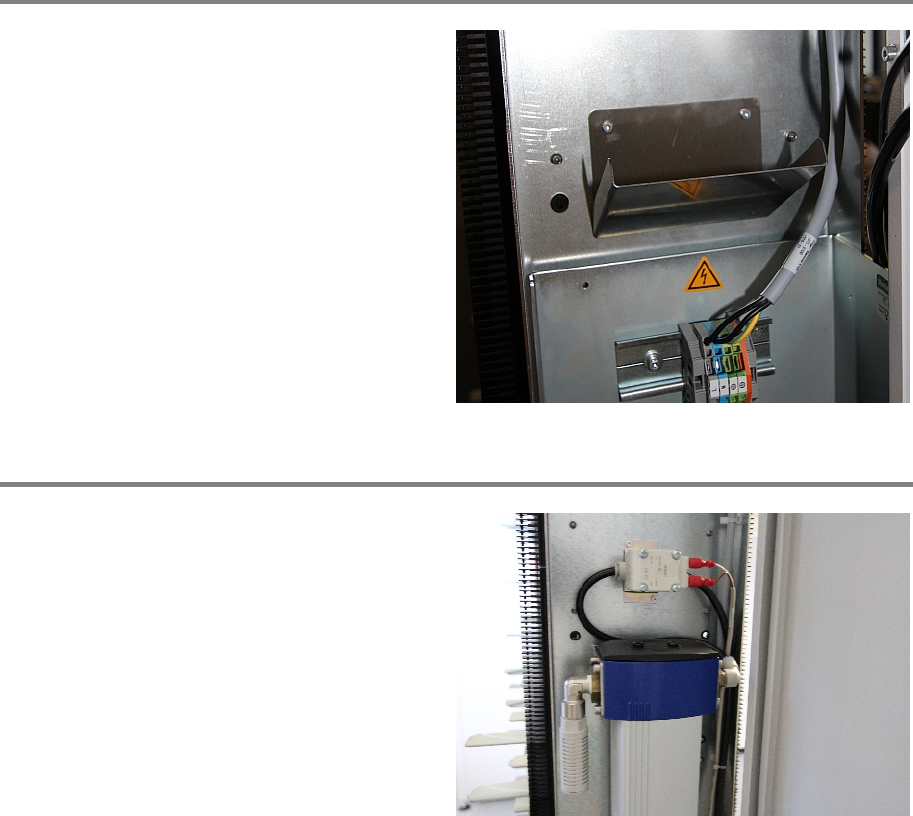

Step 4
Mount the drain cover below the air dryer. No
exact position is required.
If no holes are prepared. Drill 2.5mm holes and
use a 3mm th
read cutter.
ATTENTION: Make sure the screws are not
too long. At the back side they must not
overlap 2mm
Step 5
Mount the magnetic valve abo
ve the air dryer.
No exact position is required.
If no holes are prepared. Drill 2.5mm holes and
use a 3mm thread cutter.
ATTENTION: Make sure the screws are not
too long. At the back side they mustn't
overlap 2mm
Option Air Dryer 00197973-10 / 02 , 2016
11-8 © ASM SIPLACE Mat. Tower Storage Service Manual
Step 6
• PU Hose 4 mm
• PU Hose 8 mm
• PU Hose 15 mm
Connect hoses as showed on picture.
Step 7
Place hoses in direction to the electronics plate
as shown in the picture.
00197973-10 / 02 , 2016 Option Air Dryer
SIPLACE Mat. Tower Storage Service Manual © ASM 11-9
Step 8
Lead the hoses up at the side of the electric
plate. Use the existing holes to place cable tie
holders.
