Option Air Dryer 00197973-10 / 02 , 2016
11-14 © ASM SIPLACE Mat. Tower Storage Service Manual
Step 15
Remove all tools and close the doors of the machine.
Plug in the power connector, connect the compressed air supply and switch on the machine.
Initialize the machine by means of the software.
Step 16

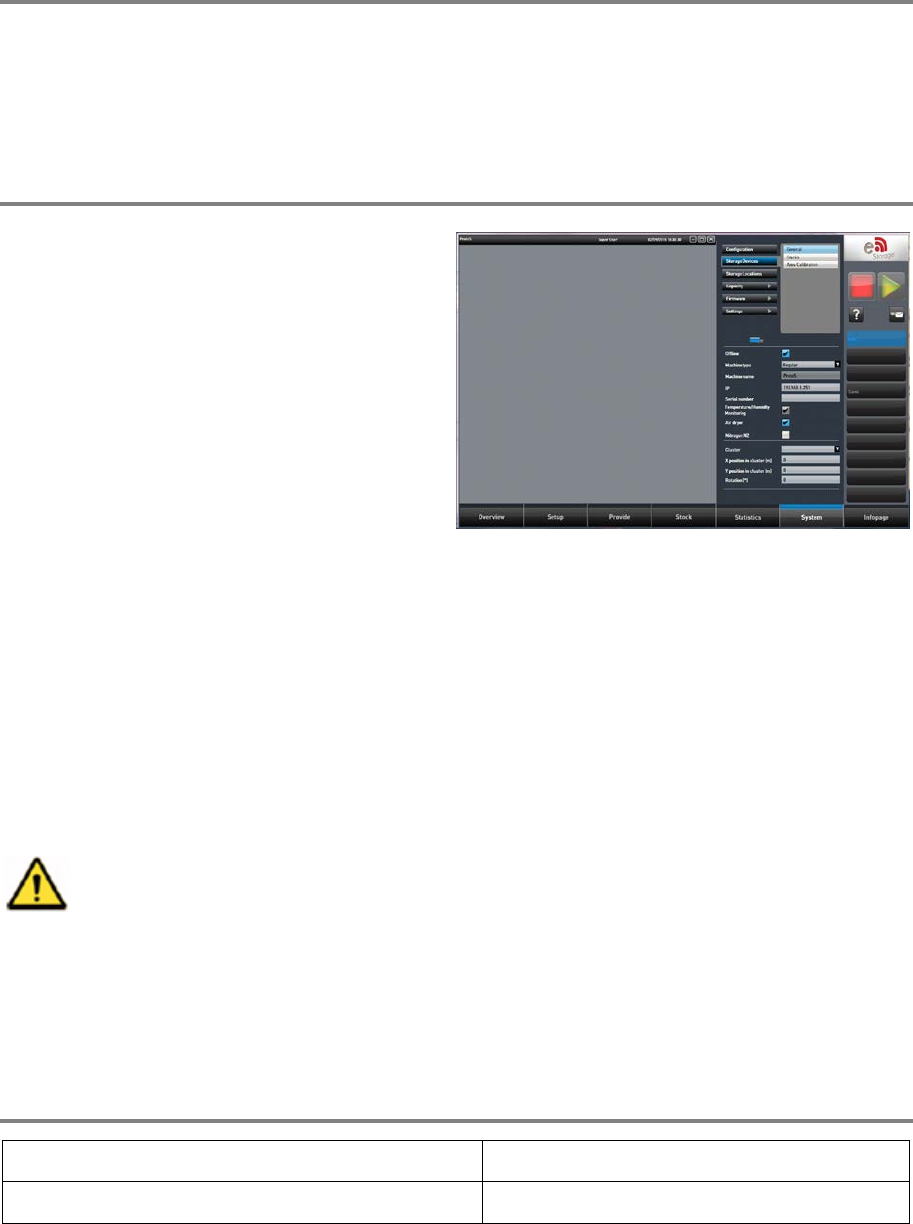

On the page
System - Storage Devices/Units,
load t
he according storage unit.
Press
Edit
Activate the two boxes for
Temperature/Humidity Monitoring
and Air
dryer
.
Re
-initialise the storage unit.
11.2 Substitute Magnetic Valve
11.2.1 Introduction
This modification instruction describes how to substitute the SMC magnetic valve VX250HY of the
Air Dryer Option on SIPLACE Material Tower with the valve VP342K.

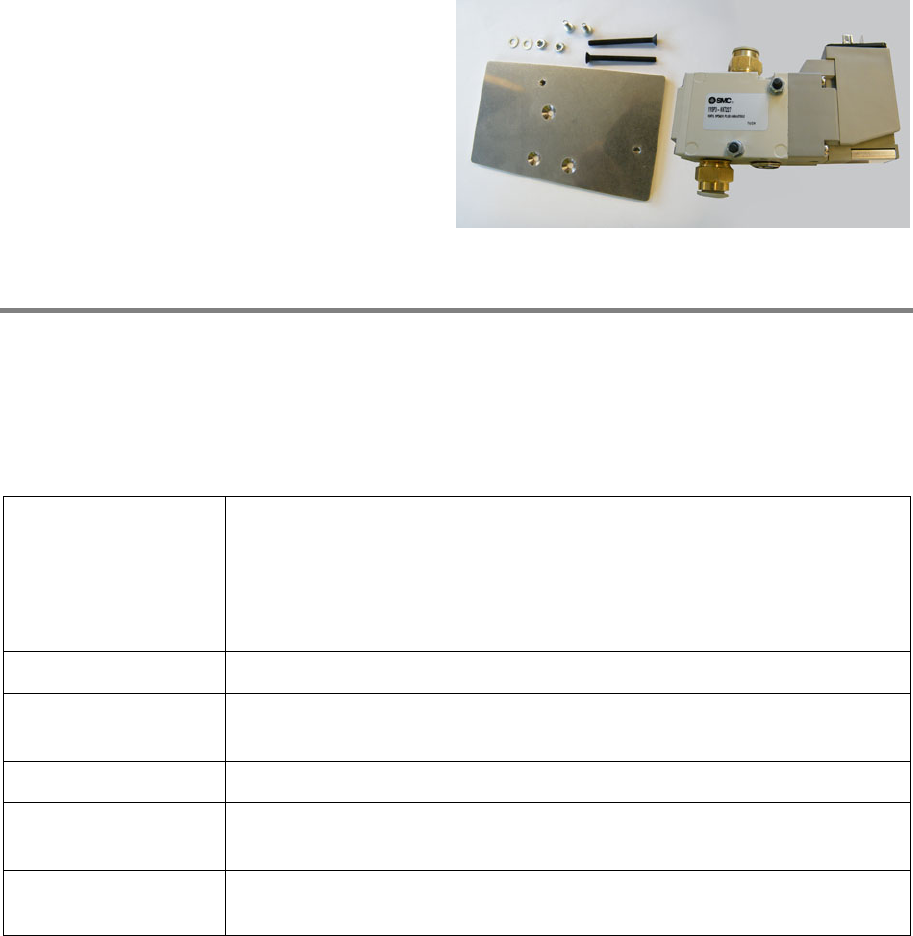

Spare part number: 03124531-01
Before starting the maintenance, read the Safety instructions carefully.
11.2.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Allen key nr. 2.5
Auxiliary Material: none
00197973-10 / 02 , 2016 Option Air Dryer
SIPLACE Mat. Tower Storage Service Manual © ASM 11-15
Spare parts:
03124531
-01, Sol valve kit for TH option
Time needed
Schedule around 10 minutes for this task.
11.2.3 Prerequisites
For a safe and efficient maintenance, the following prerequisites have to be fulfilled:
Personnel:
• Any work with or at the equipment must be carried out by skilled
and trained personnel in accordance with the locally applicable
regulations.
• Inform all involved persons regarding the currently running
maintenance works.
Machine loading:
• NO item must be unloaded.
Machine operating
condition:
• Shut down
Main electrical power:
•
The Main Switch must be switched off.
Compressed air /
Nitrogen (if used):
• Equipment disconnected from compressed air or nitrogen supply.
Access:
• Open the left side door of the machine, where the electrical unit and
the air dryer is located.
Option Air Dryer 00197973-10 / 02 , 2016
11-16 © ASM SIPLACE Mat. Tower Storage Service Manual
11.2.4 Substitute steps

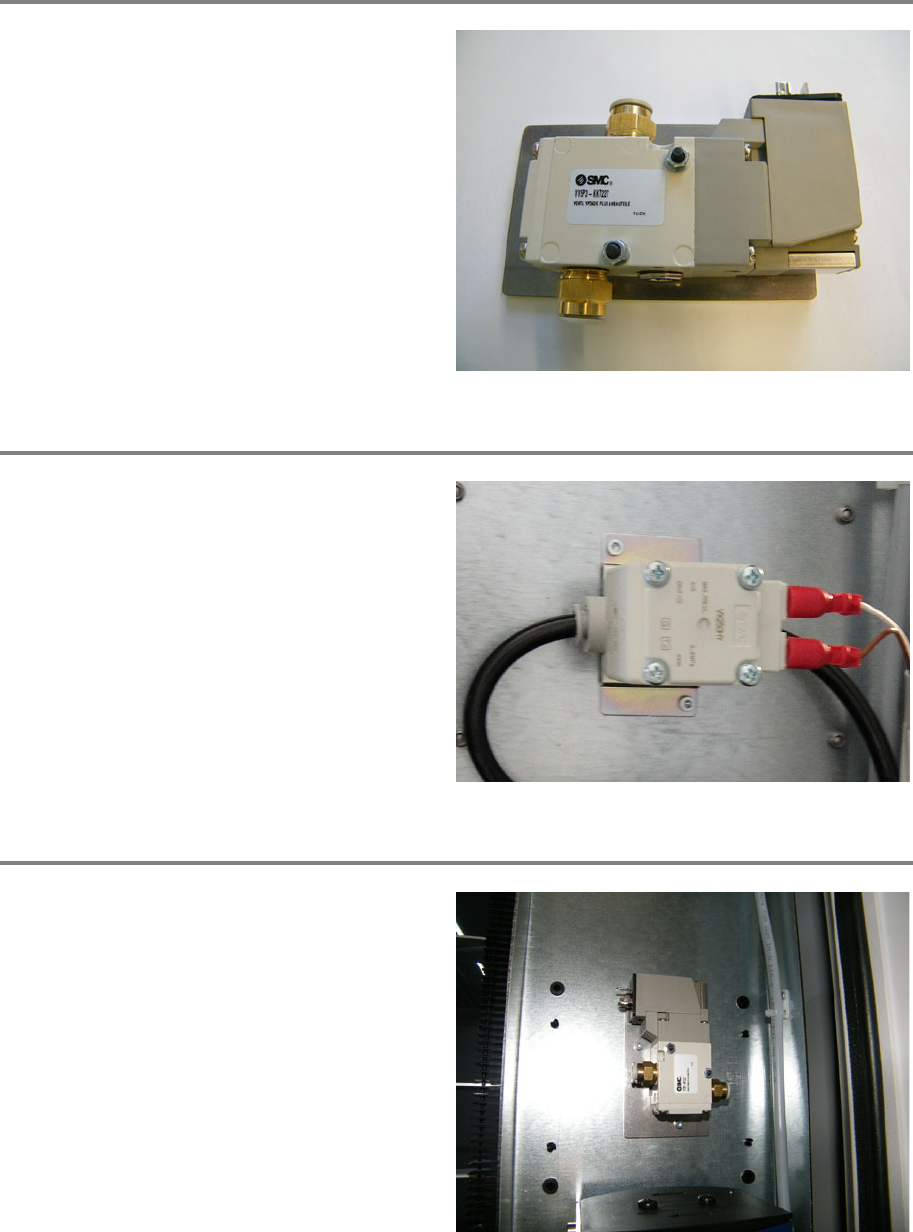

Prepare Valve and Adapter Plate
Mount the valve to the adapter plate according
to the picture by using the two black screws,
washers and nu
ts.
Remove Sources and existing Valve
Remove the input and output compressed air
hoses.
Unplug the electrical connection.
Remove the two screws holding the magnetic
valve and remove the existing valve.
Attach new Valve
Attach the new valve with adapter plate
accor
ding to the picture.
Use the same screw holes as the old valve and
fasten the adapter plate with the two enclosed
short screws.
