Service Door Monitoring 00197973-10 / 02 , 2016
12-10 © ASM SIPLACE Mat. Tower Storage Service Manual
Rout the cable all along the 230 V cable and fix it
by using cable ties together with the 230 V cable
on the existing pads (1).
Going to the left side of the machine, route the
cable of the left door sensor through the
bushing. Make sure the cable has a loop after the
bushing for the length compensation (opening
and closing the door).
Route both sensor cables along the 230 V cable
and use the existing pads to fix the cables. Pay
attention to a proper cabling for better
recognition of right and left sensor cable
afterwards or mark the cables at the end.
Check the position of the edge protector (1), so
that the cables are protected
properly.
During preparation of the electrical cabinet, the
sensor cables can be put away as shown on
picture.
00197973-10 / 02 , 2016 Service Door Monitoring
SIPLACE Mat. Tower Storage Service Manual © ASM 12-11

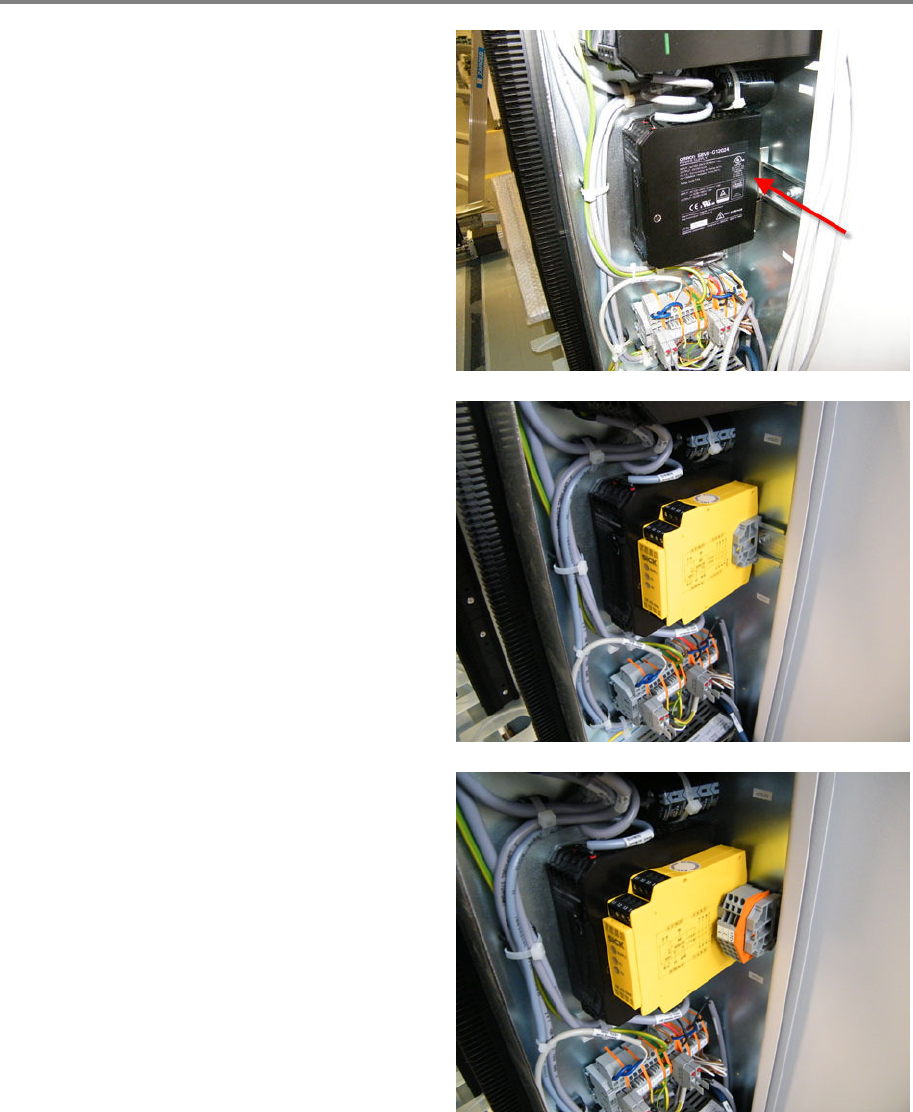

Preparation of electrical cabinet
Move the 24 V power supply (T1), completely to
the left.
Mount the safety relay (SR1) to the profile rail,
close to the 24 V supply. Mount a distance
holder right to the safety relay.
Mount the cable terminal (X800) to the profile
rail, together with a distance holder.
Service Door Monitoring 00197973-10 / 02 , 2016
12-12 © ASM SIPLACE Mat. Tower Storage Service Manual

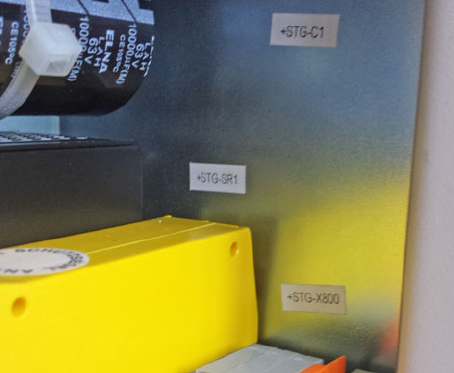

Move the component labeling accordingly and
attach the provided labels.
