0019797 3 - 10 / 02 , 2016 General SIPLACE Mat. Towe r St ora ge Serv ice Manual © ASM 2-5 Fasten the five screws that are retaining the belt tensioner. Fasten the screw of the coupling usi ng a torque key adjusted on 2.…
General 00197973-10 / 02 , 2016
2-4 © ASM SIPLACE Mat. Tower Storage Service Manual

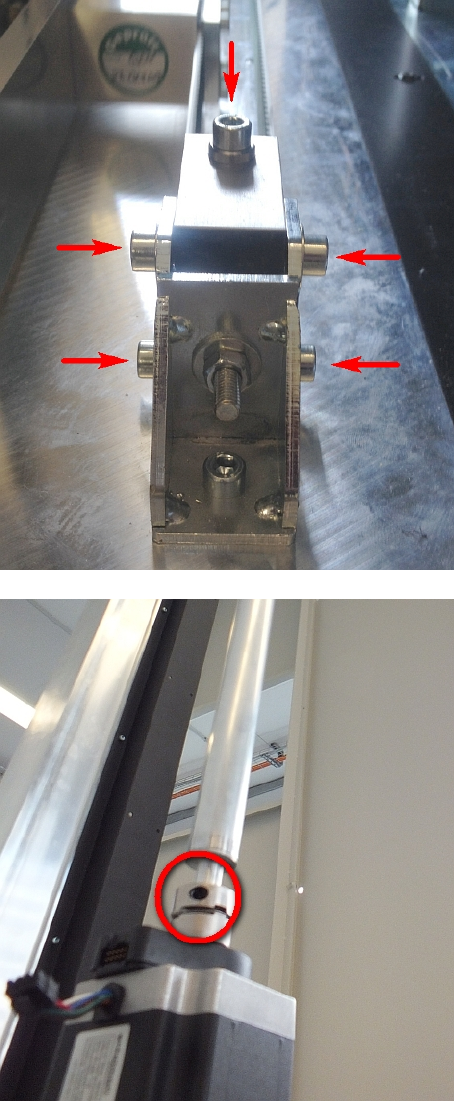

Loose
n the five screws that are retaining the belt
tensioner.

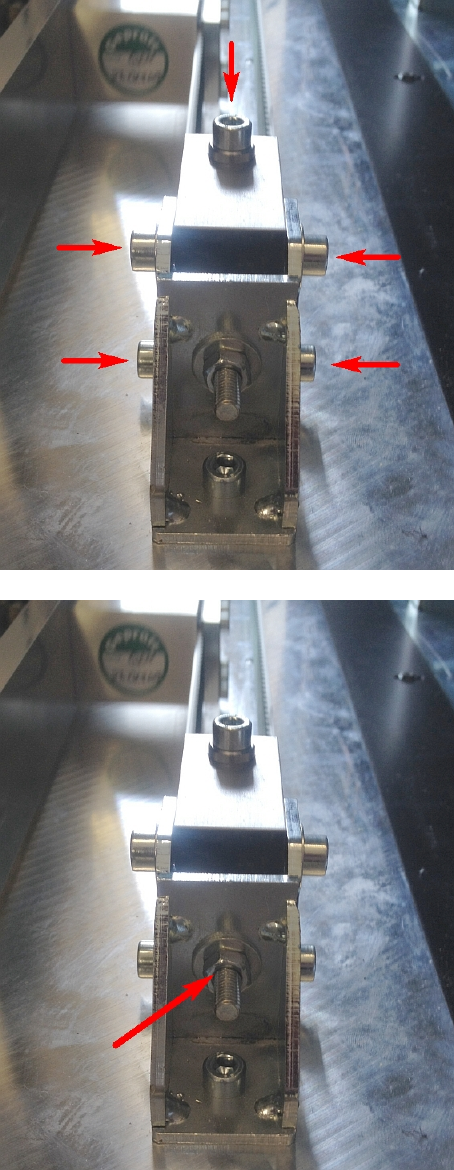

Turn the belt tension nut accordingly to achieve
the correct tension.
00197973-10 / 02 , 2016 General
SIPLACE Mat. Tower Storage Service Manual © ASM 2-5
Fasten the five screws that are retaining the belt
tensioner.
Fasten the screw of the coupling using a torque
key adjusted on 2.5 Newton.
General 00197973-10 / 02 , 2016
2-6 © ASM SIPLACE Mat. Tower Storage Service Manual
Y Belt
Required tension for a used Y belt is
115 Hz ± 2
Hz
. Be aware that a new belt is setup to 120 Hz.
Measure the belt tension with the gr
ipper being
on the far left side. Measure in the middle of the
rear belt.
If the tension is outside the limits, proceed
with the setup steps below, else go to the
next axis.

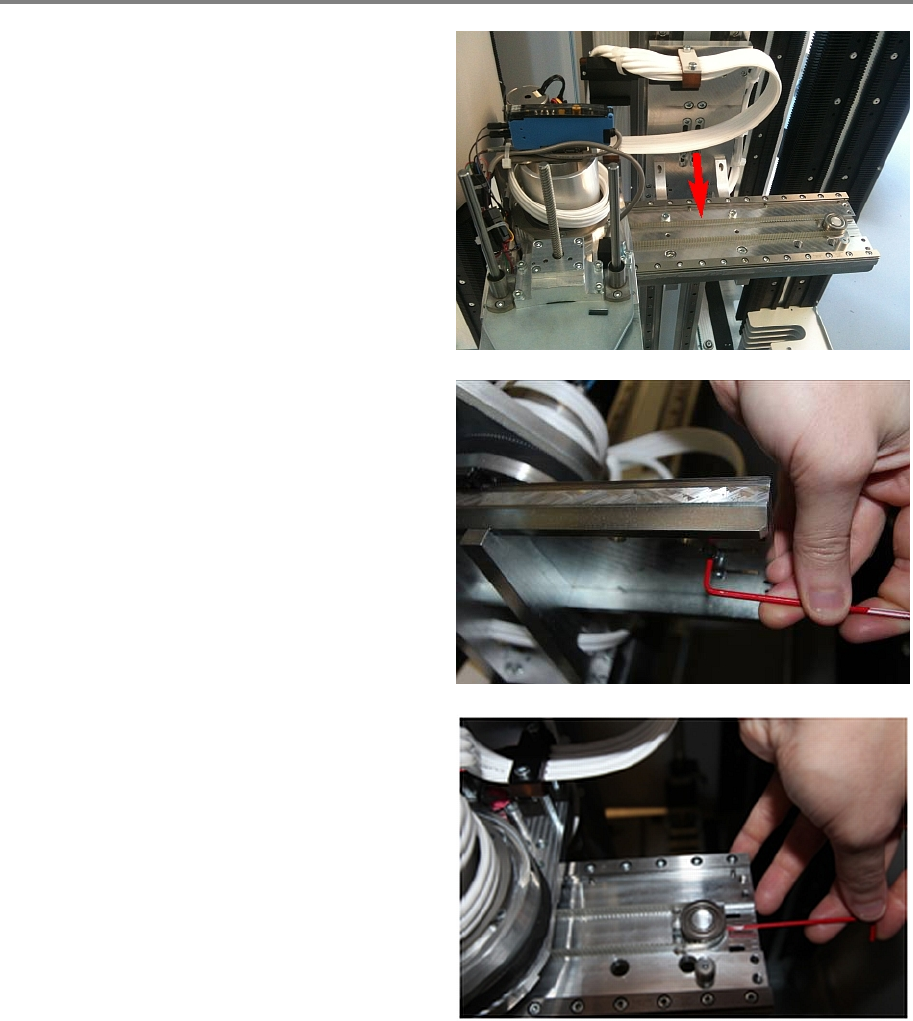

At the right side of the Y axis, slightly loose the
screws of the pulley.
Setup the tension by turning the screw of
the
pulley.
