12.1.7 Drilling Jig
Drilling Jig for doors without locking mechanism
Cut out the jig and fold it. Fix it at the doors by using a tape.
Service Door Monitoring 00197973-10 / 02 , 2016
12-28 © ASM SIPLACE Mat. Tower Storage Service Manual

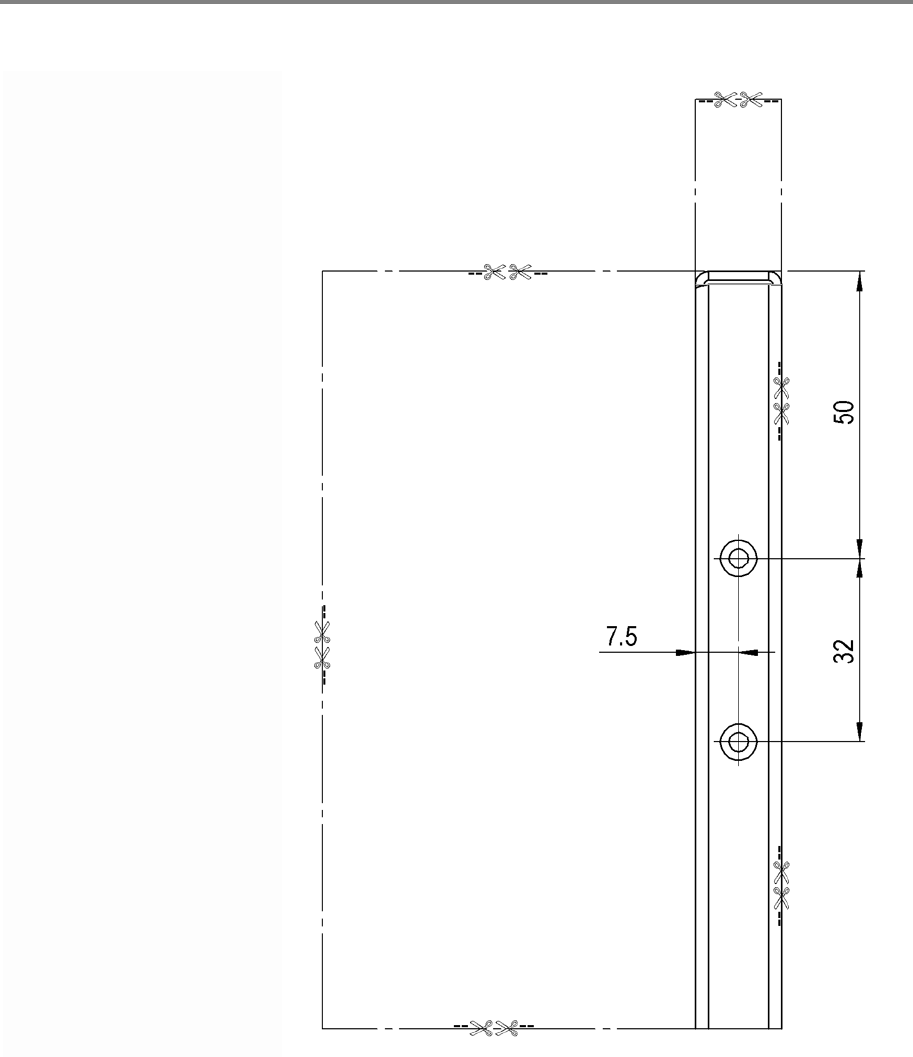

Drilling Jig for doors with locking mechanism
Cut out the jig and fold it. Fix it at the doors by using a tape.
