X Axis 0019797 3 - 10 / 02 , 2016 4-2 © ASM SIPLACE Mat. Tower S tor ag e Service Ma nual
00197973-10 / 02 , 2016
SIPLACE Mat. Tower Storage Service Manual © ASM 4-1

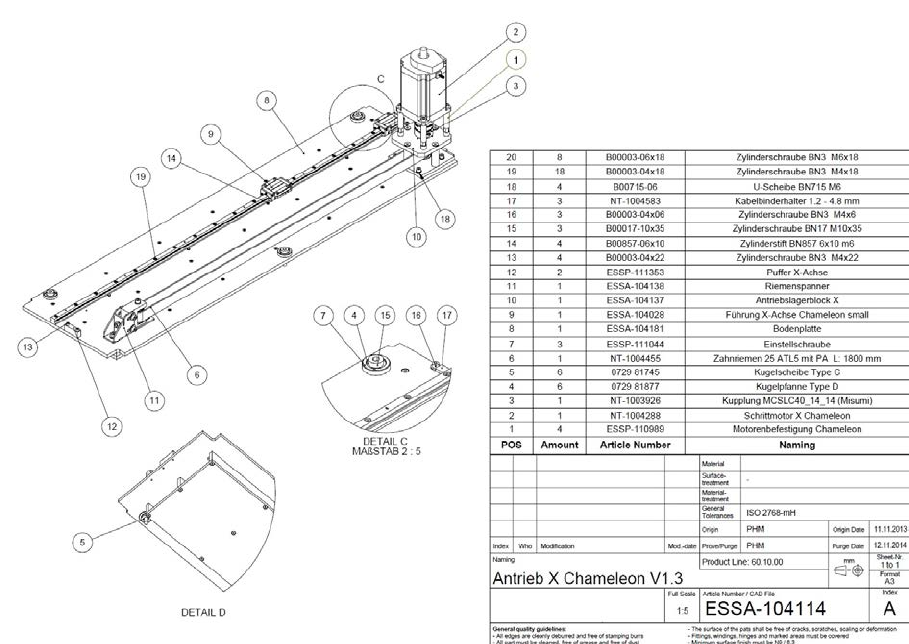

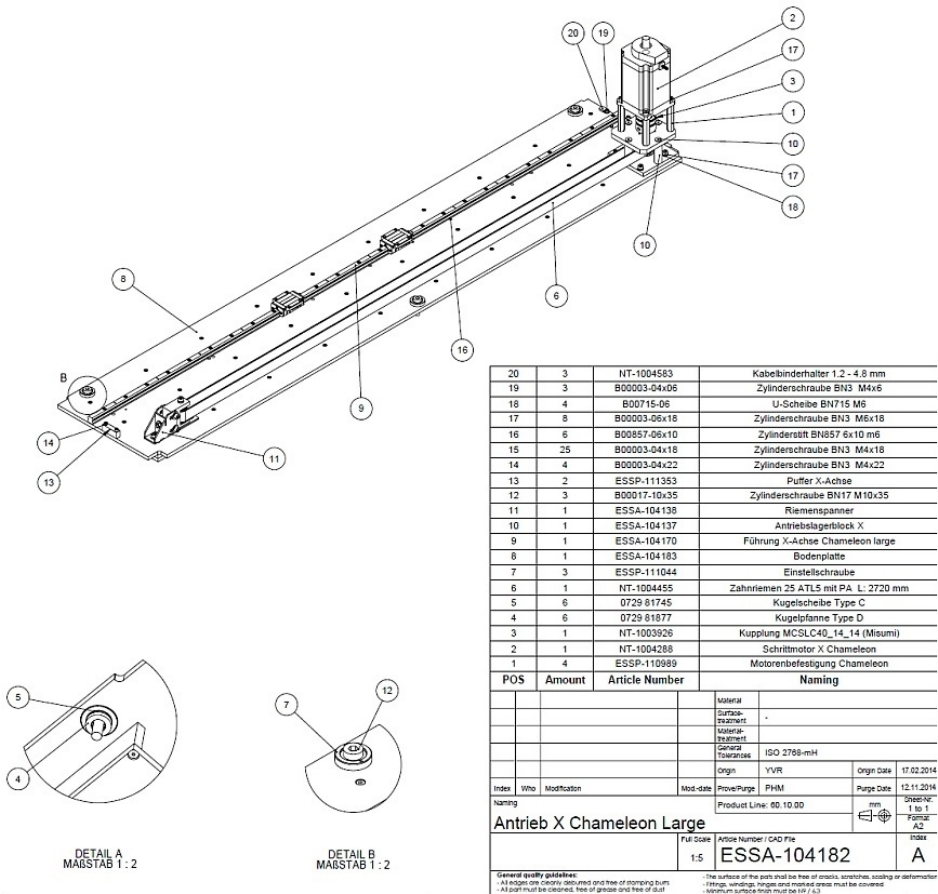

4 X Axis
X Axis 00197973-10 / 02 , 2016
4-2 © ASM SIPLACE Mat. Tower Storage Service Manual
00197973-10 / 02 , 2016 X Axis
SIPLACE Mat. Tower Storage Service Manual © ASM 4-3

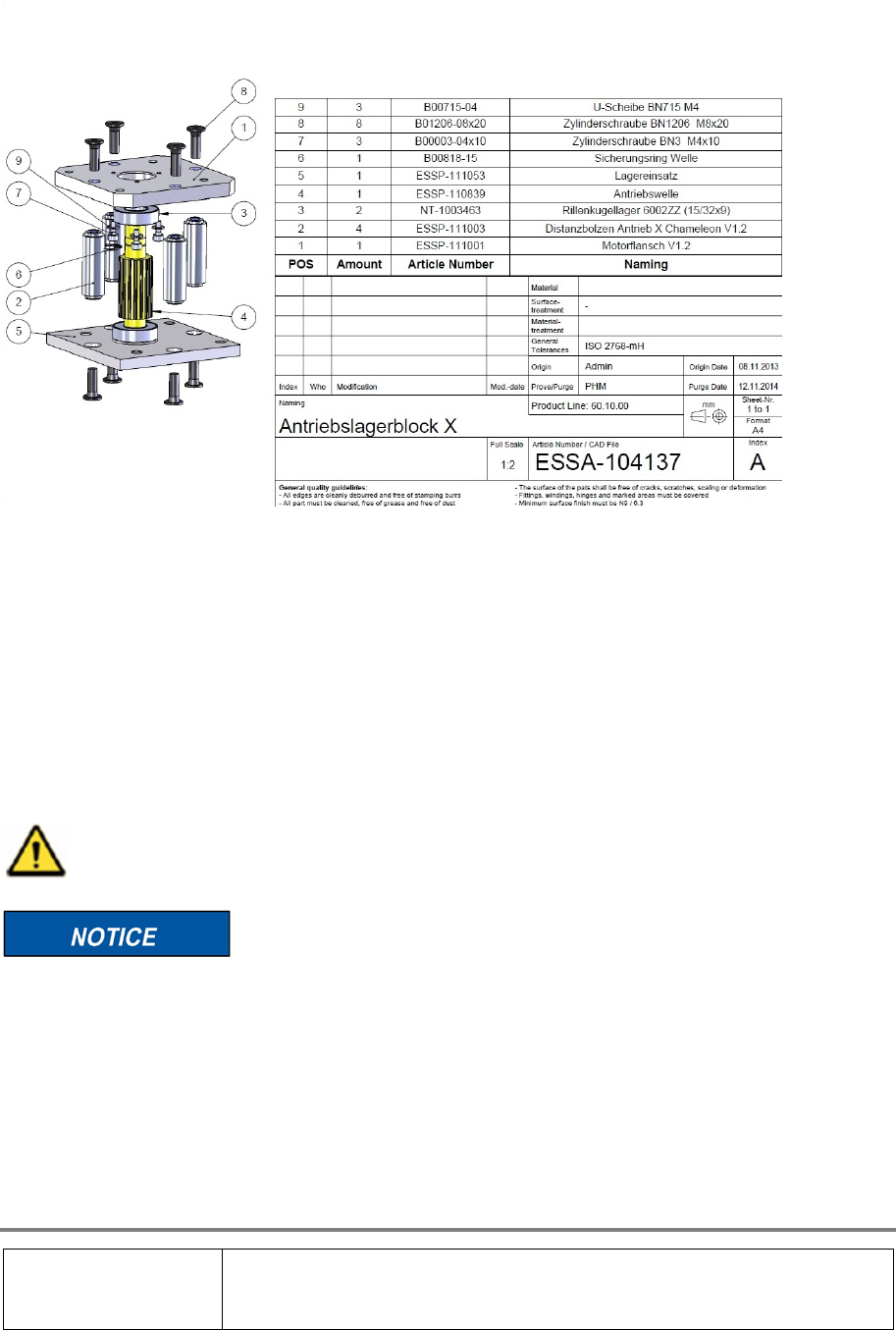

4.1 X Motor
4.1.1 Introduction
This modification instruction describes how to change the motor of the X Axis on SIPLACE Material
Tower.
Spare part number: 03124541-01
Before starting the maintenance, read the safety instructions carefully.
After this modification all stacks must be recalibrated. Therefore, SIPLACE Material Tower
must be emptied in advance by means of the software.
4.1.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Allen key nr. 3, 4 and 5
Torque key nr. 3 and 4 (torque range min-max: 1 N - 10 N)
