X Axis 00197973-10 / 02 , 2016
4-6 © ASM SIPLACE Mat. Tower Storage Service Manual

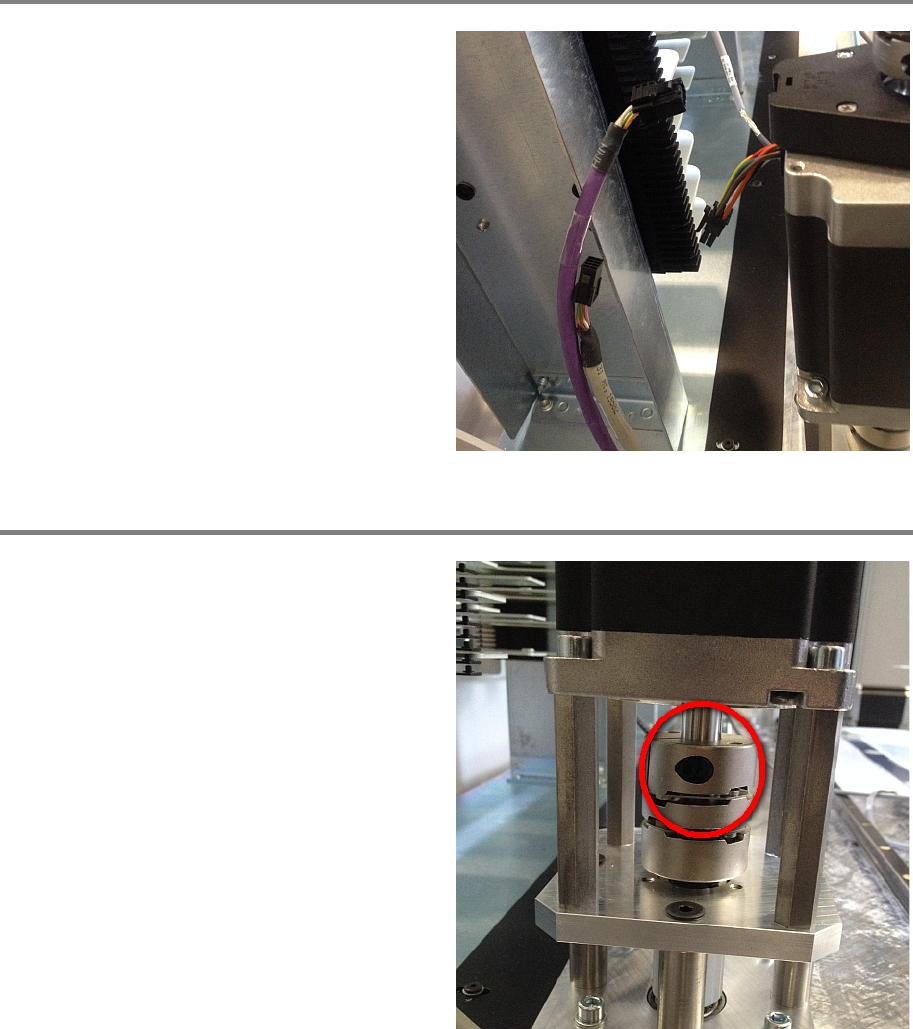

Step 2
Unplug both connection cables.
Step 3
Loosen the screw of the coupling.
00197973-10 / 02 , 2016 X Axis
SIPLACE Mat. Tower Storage Service Manual © ASM 4-7

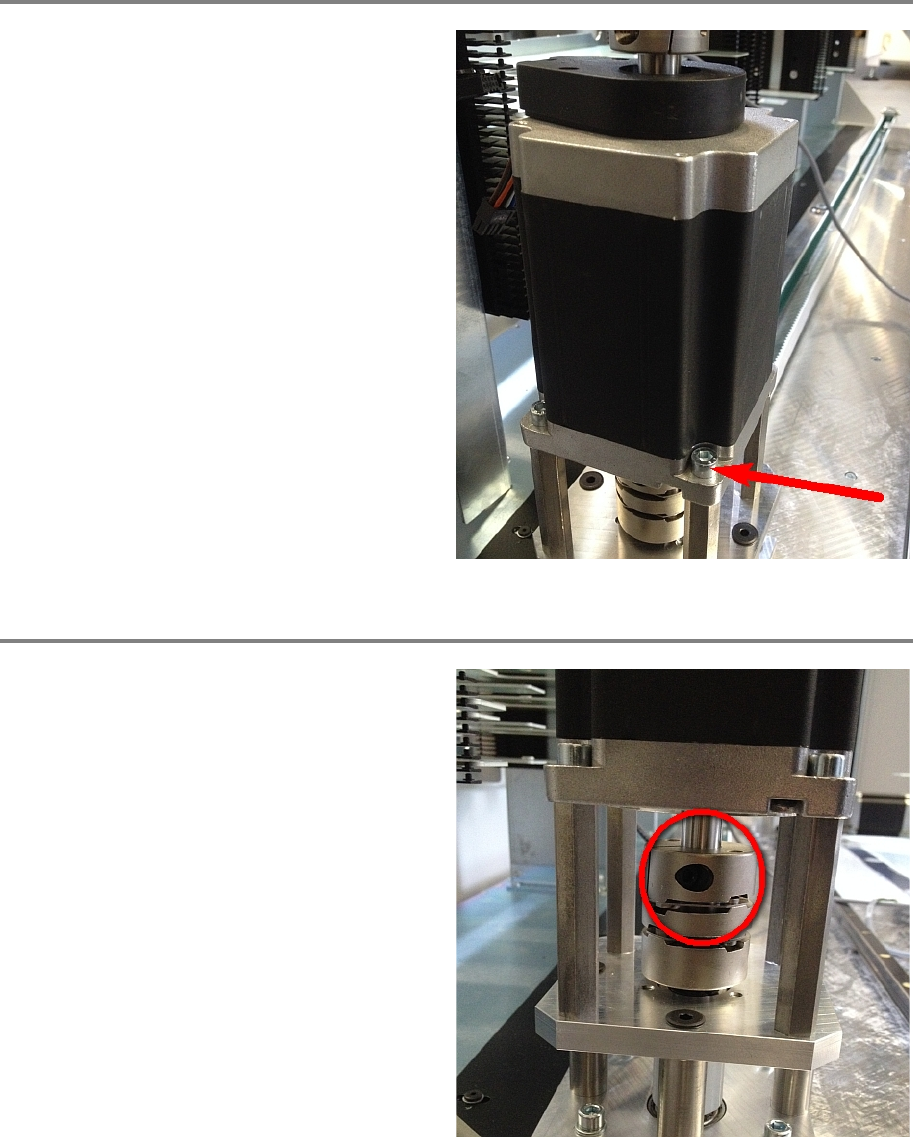

Step 4
Loosen all four screws holding the motor.
Carefully pull the motor out of the coupling and
put the new motor in its place.
Fasten all four screws holding the motor.
Step 5
Fasten the screw of the coupling using a torque
key adjusted on 7 Newton.
X Axis 00197973-10 / 02 , 2016
4-8 © ASM SIPLACE Mat. Tower Storage Service Manual

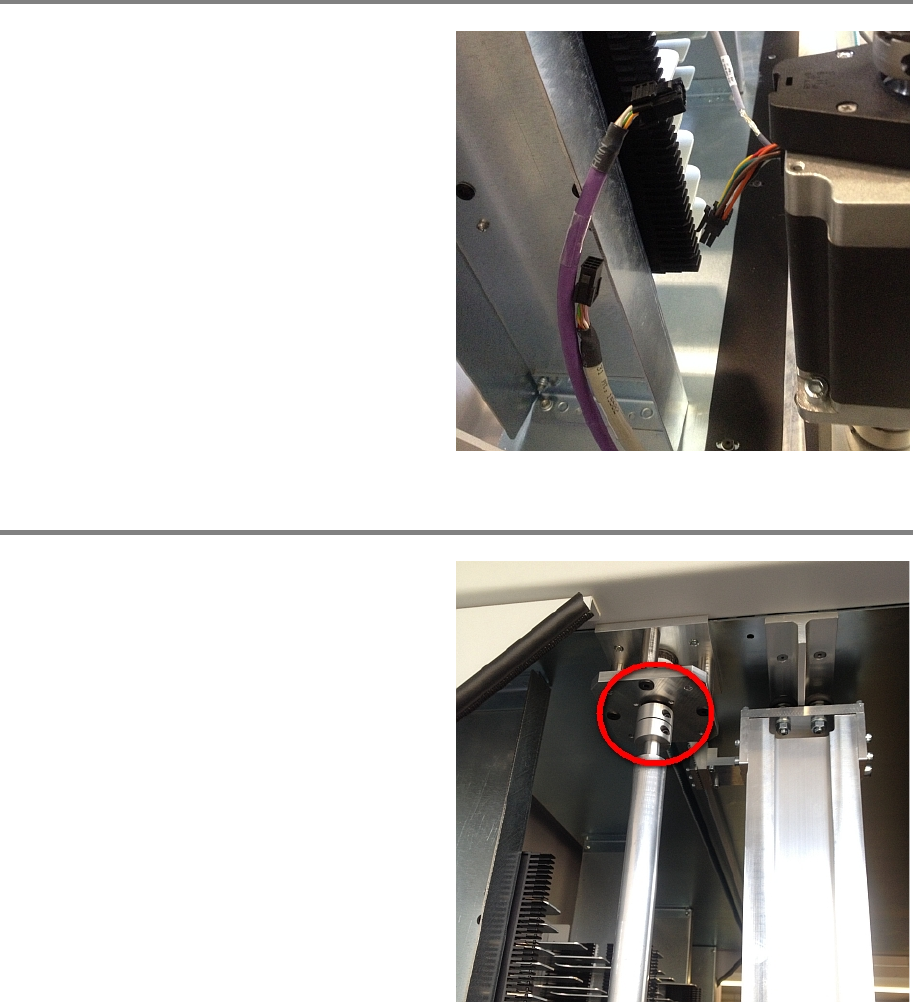

Step 6
Plug both connection cables.
Step 7
Carefully fit the shaft into the upper coupling.
Securely hold the shaft in one hand and fixate
the rigid coupling by fastening both screws
using a torque key adjusted on 2.5 Newton.
