0019797 3 - 10 / 02 , 2016 X Axis SIPLACE Mat. Towe r St ora ge Serv ice Manual © ASM 4- 11 Time needed Schedu le around 20 to 30 minutes fo r this task. 4.2.3 Prere quisites For a safe an d efficient maintena nce, the f…
X Axis 00197973-10 / 02 , 2016
4-10 © ASM SIPLACE Mat. Tower Storage Service Manual
Spare part number: 03126677-01
Before starting the maintenance, read the Sa
fety instructions carefully.
After this modification all stacks must be recalibrated. Therefore, SIPLACE Material Tower
must be emptied in advance by means of the software.
4.2.2 Tools, Material and Scheduling
For an effective and efficient maintenance, the following resources have to be provided:
Required Tools / Auxiliary Material / Spare parts
Tools: Allen key nr. 3 and 5
Wrench Nr. 10
Torque key nr. 3 (torque range min-max: 1 N - 10 N)
Metal shears
Belt tension meter (frequency range min-max: 20 Hz - 450 Hz), e.g. Sonic Tension
Meter / Gates Corporation Denver, Colorado
Measuring tape 5m
Auxiliary
Material:
Loctite Threadlocker Blue 242

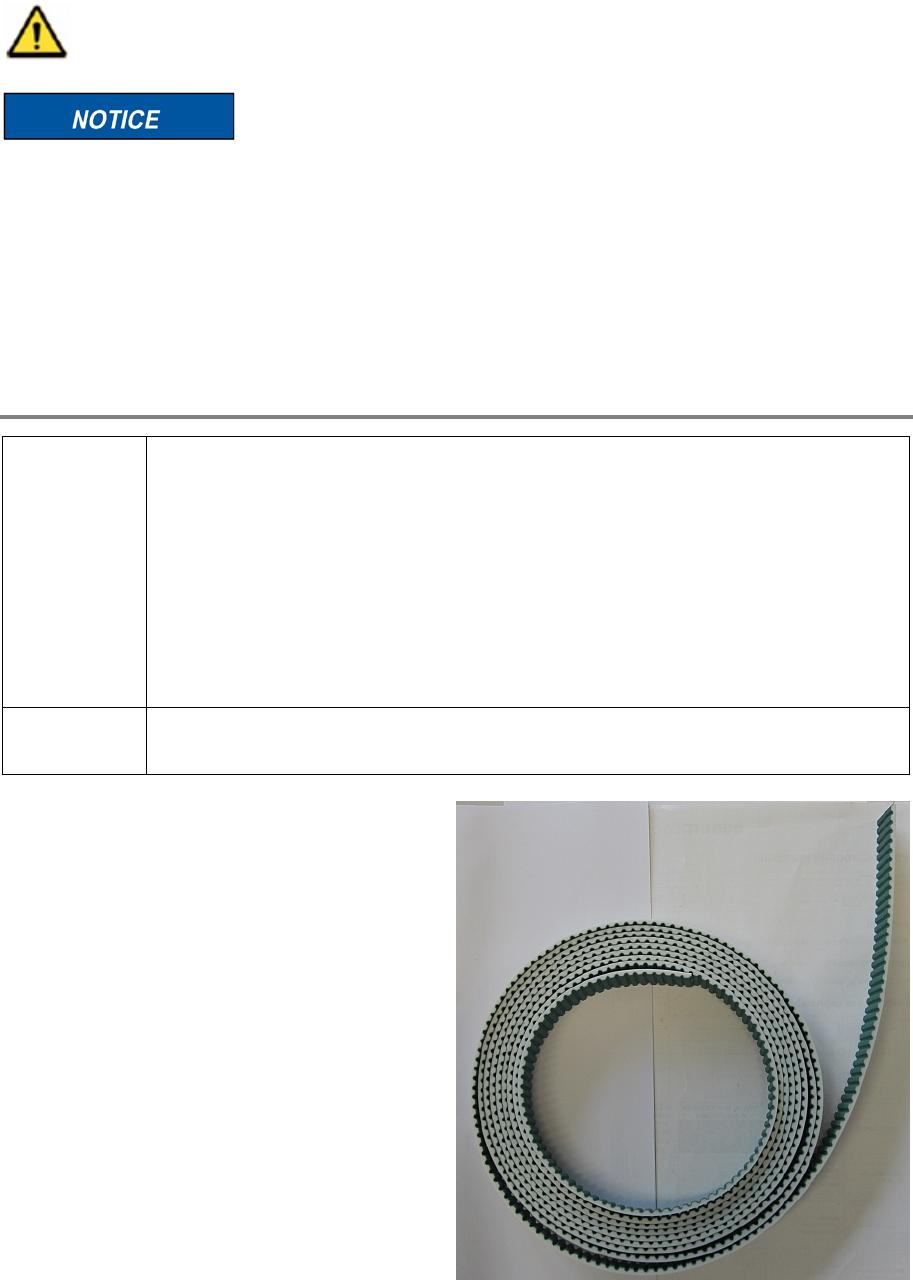

Spare parts:
03126677
-01, 2x tooth belt 25 ATL5
Length: 1813 mm ± 2 mm
00197973-10 / 02 , 2016 X Axis
SIPLACE Mat. Tower Storage Service Manual © ASM 4-11
Time needed
Schedule around 20 to 30 minutes for this task.
4.2.3 Prerequisites
For a safe and efficient maintenance, the following prerequisites have to be fulfilled:
Personnel:
• Any work with or at the equipment must be carried out by skilled and
trained personnel in accordance with the locally applicable
regulations.
• Inform all involved persons regarding the currently running
maintenance works.
Machine loading:
•
All stored items must be unloaded in advance.
Machine operating
condition:
• Shut down
Main electrical
power:
• Equipment disconnected from power supply system. The Main Switch
(switched off) locked by means of a padlock to secure the main switch
against unintentional switching on.
Compressed air /
Nitrogen (if used):
• Equipment disconnected from compressed air or nitrogen supply.
Access:
• Open both doors of the machine.
X Axis 00197973-10 / 02 , 2016
4-12 © ASM SIPLACE Mat. Tower Storage Service Manual

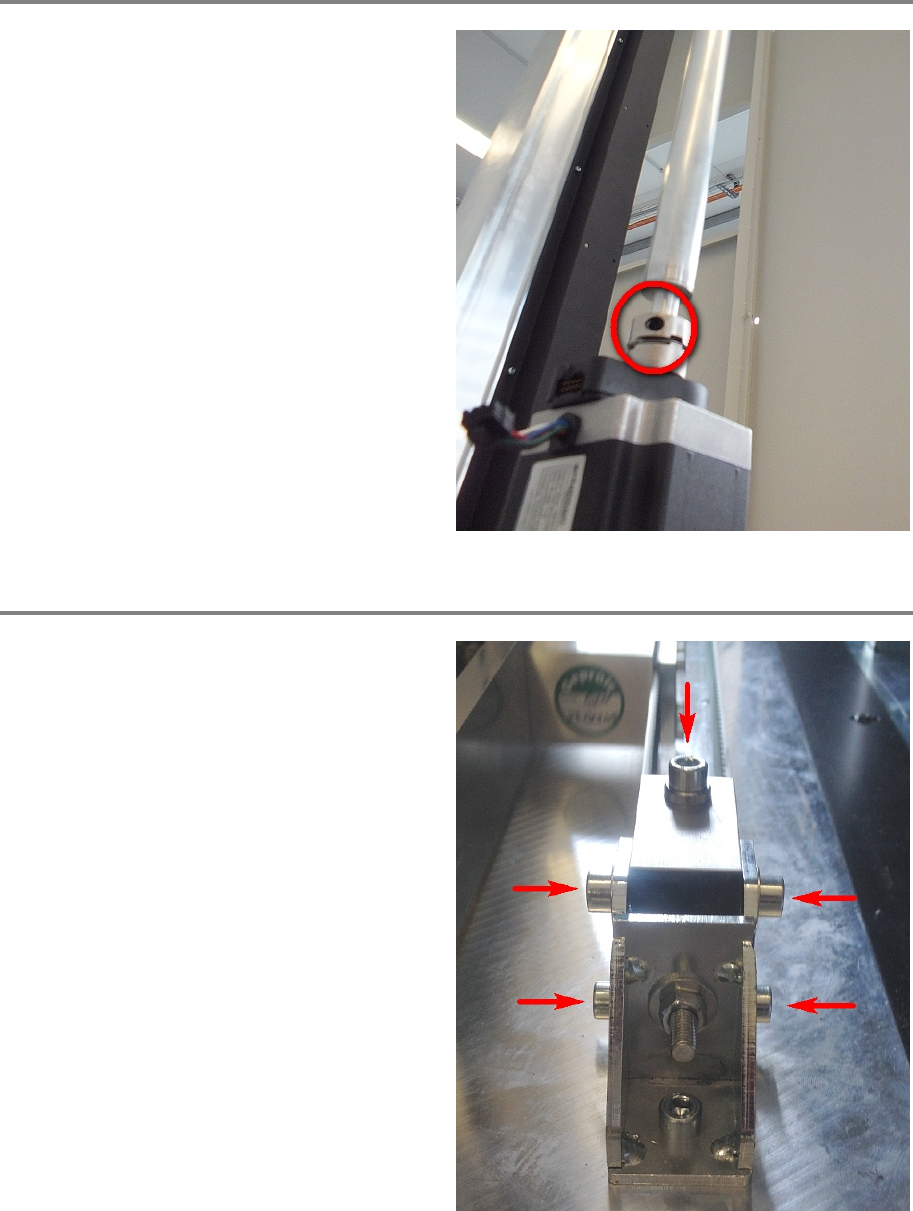

4.2.4 Exchange steps
Step 1
Loosen the rigid coupling by loosening the
screw.
Step 2
Loosen the five screws that are retaining the belt
tensioner.
