X Axis 0019797 3 - 10 / 02 , 2016 4- 14 © ASM SIPLACE Mat. Tower St ora ge Ser vice Manu al Therefore, loosen the s ix screws on the belt holding as far as the belt c an be pulled out. Now it is possi ble to remove the w…

00197973-10 / 02 , 2016 X Axis

SIPLACE Mat. Tower Storage Service Manual © ASM 4-13

Step 3

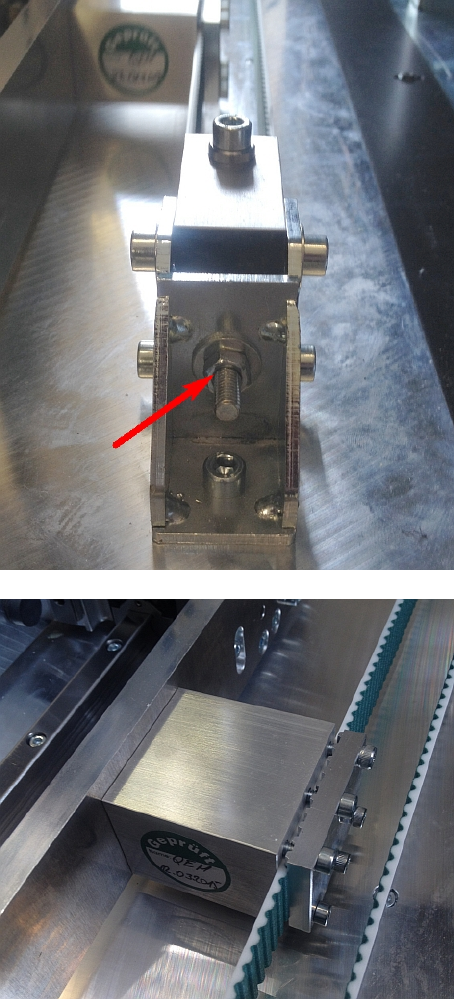

Loosen the tension of the belt by turning the nut

of the belt tensioner.

Step 4

The belt is now loose and can be exchanged.

X Axis 00197973-10 / 02 , 2016

4-14 © ASM SIPLACE Mat. Tower Storage Service Manual

Therefore, loosen the six screws on the belt

holding as far as the belt can be pulled out.

Now it is possible to remove the whole belt by

pulling.

Step 5

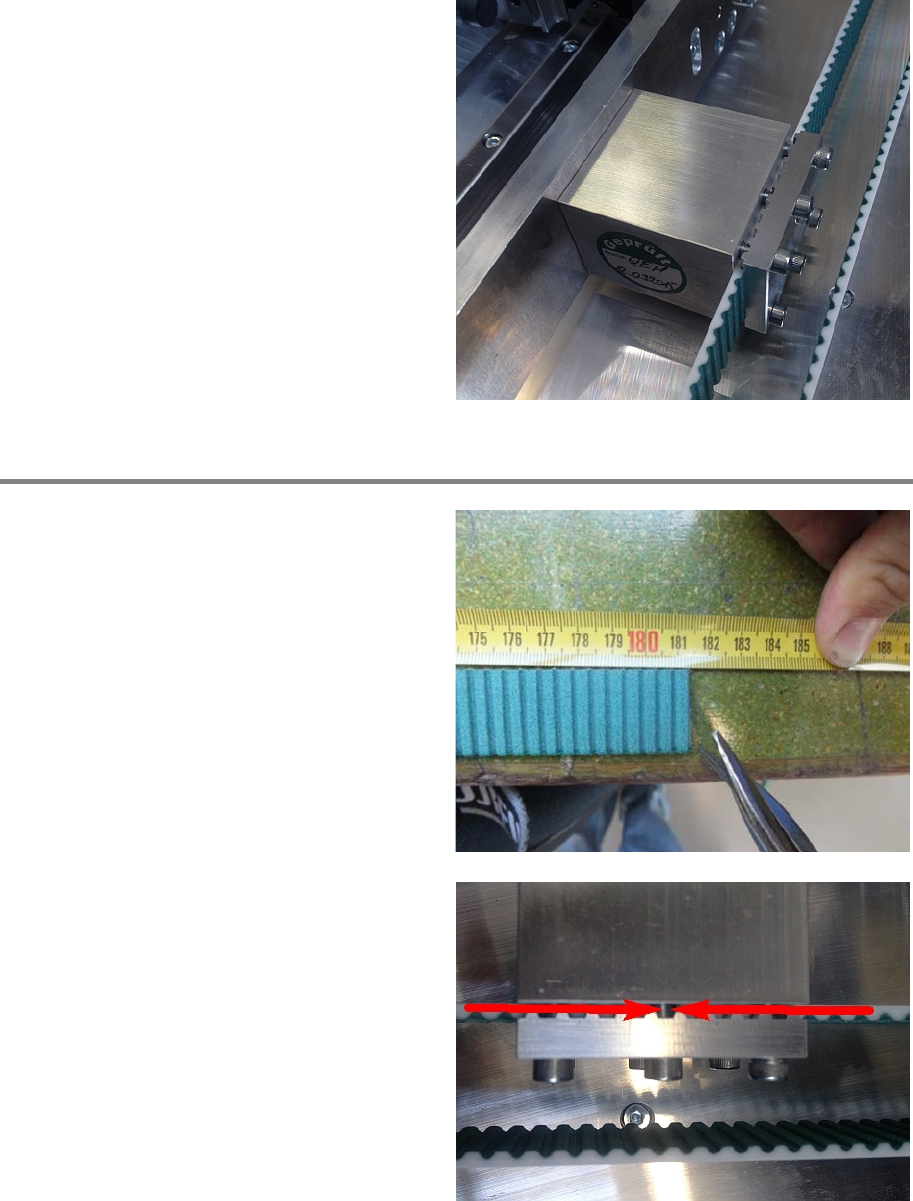

Using metal shears, cut the new belt to a length

1813 mm ± 2 mm.

Use Loctite on all screws.

Thread the belt behind motor and deflection

pulley then insert it into the belt holding that

both belt endings ar

e similarly as far as possible

inside the holding.

Softly fasten the screws on the belt holding as

far as the belt is secured but still has small

movement. The holdings won't be fastened

before the belt is in soft tension. This procedure

is important to a

ssure the belt endings lay

straight in the holdings and the force is spread

over the whole width and not only on one side.

00197973-10 / 02 , 2016 X Axis

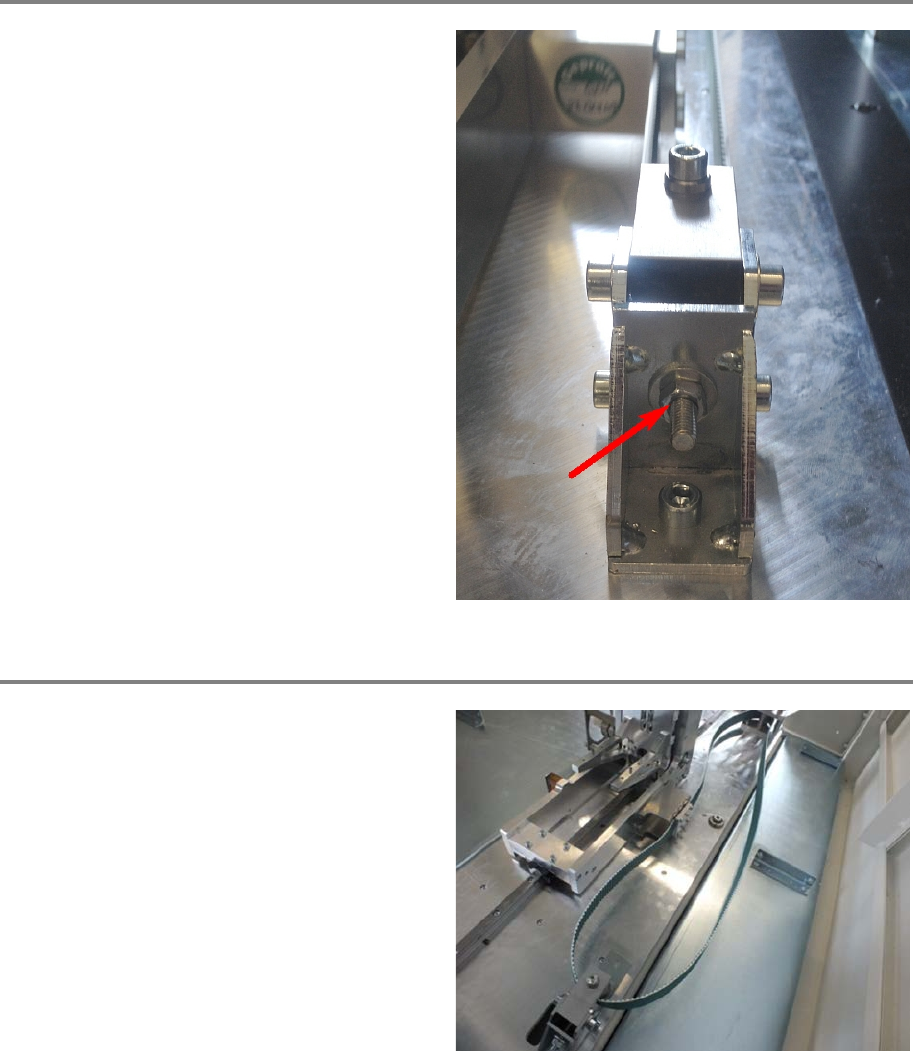

By means of the

nut, tension the belt softly,

meaning that you can pull the long side of the

belt approximately to distance of around 50mm

away.

Now, strongl

y fasten all 8 screws of the belt

holdings.
