X Axis 00197973-10 / 02 , 2016
4-16 © ASM SIPLACE Mat. Tower Storage Service Manual

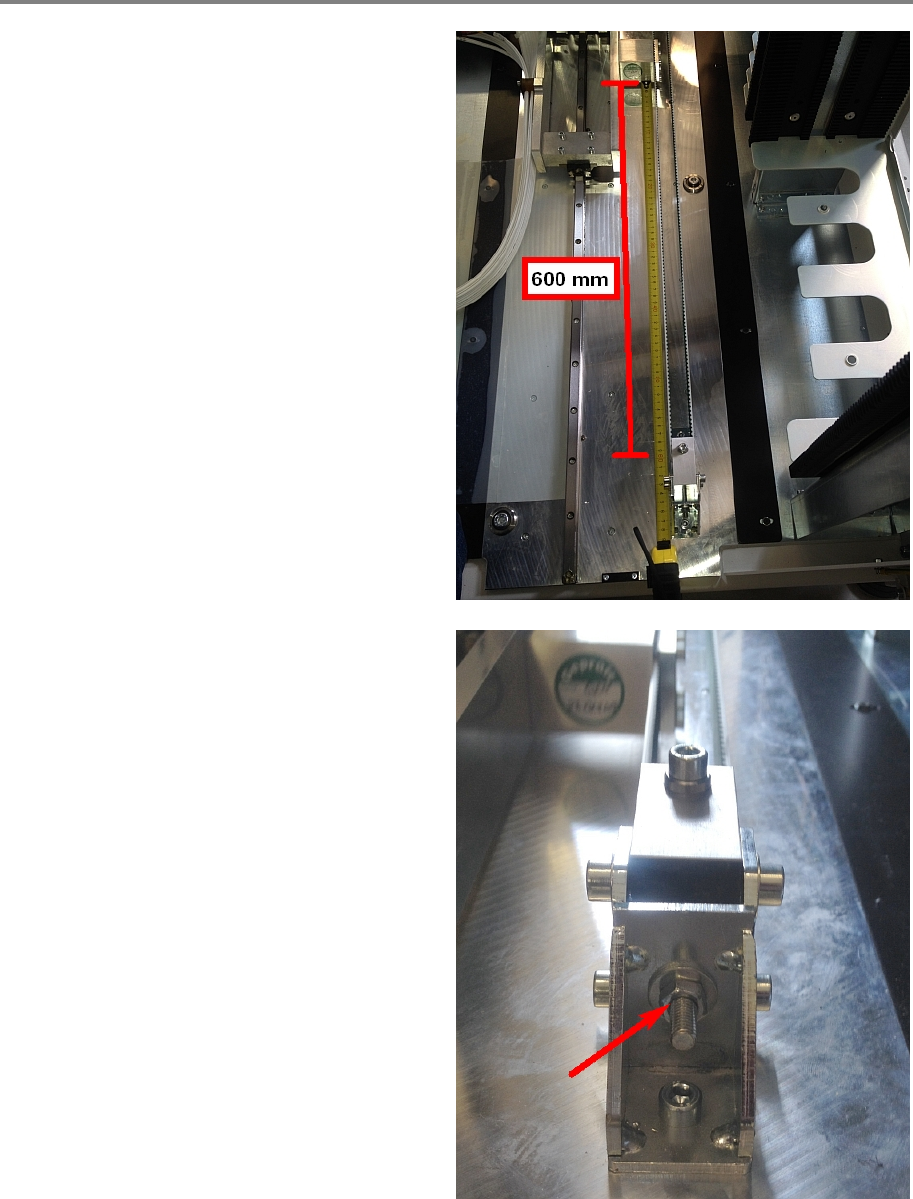

Step 6
Push the X axis to the a distance where you can
measure
600 mm between the beginning of the
belt holding and the middle of the pulley.
Required tension for the X belt is
36 Hz ± 1 Hz
Measure the belt tension approximately in the
middle of the measuring distance. Turn the belt
tension nut accordingly to achieve the correct
tension.
00197973-10 / 02 , 2016 X Axis
SIPLACE Mat. Tower Storage Service Manual © ASM 4-17

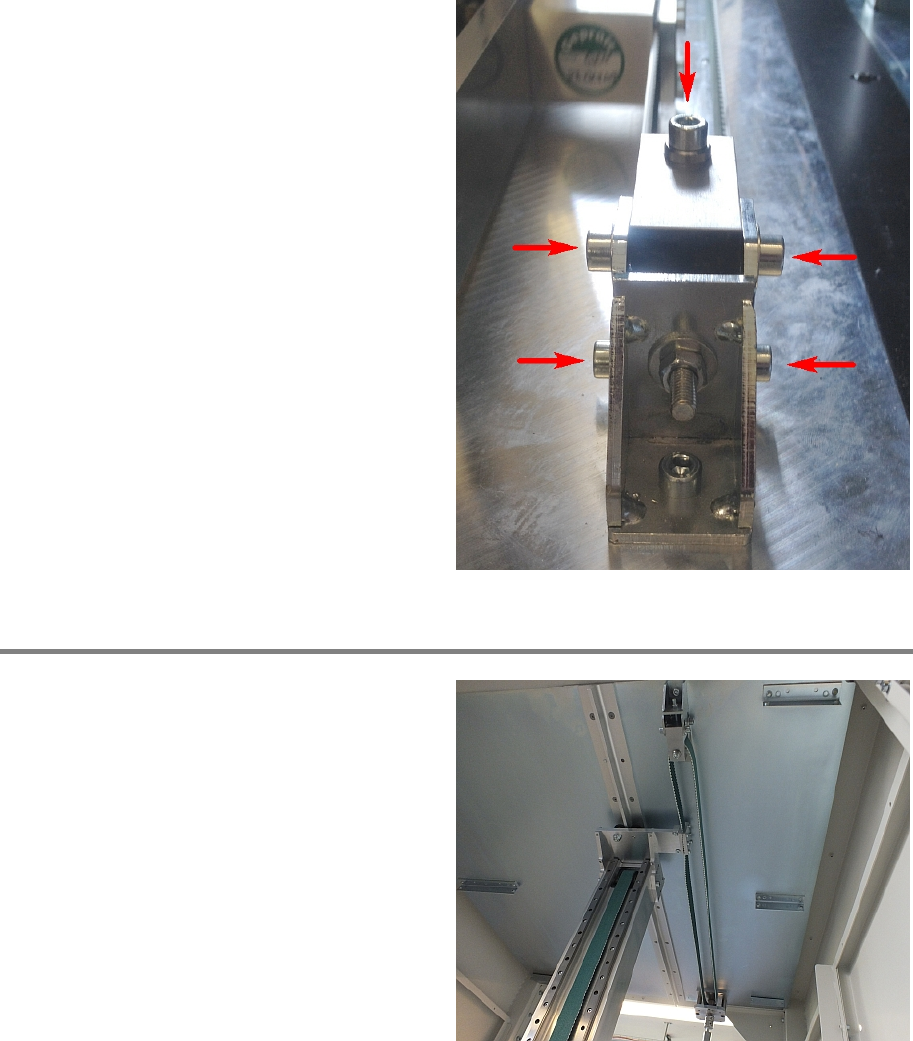

Fasten the five screws that are retaining the belt
tensioner.
Step 7
To exchange the belt at the top proceed
similarly as describe
d in Step 2 - 6.
X Axis 00197973-10 / 02 , 2016
4-18 © ASM SIPLACE Mat. Tower Storage Service Manual
Step 8
Use Loctite on all screws.
Fasten the screw of the coupling using a torque
key adjusted on 2.5 Newton.
Step 9
Remove all tools and close the doors of the machine.
Plug in the power connector and switch on the machine.
Initialize the machine by means of the software.
Step 10
In the software, in
System - Storage
Devices/Units
select the appropriate machine in
the table and press
Load.
In tab
Calibration calibrate the X axis and follow
the instructions given by the so
ftware.
