0019797 3 - 10 / 02 , 2016 X Axis SIPLACE Mat. Towe r St ora ge Serv ice Manual © ASM 4- 25 Finalize exchang e ste ps Remove all tools, at tach all previously rem oved covers and cl ose the doors o f the machine. Plug in…

X Axis 00197973-10 / 02 , 2016

4-24 © ASM SIPLACE Mat. Tower Storage Service Manual

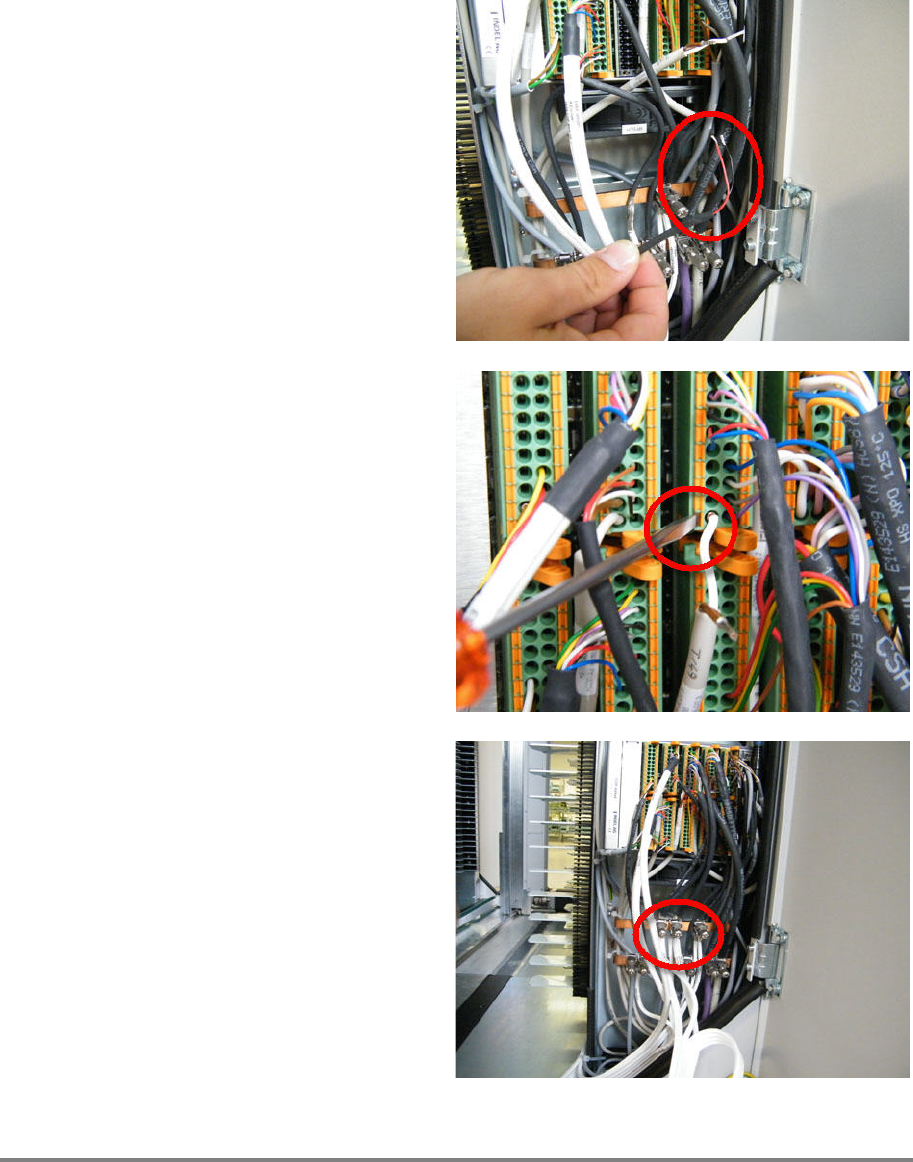

Loosen and remove the two cables (r

ed/black)

from the connector of the old and of the new

hybrid cable by means of a screwdriver (because

of many other cables using the same connector

it is easier to exchange the two cables than the

whole connector).

Place the two cables (red/black) of the

new

hybrid cable at exact the same connector

positions (black at pin 7 / red at pin 10)

Plug in and lock the two interlinked connectors

of the new hybrid cable (the connector with the

larger number of cables in the upper slot, the

one with less number of cables in the lower slot).

-place the two power cables (48 V)

(brown/white) by means o

f a screwdriver (same

position as power cables of adjacent connector,

pin 22 and 24).

Clamp the cables of the new hybrid cable with

the shield

terminals and tighten the screws by

hand. It is possible that other cables use the

same shield terminal, if so re

-connect them as

well.

Closing tasks

• Make sure all the cables are fitted correctly. They should not touch the door if closed.

• Make sure free movement is allowed for the hybrid cable along the whole driving range of the

X axis (no collision, no touching the chassis).

00197973-10 / 02 , 2016 X Axis

Finalize exchange steps

Remove all tools, attach all previously removed covers and close the doors of the machine.

Plug in the power connector and switch on the machine.

Initialize the machine by means of the software.
