3-10
AIX-MLT-ID
3. Component Library
3.1 Carrier Data
This is a tab sheet which corresponds to all component shapes -
"Cylindrical", "Square", "Deform", "IC (Simple)", "IC (Complex)",
"Connector (Simple)", "Connector (Complex)", "Other Leaded (Simple)",
"Other Leaded (Complex)", and "BGA/CSP".
When the "Carrier Data" tab is pressed, the "Carrier Data" tab sheet appears.

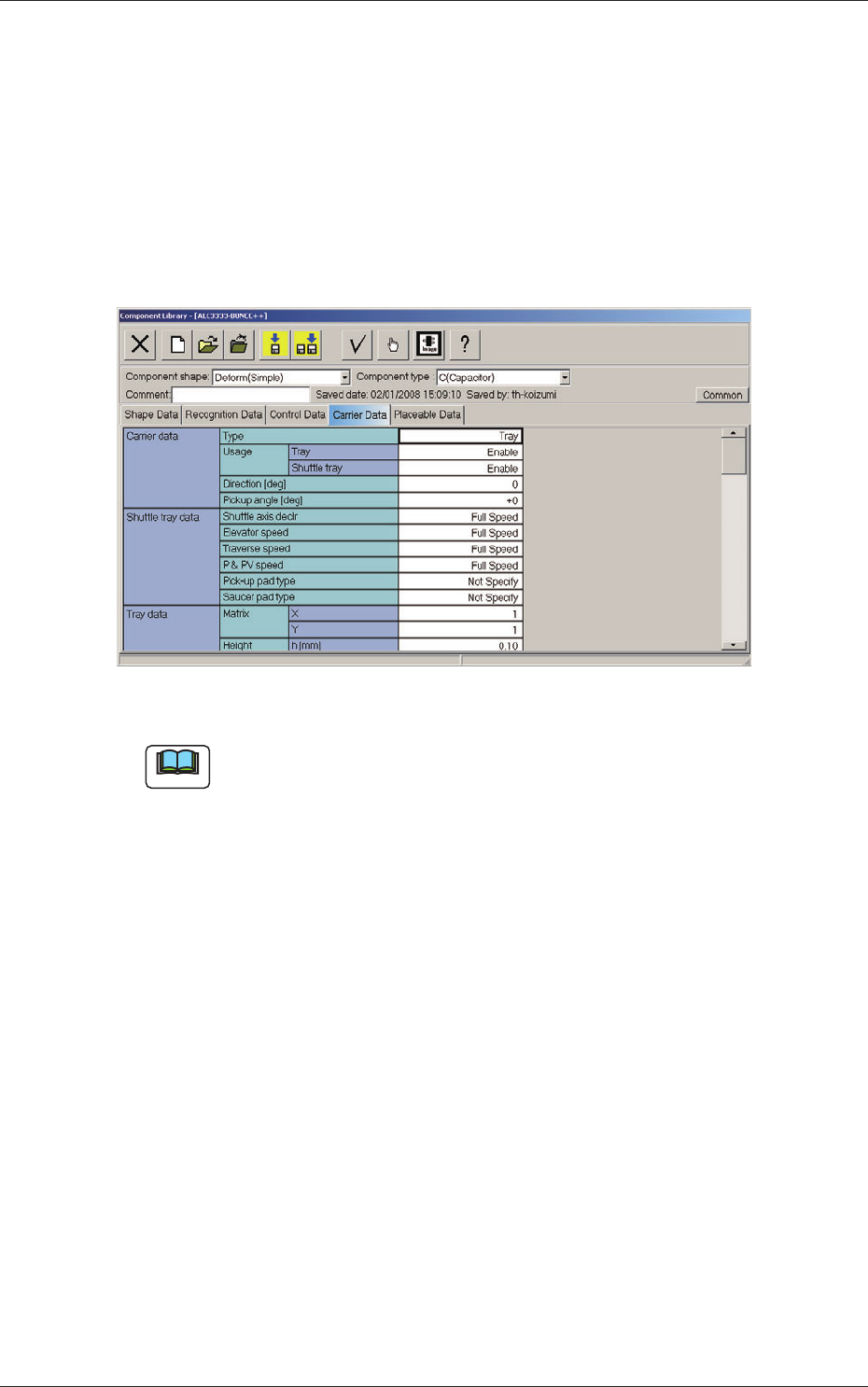

Fig. C7 "Carrier Data" Tab Sheet (Type: Tray Selected)
Note
Refer to "2.3 (A03) Carrier Data" in "Chapter 2" of the instruction manual
"Component Library" for details of each data.
Set "Tray" in the "Type" text box of the label "Carrier data" and enter
parameters in the other text boxes of the label "Carrier data" and in the text
boxes of the label "Tray data".
0804-004
3. Component Library
3-11
AIX-MLT-ID
4. System Setting
4.1 Offset Data
4.1.1 Feeder (B) Offset
Open the "System" window (main menu).
When the "Fdr-B" subtab is pressed in the "Device Offset" tab sheet and the
"Tray #3" subtab is further pressed, the following tab sheet appears.
[1] [2]

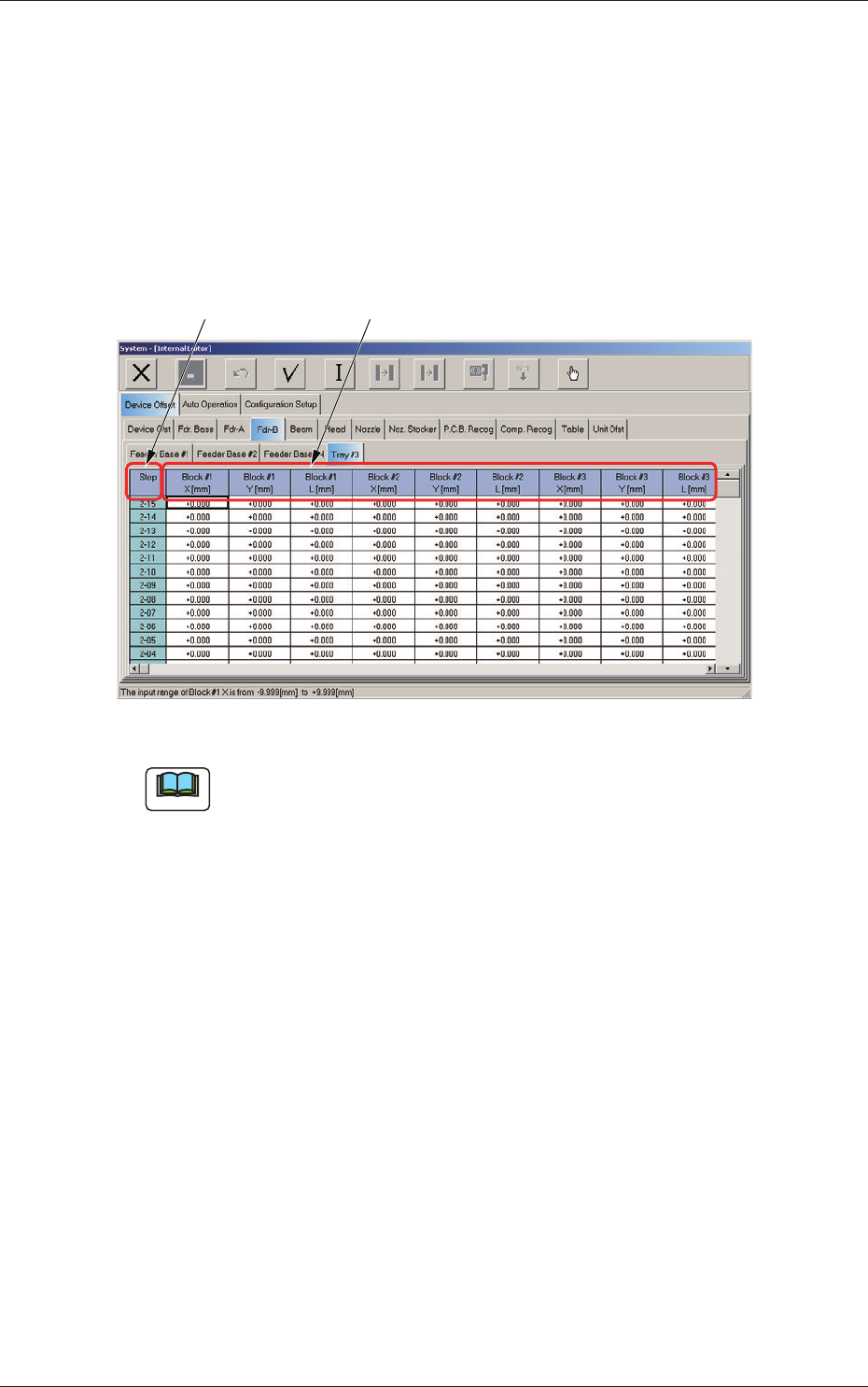

Fig. C8 "Tray #3" Subtab Sheet (Multi-Layer Tray Feeder #3 Used)
Note
The displayed subtab sheet will look different, depending on which option
is selected.
[1] Tray Step
Shown are the tray step Nos.
[2] Block #1 through #9
X [mm] (Horizontal) and Y [mm] (Vertical)
The set parameters are used to correct the variation in the X and Y
directions of each block of steps.
The values based on the placement reference coordinates system must
be entered in these text boxes.
Enter the positional deviations from the pickup position for each
individual pallets, including the traverse drawout position (multi-layer
tray offset), such that components can be picked up at their centers.
L [mm] (Height)
The set parameters are used to correct the variations in the pickup
height of the individual blocks of each step.
These parameters are reected on the descending stroke of the head
required to pick up a component.
0804-004
4. System Setting
3-12
AIX-MLT-ID
4.1.2 Unit Offset
When the "Unit Ofst" subtab is pressed in the "Device Offset" tab sheet and
the "Tray" subtab is further pressed, the following subtab sheet appears.

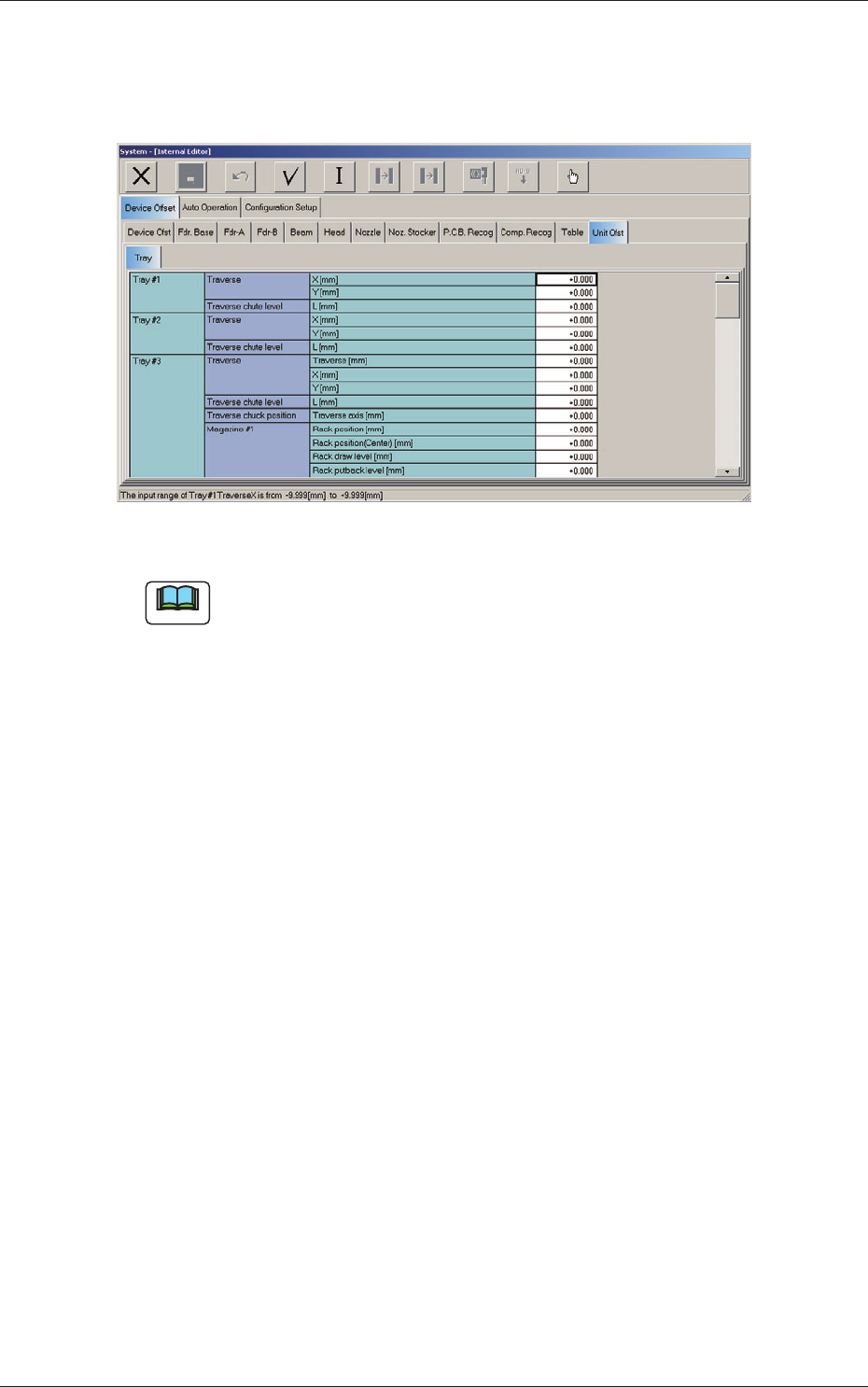

Fig. C9 "Tray" Subtab Sheet (Multi-Layer Tray Feeder #3 Used)
Note
The displayed subtab sheet will look different, depending on which option
is selected.
0804-004
4.1 Offset Data
