5-9
AIX-MLT-ID
2. Layout of Sensors and Loads Traverse Section (FP-G100L)
0705-003

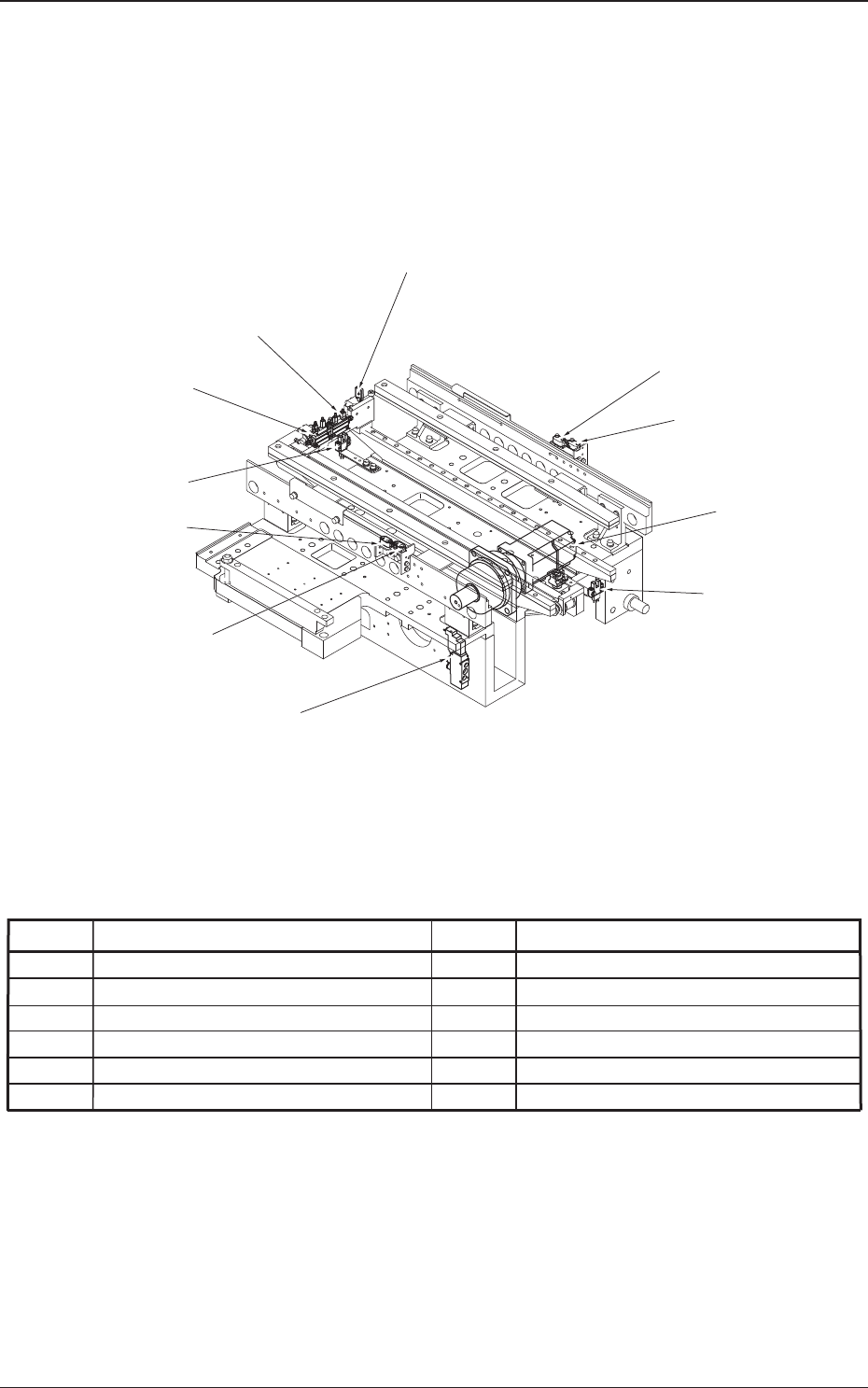

2.8 Traverse Section (FP-G100L)
-B0511
-B0101
-M01
-B0417
-B0102
-B0417
-B0418
-Y0530
-B0415,-B0416
-B0413,-B0414
-B0418
Symbol Name Symbol Name
-M01 Traverse Driving Motor
-B0101 Traverse Limit (+)
-B0102 Traverse Limit (-)
-B0413 Pallet Chuck 1 Clamping Check
-B0414 Pallet Chuck 1 Unclamping Check
-B0415 Pallet Chuck 2 Clamping Check
-B0416 Pallet Chuck 2 Unclamping Check
-B0417 Pickup Error Detection Sensor A
-B0418 Pickup Error Detection Sensor B
-B0511 Pallet Detection
-Y0530 Pallet Chuck Cylinder Valve
(Light Receiving)
(Light Receiving)
(Light Emitting)
(Light Emitting)
5-10
AIX-MLT-ID

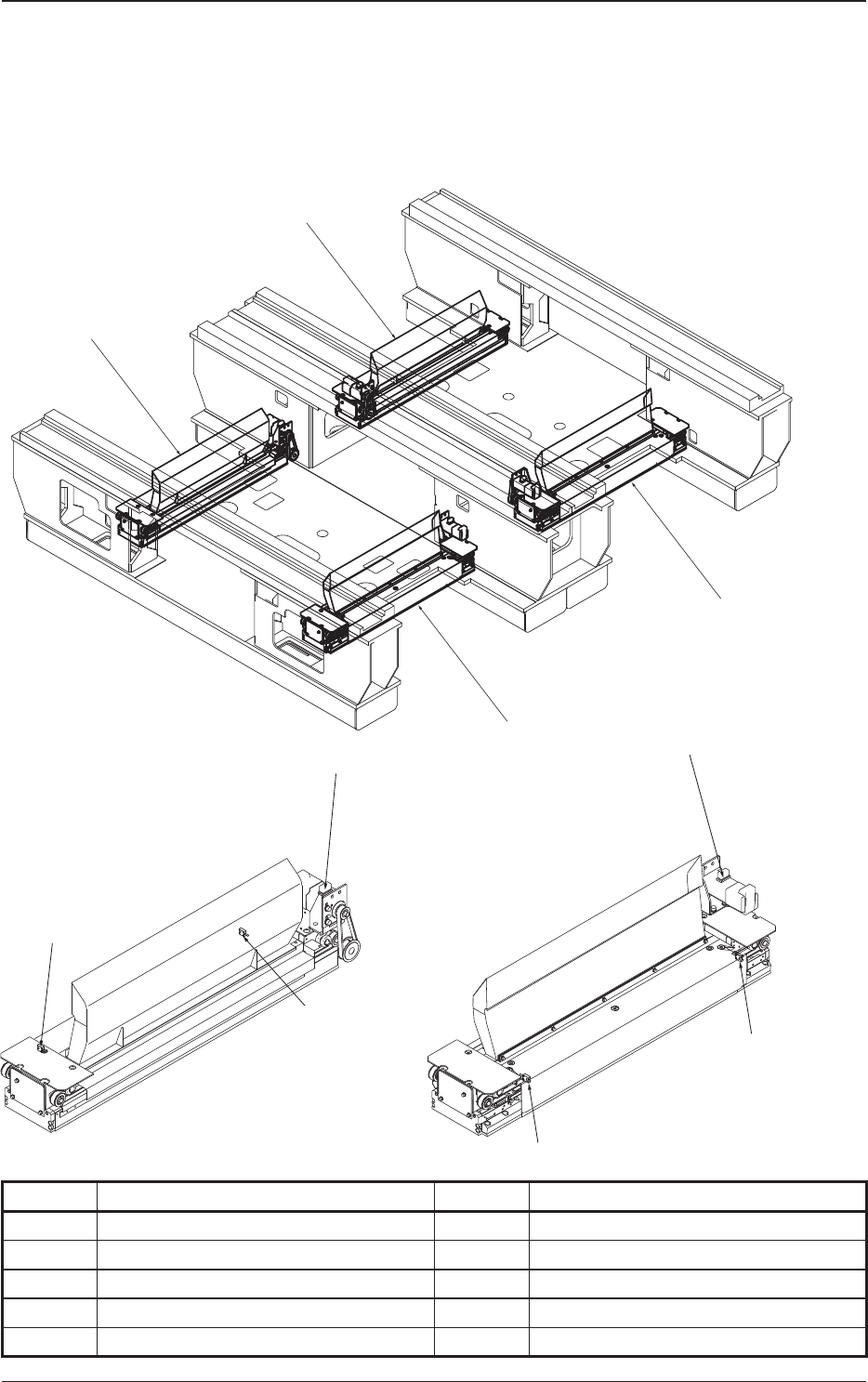

2.9 ModicationforCutter(FP-G100,100L)
G-S014-01, 02, 03, 04
G-S014-03(R)
Detach this when a
multi-layer tray feeder
is installed on
Feeder Base 3.
G-S014-01(L)
Detach this when a
multi-layer tray feeder
is installed on
Feeder Base 1.
G-S014-04(L)
Detach this when a
multi-layer tray feeder
is installed on
Feeder Base 4.
G-S014-02(R)
Detach this when a
multi-layer tray feeder
is installed on
Feeder Base 2.
-M63
-B6302
-B6302
-B6301
-B6301
-M63
Symbol Name Symbol Name
-B6301 Cutter Origin (+)
-B6302 Cutter Origin (-)
-M63 Cutter Motor
0705-003
2.LayoutofSensorsandLoadsModicationforCutter(FP-G100,100L)G-S014-01,02,03,04
5-11
AIX-MLT-ID
3. Parts Location Frame Section (FP-G100R)
0705-003
3. Parts Location

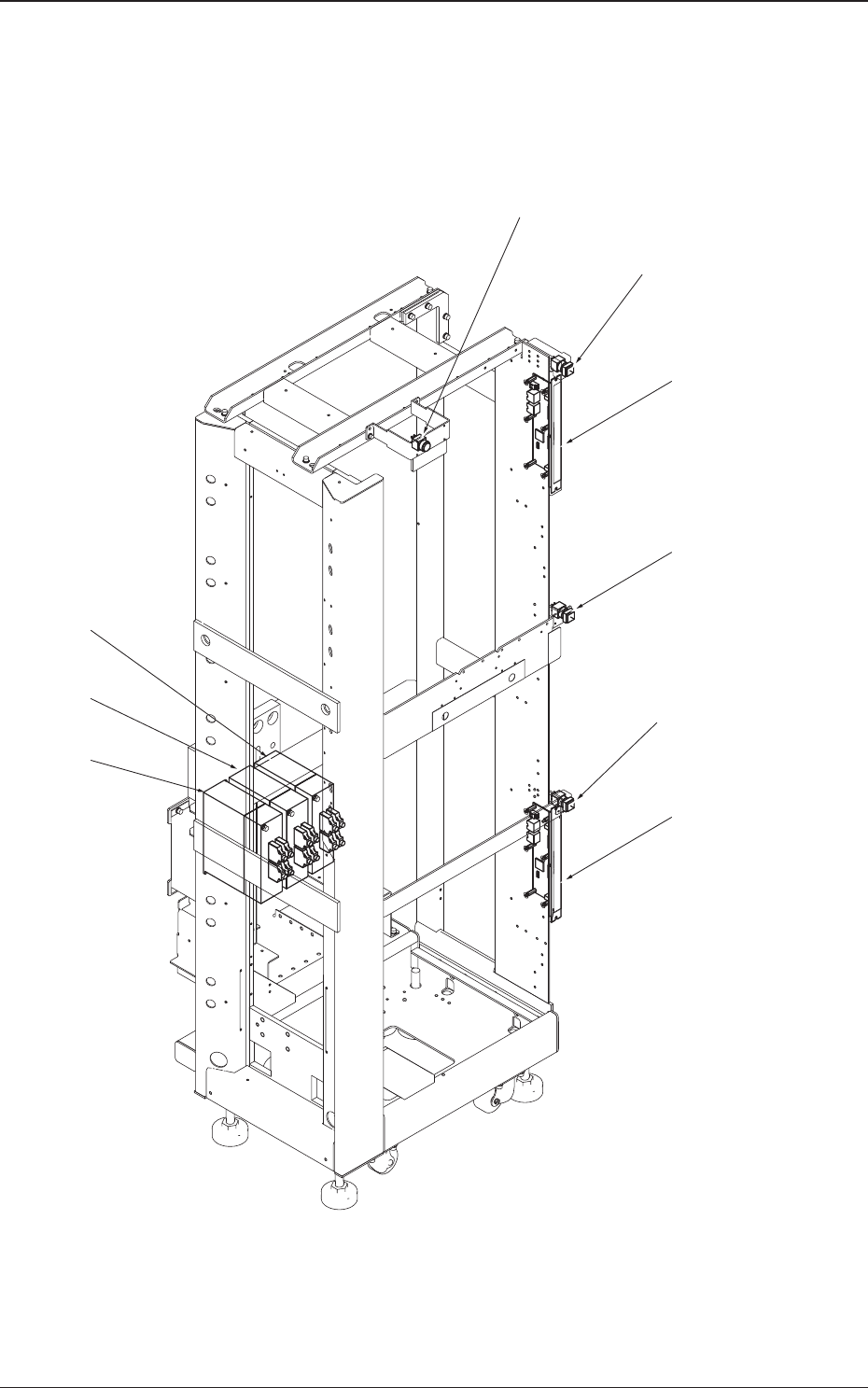

3.1 Frame Section (FP-G100R)
-HO001
(Power Lamp)
-A03
(Upper Elevator)
-A02
(Lower Elevator)
-A01
(Traverse)
-S0521[-H0542]
[Upper Ready]
Switch
-TR-U07
[Upper Component Supply]
Switch
-S0522[-H0543]
[Magazine Change]
Switch
-S0520[-H0541]
[Lower Ready]
Switch
-TR-U06
[Lower Component Supply]
Switch
