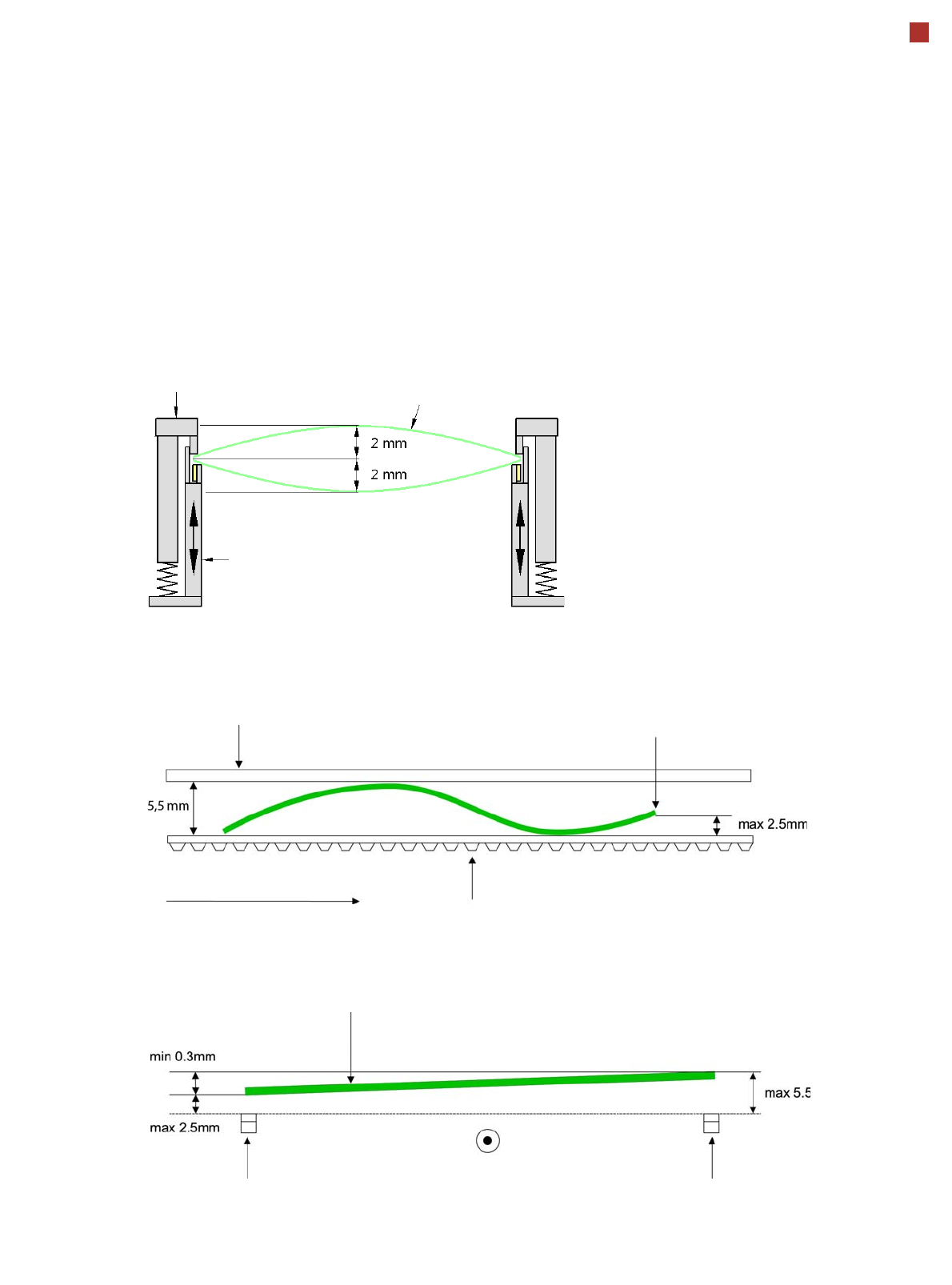

17 PCB warpage PCB warpage across the directio n of travel max. 1 % of the PCB diagonal, but no t exceeding 2 mm PCB warpage on the convey or Fixed clamped edge Movable clamping device PCB Fixed clamped ed ge Conveyor be…

100%1 / 52
16

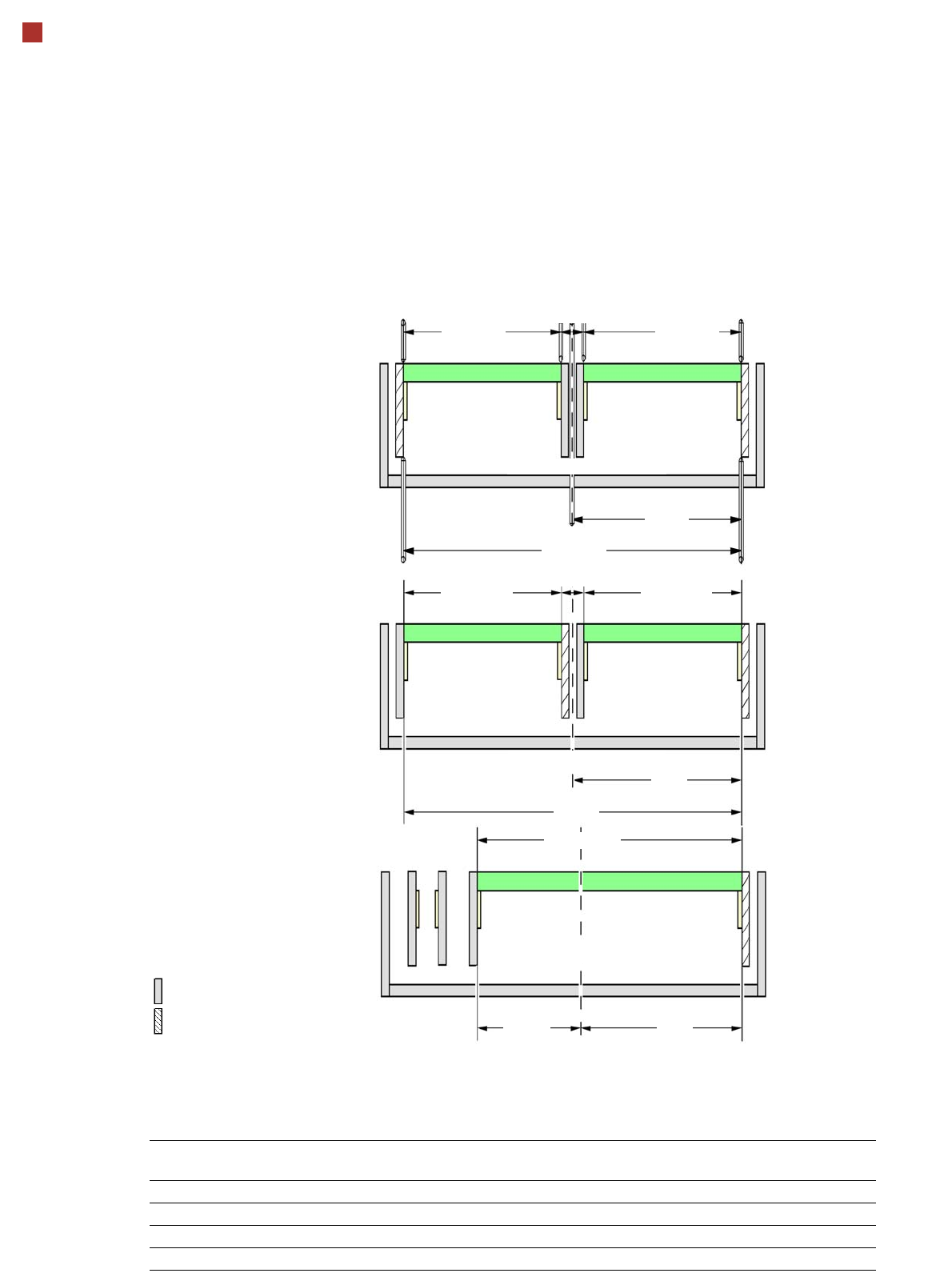

Board conveyor
I-Placement
Alternating placement mode
Alternating placement or
I-Placement mode
Distance of outer conveyor
edges: 562 mm, 2 lanes, outer
conveyor edges fixed
Alternating placement mode
Distance of outer conveyor
edges: 562 mm, 2 lanes, right
conveyor edges fixed
a
Alternating placement mode
Distance of outer conveyor
edges: 460 mm, dual conveyor
in single conveyor mode, right
conveyor edge fixed
a
Max. 260
Movable conveyor side
Stationary conveyor side
a) The diagram only shows settings with a fixed righthand conveyor edge. A setting with the stationary conveyor
edge on the left is also possible. All dimensions in millimeters.
Max. 260
281
562
Min. 35
281
179
Max. 260
281
Min. 35
Max. 260
562
Max. 460
Adjustable conveyor side position and max. PCB width
Conveyor side position Max. PCB width Distance of fixed side for various fixed side position
settings
Inside Right or left
231 mm 210 mm 462 mm 248.5 mm
268 mm 250 mm 536 mm 285.5 mm
281 mm 260 mm 562 mm 298.5 mm
Machine center
Machine center
Machine center
17

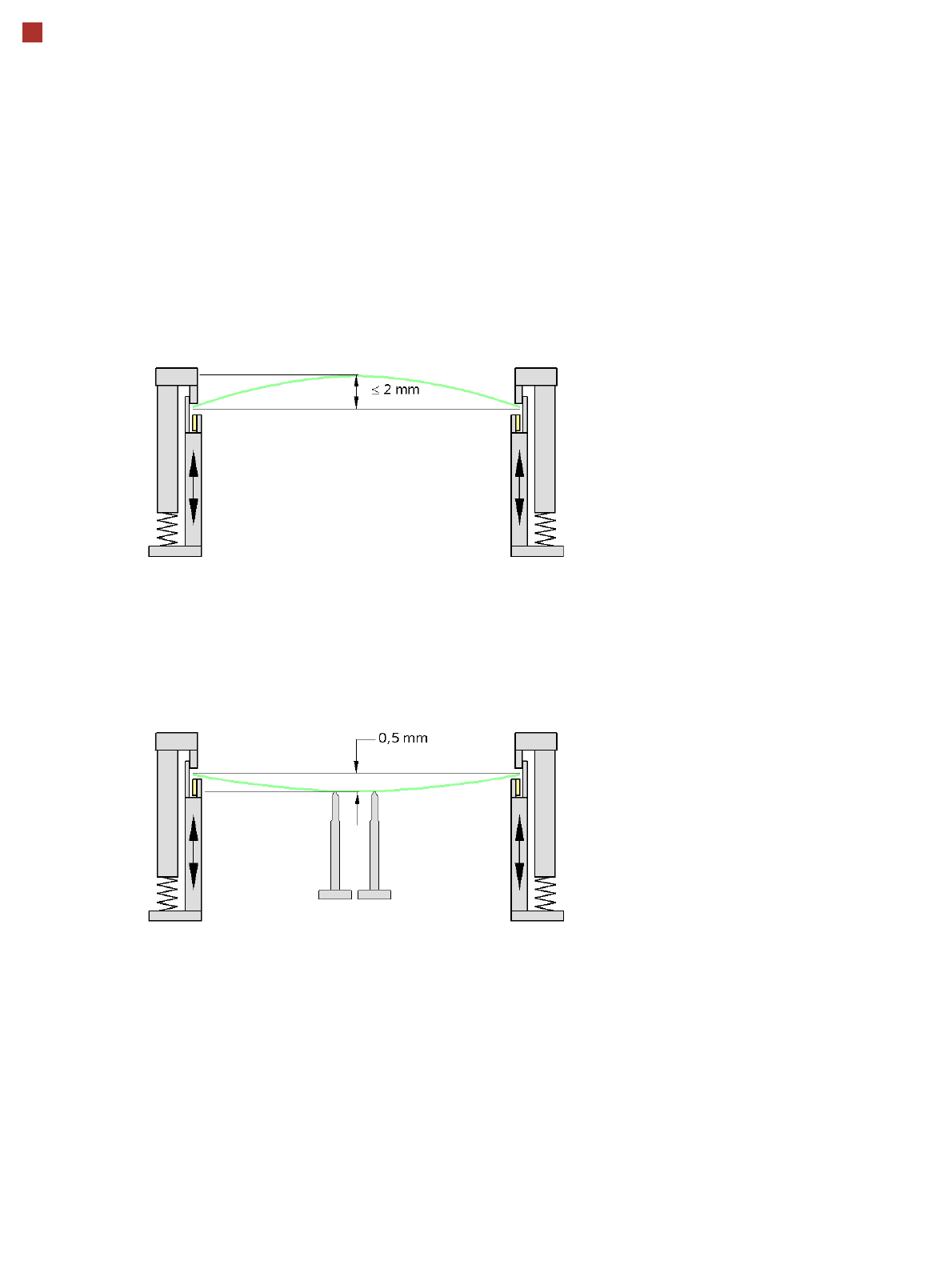

PCB warpage
18
PCB warpage
