18 PCB warpage PCB warpage during placement PCB warpage downwards max. 0.5 mm Use the magnetic pin supports, to achieve this value. When there is warpage under 2 mm, the inkspots in the center of the board a re also with…

PCB warpage

PCB warpage across the direction of travel

max. 1 % of the PCB diagonal, but not

exceeding 2 mm

PCB warpage on the conveyor

Fixed clamped edge

Movable clamping device

PCB

Fixed clamped edge

Conveyor belt

PCB transport direction

Front board edge

PCB warpage in direction of travel + PCB thickness < 5.5 mm

Bending up of front board edge max. 2.5 mm

Left conveyor belt

Right conveyor belt

PCB transport direction

PCB warpage

PCB warpage during placement

PCB warpage downwards max. 0.5 mm

Use the magnetic pin supports, to achieve

this value.

When there is warpage under 2 mm, the

inkspots in the center of the board are also

within the focus of the digital camera. When

all the tolerances are taken into account,

this value is reduced to 1.5 mm.

You should also note that the warpage

reduces the component height.

Magnetic pin support

Component feeding

Component trolley

SIPLACE TX

The TX component trolleys

are independent and easily

maneuverable modules. Two

SIPLACE TX component

trolleys, each with 40 tracks,

can be docked onto

SIPLACE TX machines. The

tape reels are taken up into

the tape container of the

component trolley. A cutting

device on the machine auto-

matically cuts up the used

tape material. The compo-

nent trolleys can be set up

directly on the machine or at

an external setup area with

feeder modules. The benefits

of offline setup are that the

configurations can be pre-

pared without stopping the

line.

This allows the setup to be

changed very quickly, using

the changeover table princi-

ple, to rapidly change the

component trolleys.

The SIPLACE TX compo-

nent trolleys also support fast

setting up and tearing down

of feeder modules even

during the placement pro-

cess.

Tapes can be spliced without

stopping the machine.

For safety reasons, unoccu-

pied locations are fitted with

so-called dummy feeder

modules.

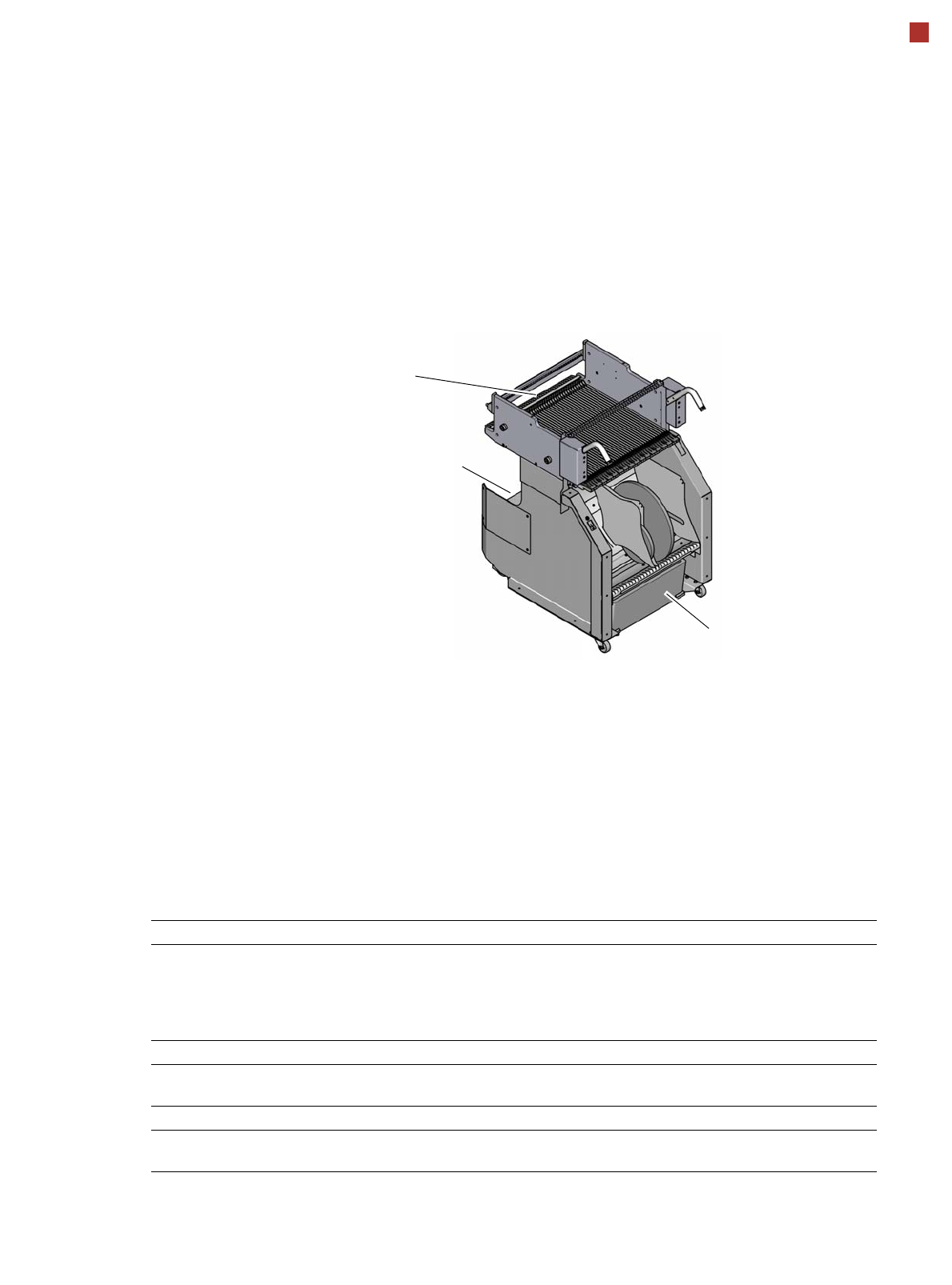

Component trolley SIPLACE TX

Tape container

Waste container for remaining

empty tape

Changeover table

Component supply Tracks occupied

SIPLACE TX

With C&P20 P

With CPP

With CPP /TH

With CPP or TwinHead and JTF-ML 2 at location 1

38 feeder modules, each with 8mm X

40 feeder modules, each with 8 mm X

28 feeder modules, each with 8 mm X

Tape reel diameter to 330.2 mm (13")

Component trolley changeover time < 1 minute

Feeder module types Tape feeder modules, LDU-X,

SIPLACE Glue Feeder
