Technical data

Electrical ratings, energy consumption and

compressed air supply

Electrical ratings

Supply voltage

Main power supply 3 x 360 V~ to 3 x 415 V~ ± 10 %; 50/60 Hz

3 x 200 V~ to 3 x 240 V~ ± 10 %; 50/60 Hz

a) With options package

Energy consumption

With a vacuum pump

b) Vacuum pump for C&P20 P head only.

Without a vacuum pump

Nominal apparent

power

2.6 kVA 2.3 kVA

Nominal active power 2.00 kW 1.2 kW

Compressed air supply

Compressed air pres-

sure values

min

max

0.5 MPa = 5.0 bar

1.0 MPa = 10 bar

Operating pressure 0.48 MPa ± 0.025 MPa (4.8 bar ± 0.25 bar)

Compressed air con-

nection

1/2" hose connection

Compressed air consumption

c) Average consumption values. Under normal atmospheric conditions at 20°C and 1013 hPa.

Placement head configura-

tion

Compressed air

consumption

with a vacuum pump

Compressed air consumption

without vacuum pump

SIPLACE TX2i/TX2

C&P20 / C&P20

CPP / CPP

CPP / TH

120 Nl/min

No option

250 Nl/min

220 Nl/min

SIPLACE TX1

C&P20 P

CPP

70 Nl/min

No option

130 Nl/min

Compressed air specification according to ISO 8573

Particle size (ISO class 3) 5 µm

Particle density (ISO class 3) 5 mg/m³

Maximum oil content

(ISO class 1)

Particle density 0.01 mg/m³

Pressure dewpoint (ISO class 4) Dewpoint + 3°

Technical data

Electrical ratings, energy consumption and

compressed air supply

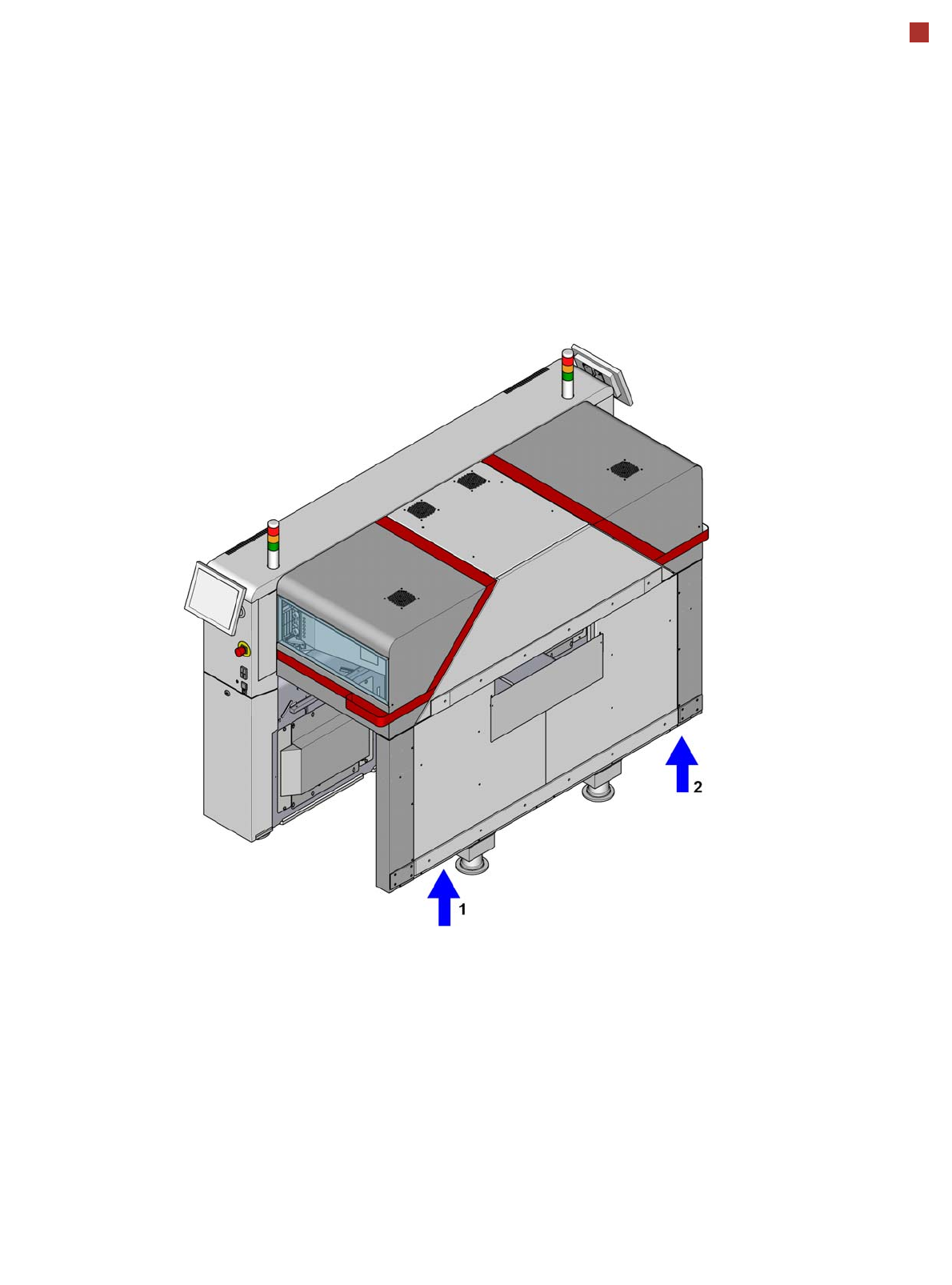

1 = Electrical connection

2 = Compressed air connection

The connections are run into the machine from below and then connected to the power supply

or pneumatic unit terminals.

Technical data

Dimensions and setup conditions

Length

Without conveyor extension and with hand guard

With input conveyor extension

With output conveyor extension

With input and output conveyor extension)

a) Measured at the outer contour of the machine protection.

b) Only at the first machine in the line.

1000 mm

1260 mm

1604 mm

1864 mm

Width

Outer contour of machine protection (table "inside")

With monitor

Outer contour of machine protection (table location 1 "outside")

Machine frame

2232 mm

2386 mm

2324 mm

2048 mm

Height of machine (for PCB conveyor height 950 mm)

Up to upper edge of machine protection

With 2-color indicator lamp

With 3-color indicator lamp

Without indicator lamp (height of packaging)

With folded-up short protective cover 45 degrees position

With folded-up short protective cover 60 degrees position

With folded-up short protective cover 45 degrees position

With folded-up short protective cover 60 degrees position

1500 mm

1690 mm

1735 mm

1500 mm

1960 mm

2070 mm

2050 mm

2175 mm

Machine ground clearance

(for PCB conveyor height 900 mm)

(for PCB conveyor height 930 mm)

(for PCB conveyor height 950 mm)

120 mm ± 15 mm

150 mm ± 15 mm

170 mm ± 15 mm

Weight

SIPLACE TX1/TX2i/TX2 (machine with component trolley)

SIPLACE TX1/TX2i/TX2 (complete configuration with feeder mod-

ules)

2050 kg

2150 kg

Location

With tables, outside

c) Measured at the outer contour of the machine protection and without conveyor extension.

2.23 m²

2.33 m²

Even surface load

Characteristic surface load

6.75 kN/m²

7.70 kN/m²

Number of machine feet 4

Max. noise emissions 75 dB (A)

Room temperature Between 15°C and 35°C

Atmospheric humidity 30% to 75 % (no higher than 45% on

average to prevent any possibility of con-

densation on the machine)

Please note:

Also observe the document "Network and compressed air configuration for SMD systems"

(German+English, Item No. 00197548-xx), which is supplied with your SIPLACE machine.
