38 Technical data Maneuvering distances for component trolleys Location (outside) Location (inside) R Maneuvering distance 800 mm 680 mm L1 Machine center to outer edge of compo nent trol- ley TX 1222 mm 1 102 mm
37
Technical data
Machine dimensions

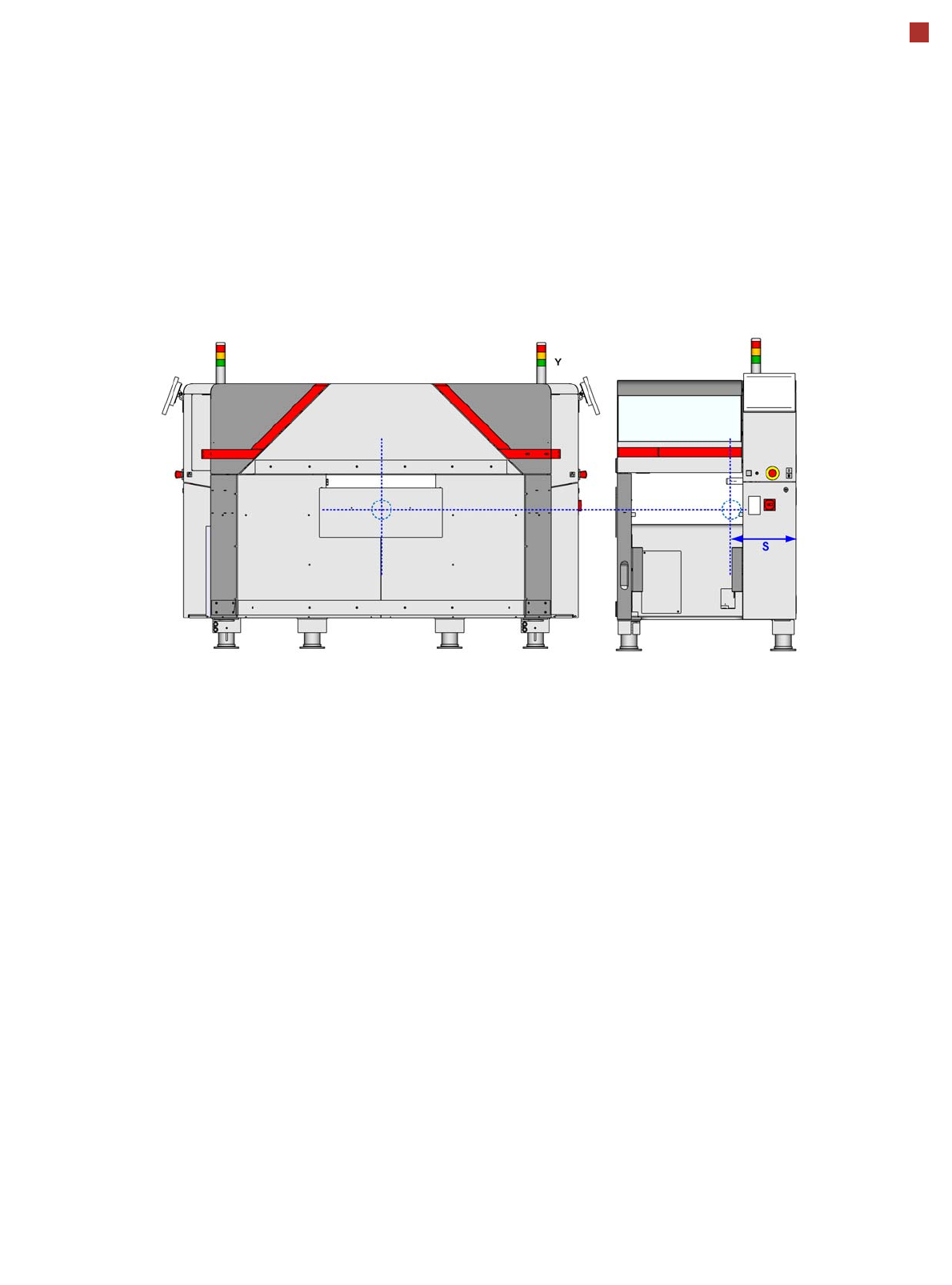

Machine center of gravity
Center of gravity S = 420 mm
38
Technical data
Maneuvering distances for component trolleys
Location (outside) Location (inside)
R Maneuvering distance 800 mm 680 mm
L1 Machine center to outer edge of component trol-
ley TX
1222 mm 1102 mm
39
Technical data
Machine foot clearances
All dimensions in millimeters.
