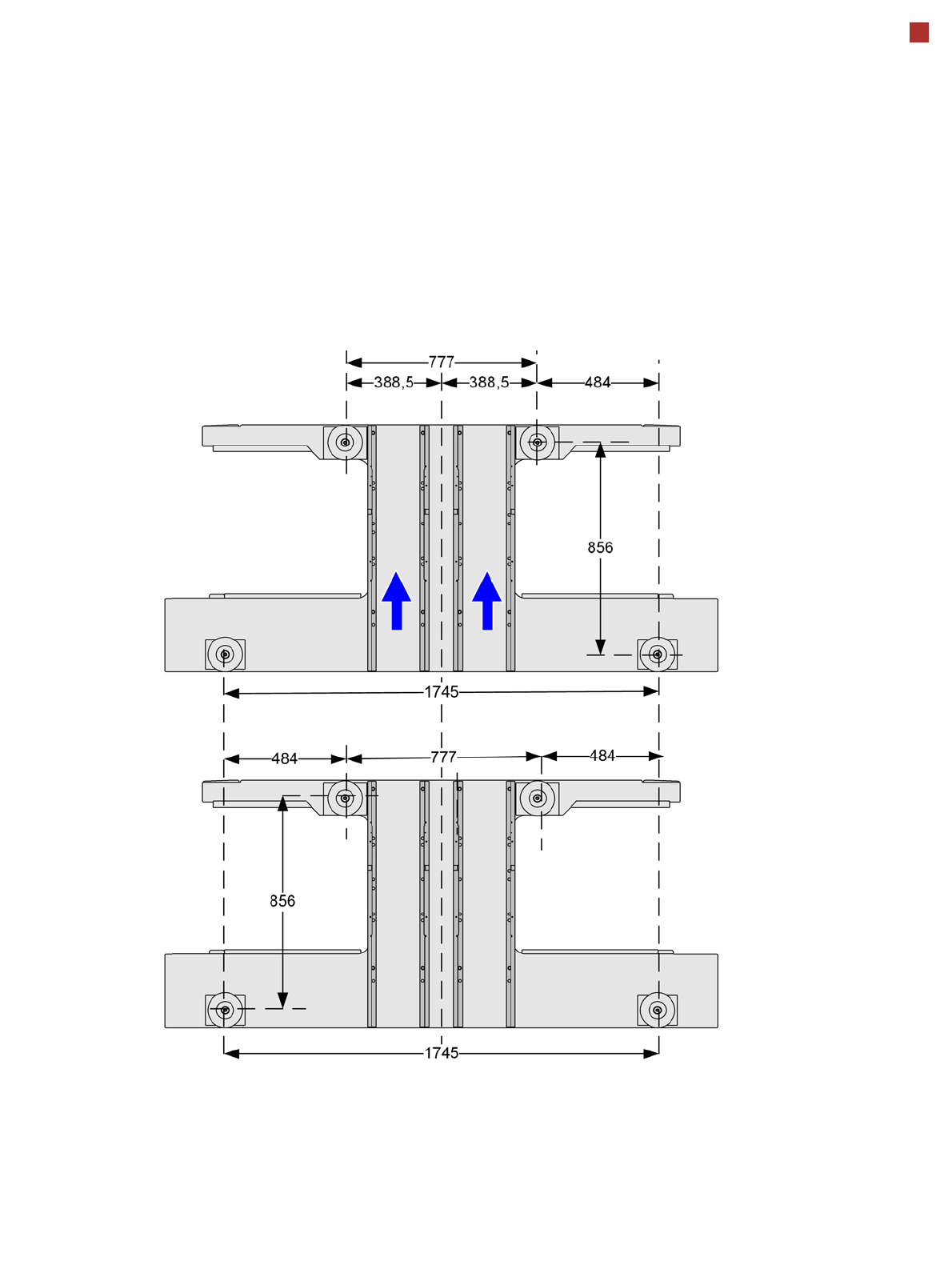

39 Technical data Machine foot clearances All dimensions in millimeters.
38
Technical data

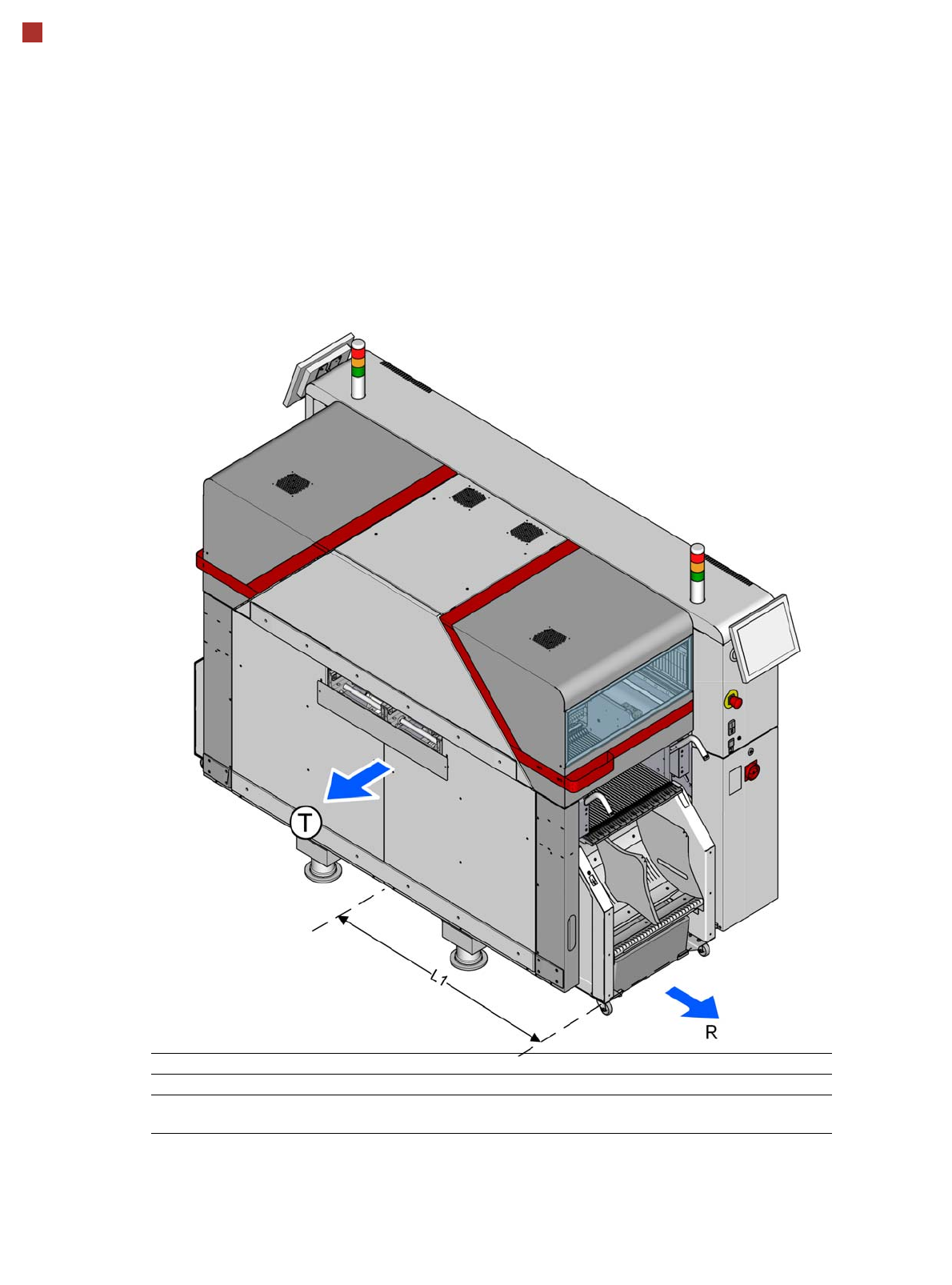

Maneuvering distances for component trolleys
Location (outside) Location (inside)
R Maneuvering distance 800 mm 680 mm
L1 Machine center to outer edge of component trol-
ley TX
1222 mm 1102 mm
39
Technical data
Machine foot clearances
All dimensions in millimeters.
40
Technical data

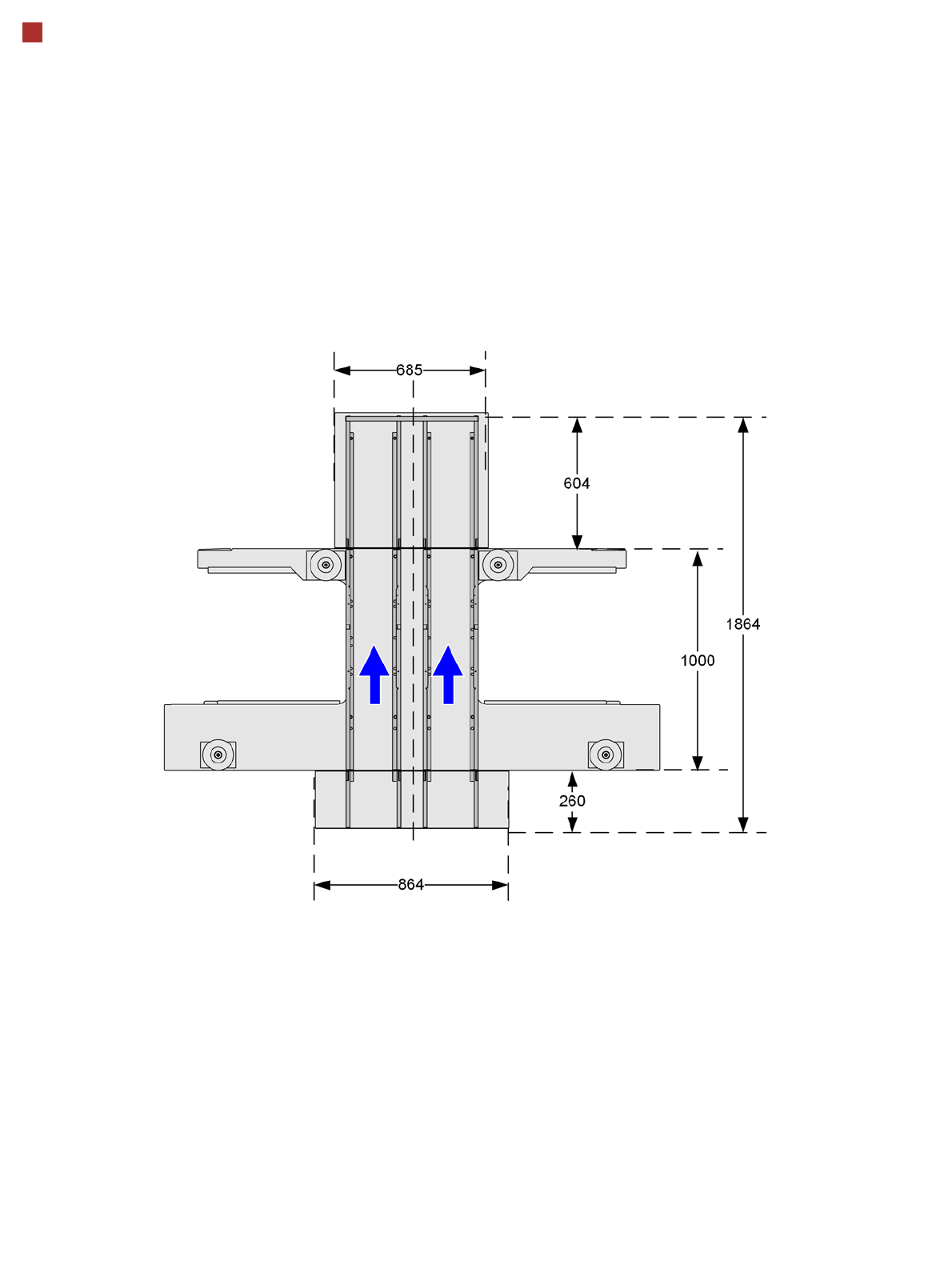

Clearance Values with Input/Output
Conveyor Extension
All dimensions in millimeters.
