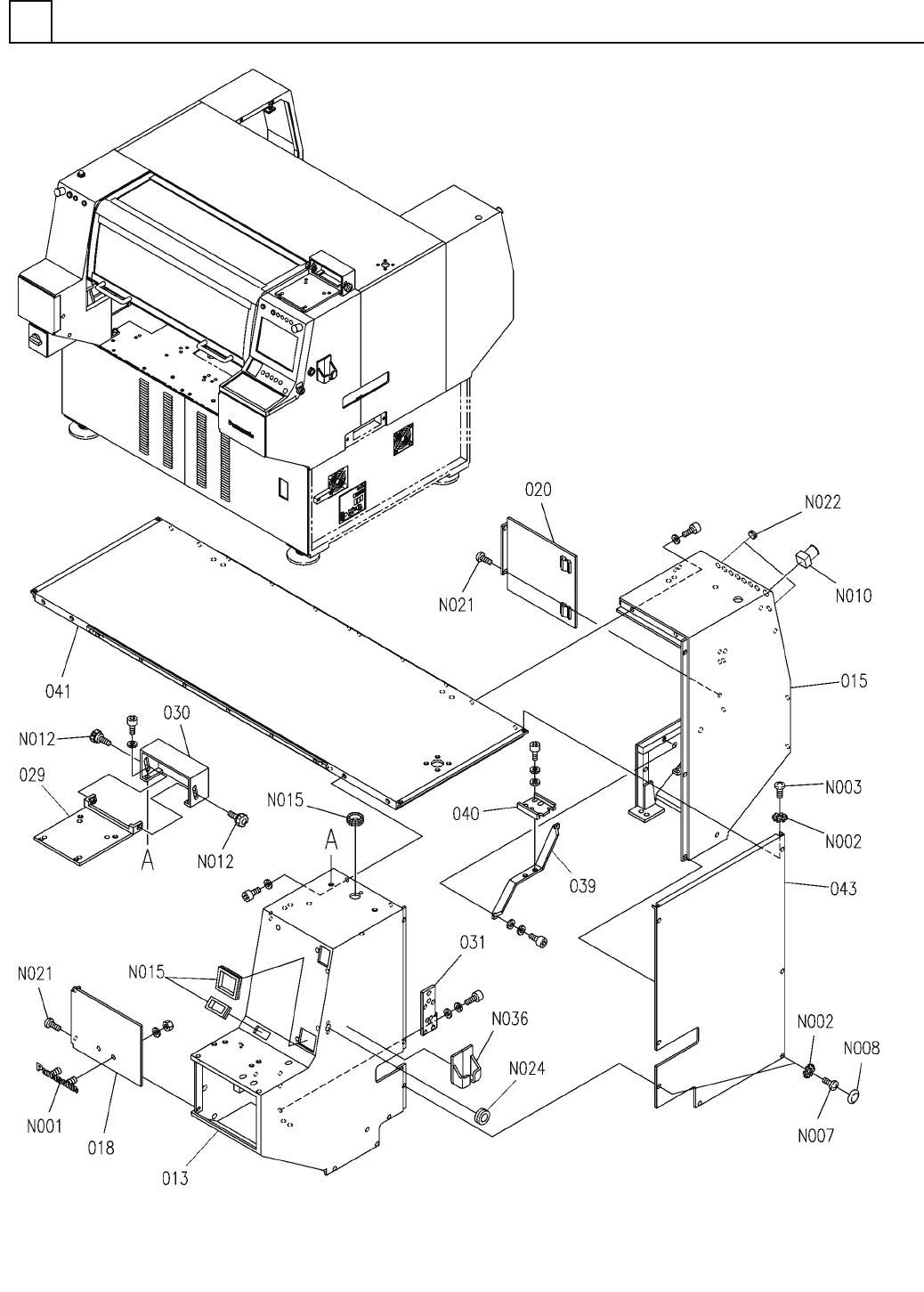

PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ 部(1) COVER S ECT.(1) 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610062200AA COVER UNIT ｶﾊ ﾞｰﾕﾆｯﾄ 1 013 N210078483AD FRONT COVER ﾌﾛﾝﾄｶﾊ ﾞｰ 1 015 N210078485AB REAR C OVER(RIGHT…
ｶﾊﾞｰ部(1)
COVER SECT.(1)
2
FN610062200AA_10-1
M21
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(1)
COVER SECT.(1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610062200AA
COVER UNIT ｶﾊ
ﾞｰﾕﾆｯﾄ
1
013 N210078483AD
FRONT COVER ﾌﾛﾝﾄｶﾊﾞｰ
1
015 N210078485AB
REAR COVER(RIGHT) ﾘｱｶﾊﾞｰ(RIGHT)
1018 108620252201
COVER ｶﾊ
ﾞｰ
1020 108620252401
COVER ｶﾊ
ﾞｰ
1
029 1086202564
BRACKET ﾌﾞﾗｹｯﾄ
1
030 1086202266
COVER ｶﾊﾞｰ
1031 108621257701
BRACKET ﾌ
ﾞﾗｹｯﾄ
1039 108628963102
BRACKET ﾌﾞﾗｹｯﾄ
1
040 108628963202
BRACKET ﾌﾞﾗｹｯﾄ
1041 N210078487AA
FRAME ﾌﾚｰﾑ
1043 N210078490AA
SIDE COVER(RIGHT) ｻｲﾄ
ﾞｶﾊﾞｰ(RIGHT)
P-18(screw) S
1
N001
KXF0DXPLA00
NAME PLATE ﾒｲﾊﾞﾝ
5 External toothed St
7
N002
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M5X8-4.8 A2J (Trivale
2
N003
N510018302AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
JB-A M5X8 +
10
N007
N510038044AA
BOLT ﾎ
ﾞﾙﾄ
M5X12
10
N008
N986YYYY-814
CAP ｷｬｯﾌﾟ
M22-PV/K02 S
1
N010
KXFP6FMNA00
SWITCH ｽｲｯﾁ
NPEM5-10
2
N012
N986NPEM510
KNOB ﾉﾌﾞ
KG-010
1
N015
N348KG010
BUSHING ﾌ
ﾞｯｼｭ
M4X8-4.8 A2J (Trivale
4
N021
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
C-30-SG-16A,WHITE
2
N022
N980C30S-034
GROMMET ｸﾞﾛﾒｯﾄ
C-30-SG-24A,WHITE
1
N024
N980C30S-065
GROMMET ｸ
ﾞﾛﾒｯﾄ
FUN-065
1
N036
N510004430AA
POCKET ﾎ
ﾟｹｯﾄ
M22
