BM221 Parts list(Mechanical20140224) - 第37页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 1 本体部(3 ) MAIN BO DY SECT.(3) 部 品 名 品 番 個数 備 考 R 1 R 2 1 006 N210053020AA BRACKE T(RIGHT) ﾌﾞﾗｹｯﾄ (RIGHT ) 1 007 N210053021AA BRACKE T(LEFT) ﾌﾞﾗｹｯﾄ(L EFT) 1 009 N21007…

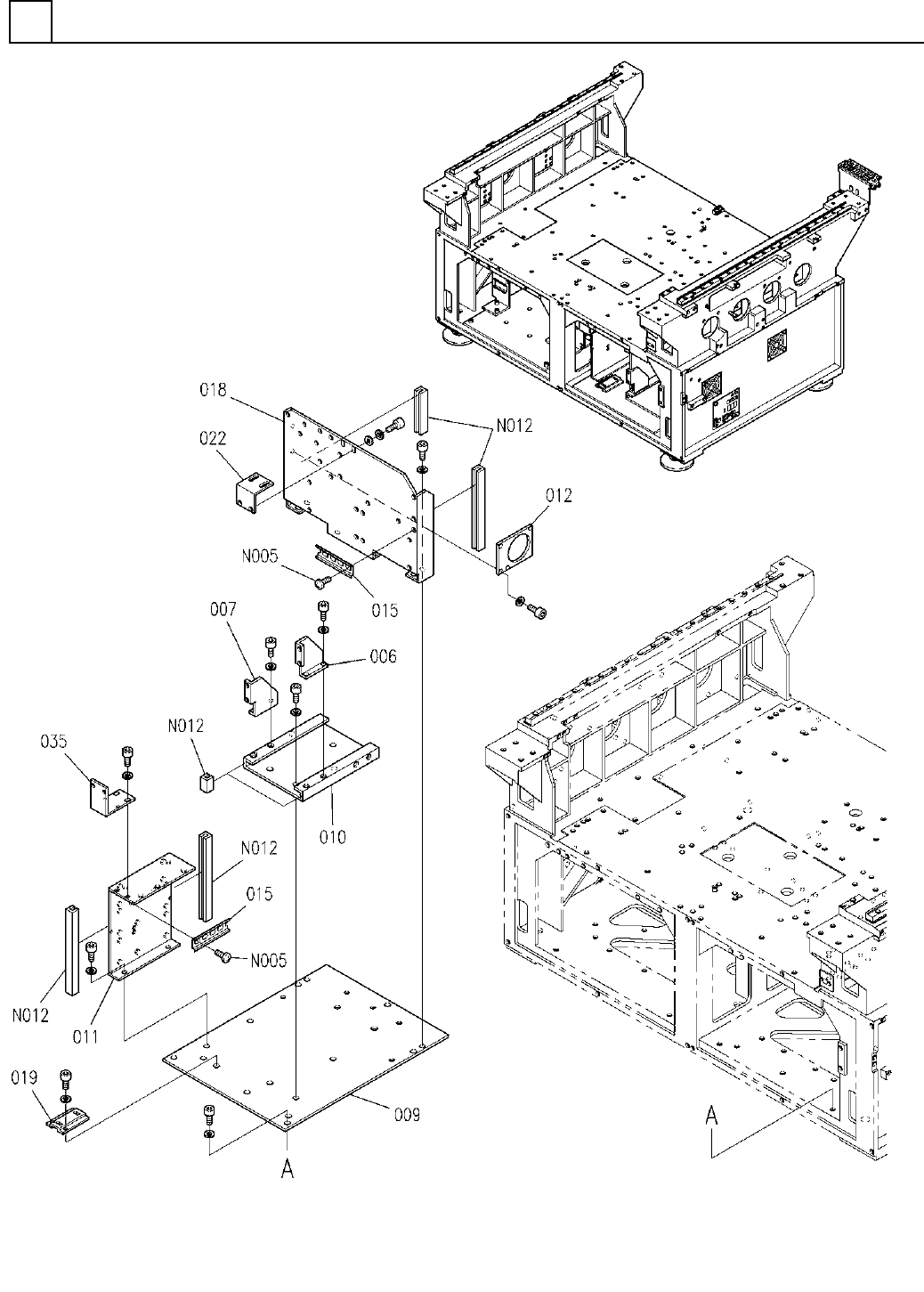

本体部(3)
MAIN BODY SECT.(3)
1
FN610063357AA_06-3
M5
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
本体部(3)
MAIN BODY SECT.(3)
部 品 名 品 番 個数
備 考
R
1
R
2
1006 N210053020AA
BRACKET(RIGHT) ﾌﾞﾗｹｯﾄ
(RIGHT)
1
007 N210053021AA
BRACKET(LEFT) ﾌﾞﾗｹｯﾄ(LEFT)
1
009 N210078956AA
PLATE ﾌﾟﾚｰﾄ
1010 N210053027AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1011 N210078805AA
BRACKET ﾌﾞﾗｹｯﾄ
1
012 108620103501
BRACKET ﾌﾞﾗｹｯﾄ
1
015 N210076507AB
RAIL ﾚｰﾙ
1018 N210087572AB
BRACKET ﾌ
ﾞﾗｹｯﾄ
1019 N210053019AA
BRACKET ﾌﾞﾗｹｯﾄ
1
022 1086201056
BRACKET ﾌﾞﾗｹｯﾄ
1035 N210059026AA
BRACKET ﾌﾞﾗｹｯﾄ
M4X5-4.8 A2J (Trivale
4
N005
N510018277AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
CE-032
1
N012
KXF0DUCAA00
TRIM ﾄﾘﾑ
M6
FN610063357AA_06-3

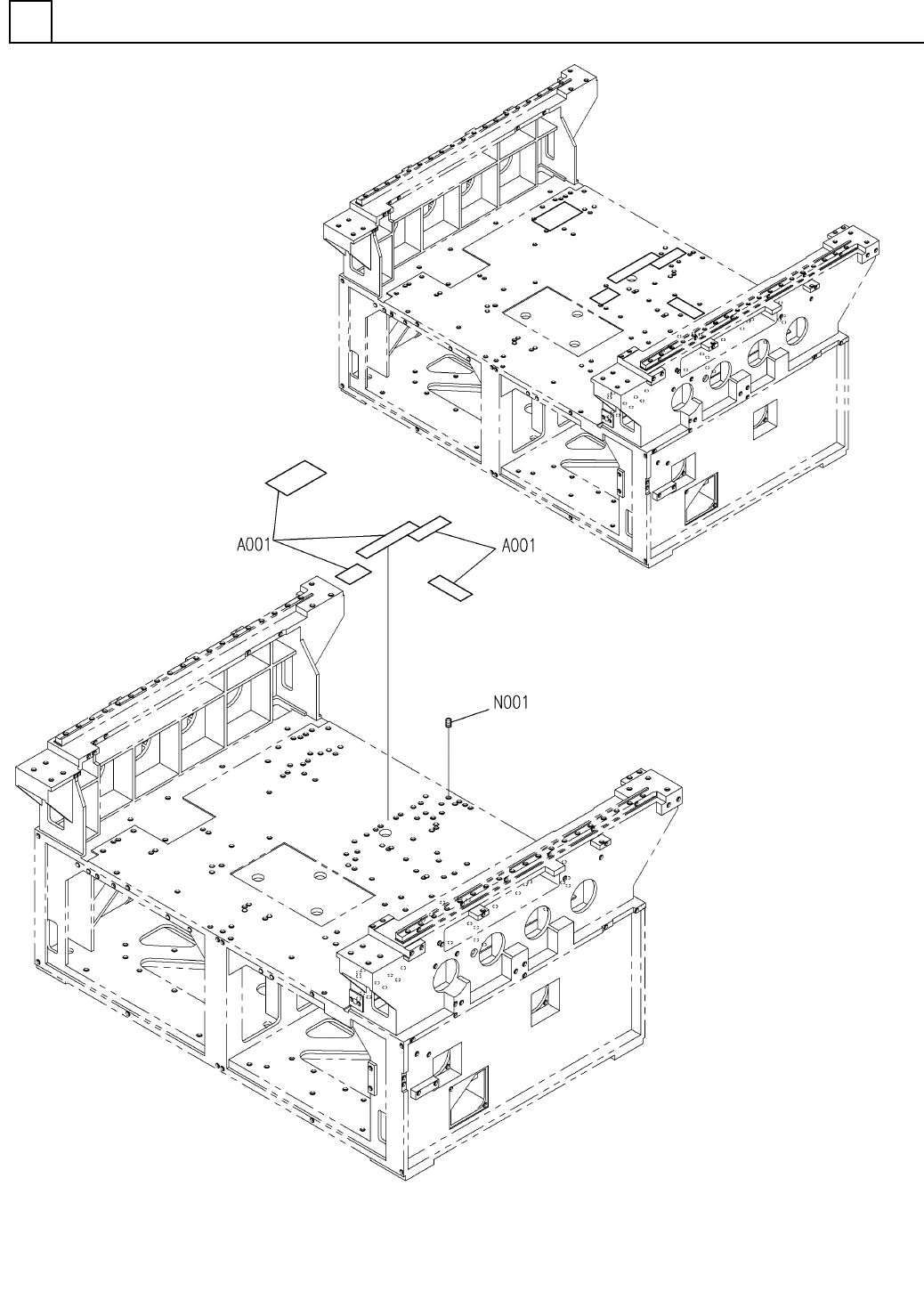

本体部(ﾀｯﾌﾟ穴埋め部)ﾀｲﾌﾟA
MAIN BODY SECT.(TAP MAKE UP FOR HOLE SECT.)TYPE-A
1
FN610066007AA_00
M7
