BM221 Parts list(Mechanical20140224) - 第104页

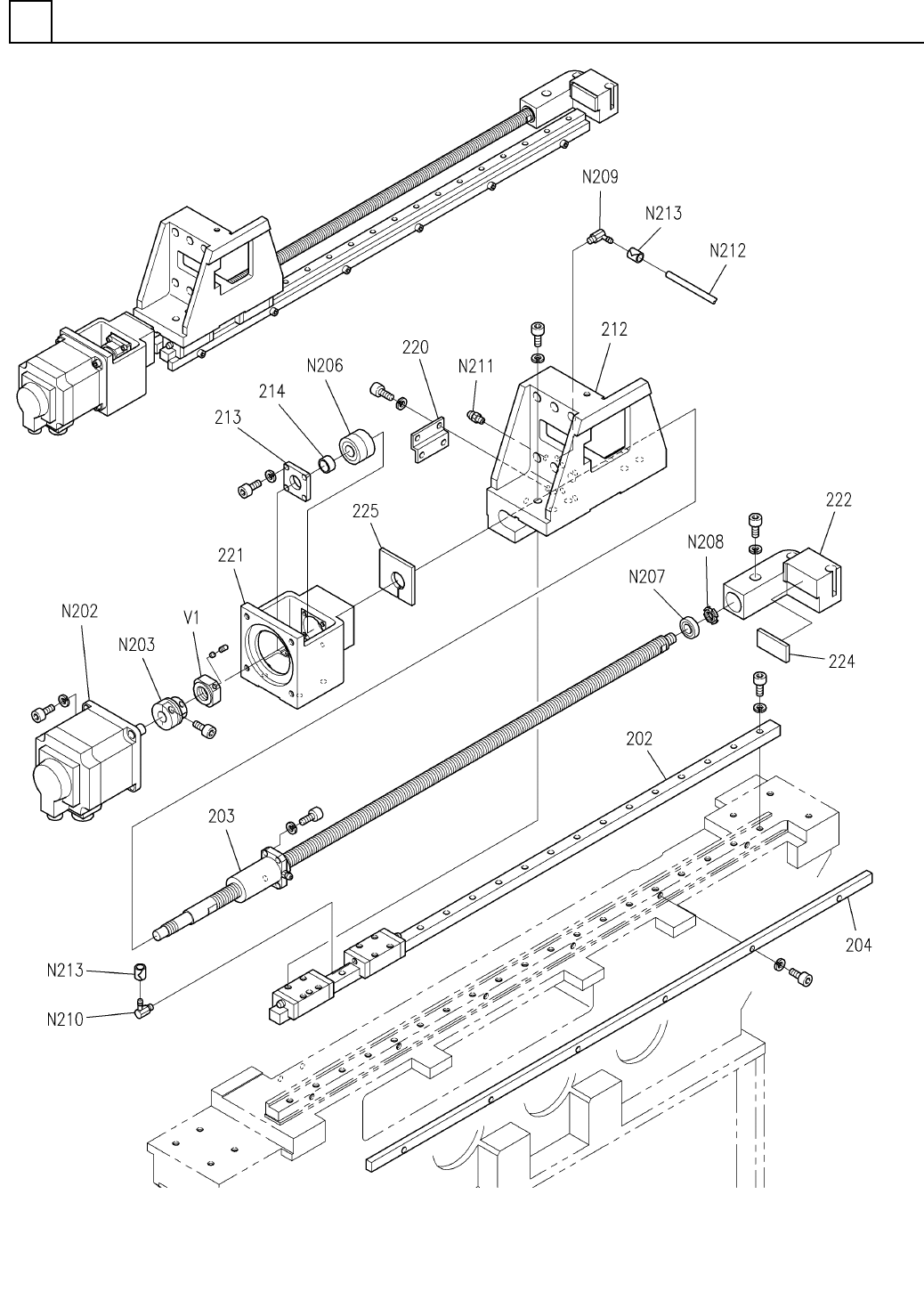

Y軸部(本体 部2) Y-AXIS SECT.(MAIN BO DY SECT.-2) 4 F10862-14-200-AM_0 2-2 M73
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
Y軸部(本体部1)
Y-AXIS SECT.(MAIN BODY SECT.-1)
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086214200
Y-AXIS UNIT Yｼ
ﾞｸﾕﾆｯﾄ
1
202 1086214202
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1
203 108621420304
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
1204 N210051840AA
PLATE ﾌﾟﾚｰﾄ
1208 N210074030AA
JOINT(LEFT) ｼﾞｮｲﾝﾄ
(LEFT)
1
213 1080704481
BEARING WEIGHT ﾍﾞｱﾘﾝｸﾞｳｴｲﾄ
1
214 1086204214
COLLAR ｶﾗｰ
1220 108621422001
BRACKET ﾌ
ﾞﾗｹｯﾄ
1221 N210023694AA
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ
(ﾓｰﾀ)
1
223 N210023695AA
BLOCK ﾌﾞﾛｯｸ
1224 N210023790AA
STOPPER ｽﾄｯﾊﾟ
1225 1086204209
STOPPER ｽﾄｯﾊ
ﾟ
HC-SFS102 S
1
N202
N606HCSFS102
MOTOR ﾓｰﾀ
SFC-050SA2-17B-24B
1
N203
N510024077AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
7204ADFCP10
1
N206
N510003514AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6003ZZ
1
N207
N510003167AA
BEARING ﾍﾞ
ｱﾘﾝｸﾞ
FU03SS
1
N208
KXF0236AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
106915
1
N209
N431106915
FITTING ﾂｷﾞﾃ
106916
1
N210
N431106916
FITTING ﾂｷﾞﾃ
A-MT6X1
1
N211
N560AMT6-130
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌ
ﾟﾙ
NYLON4
1
N212
N434SH0W-048
TUBE ﾁｭｰﾌﾞ
PZ4
2
N213
N434PZ4
BAND ﾊﾞﾝﾄﾞ
RN20
1V 1 N986RN20
LOCK-NUT ﾛｯｸﾅｯﾄ
M72
F10862-14-200-AM_02-1
Y軸部(本体部2)
Y-AXIS SECT.(MAIN BODY SECT.-2)
4
F10862-14-200-AM_02-2
M73
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
4
Y軸部(本体部2)
Y-AXIS SECT.(MAIN BODY SECT.-2)
部 品 名 品 番 個数 備 考
R
1
R
2
1202 1086214202
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1
203 108621420304
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
1
204 N210051840AA
PLATE ﾌﾟﾚｰﾄ
1212 N210074032AA
JOINT(RIGHT) ｼﾞｮｲﾝﾄ(RIGHT)
1213 1080704481
BEARING WEIGHT ﾍﾞｱﾘﾝｸ
ﾞｳｴｲﾄ
1
214 1086204214
COLLAR ｶﾗｰ
1
220 108621422001
BRACKET ﾌﾞﾗｹｯﾄ
1221 N210023694AA
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ
(ﾓｰﾀ)
1222 N210023696AA
BLOCK ﾌ
ﾞﾛｯｸ
1
224 N210023790AA
STOPPER ｽﾄｯﾊﾟ
1225 1086204209
STOPPER ｽﾄｯﾊﾟ
HC-SFS102 S
1
N202
N606HCSFS102
MOTOR ﾓｰﾀ
SFC-050SA2-17B-24B
1
N203
N510024077AA
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
7204ADFCP10
1
N206
N510003514AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6003ZZ
1
N207
N510003167AA
BEARING ﾍﾞｱﾘﾝｸﾞ
FU03SS
1
N208
KXF0236AA00
LOCK-NUT ﾛｯｸﾅｯﾄ
106915
1
N209
N431106915
FITTING ﾂｷﾞﾃ
106916
1
N210
N431106916
FITTING ﾂｷﾞﾃ
A-MT6X1
1
N211
N560AMT6-130
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
NYLON4
1
N212
N434SH0W-048
TUBE ﾁｭｰﾌ
ﾞ
PZ4
2
N213
N434PZ4
BAND ﾊﾞﾝﾄﾞ
RN20
1
V 1 N986RN20
LOCK-NUT ﾛｯｸﾅｯﾄ
M74
F10862-14-200-AM_02-2
