BM221 Parts list(Mechanical20140224) - 第114页
ﾌﾟﾘﾝﾄ基 板搬送部(可 動側) P.C.B. TRANSFER SECT .(MOVABLE SI DE) 5 FN610025533AA_05-3 M83
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5
ﾌﾟﾘﾝﾄ基板搬送部(ﾊﾟﾙｽﾓｰﾀ)
P.C.B. TRANSFER SECT.(PULSE MOTOR)
部 品 名 品 番 個数
備 考
R
1
R
2
2301 108110433002
PULLEY ﾌ
ﾟｰﾘｰ
1
307 N210038503AA
PLATE ﾌﾟﾚｰﾄ
1
312 N210037691AA
PLATE ﾌﾟﾚ-ﾄ
1313 N210037695AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1330 N210037696AA
BRACKET ﾌﾞﾗｹｯﾄ
2
331 N210037697AA
PLATE ﾌﾟﾚ-ﾄ
1
333 N210038505AA
BRACKET ﾌﾞﾗｹｯﾄ
MB022000
2
N308
N648MB022000
PULLEY ﾌ
ﾟｰﾘｰ
MB026000
6
N312
N648MB026000
PULLEY(TENSION) ﾌﾟｰﾘｰ(
ﾃﾝｼｮﾝ)
M3X8-4.8 A2J (Trivale
1
N316
N510018161AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
P917M
1
N317
N310P917M
SENSOR ｾﾝｻ
TA-4NB R/F 4.5WX1530
2
N318
N641TA4N1530
BELT(FLAT) ﾍﾞ
ﾙﾄ(ﾋﾗ)
M4X6-45H A2J (Trivale
4
N319
N510018373AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M4-6H-4T A2J (Trivale
8
N320
N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
CO0019B
2
N321
N5541BP22AN
O-RING Oﾘﾝｸﾞ
PK566HNAW-A4 S
1V 4 N610025155AA
MOTOR ﾓｰﾀ
PK566HNAW-A4 S
1
V 5 N610025156AA
MOTOR ﾓｰﾀ
M82
FN610025533AA_05-2

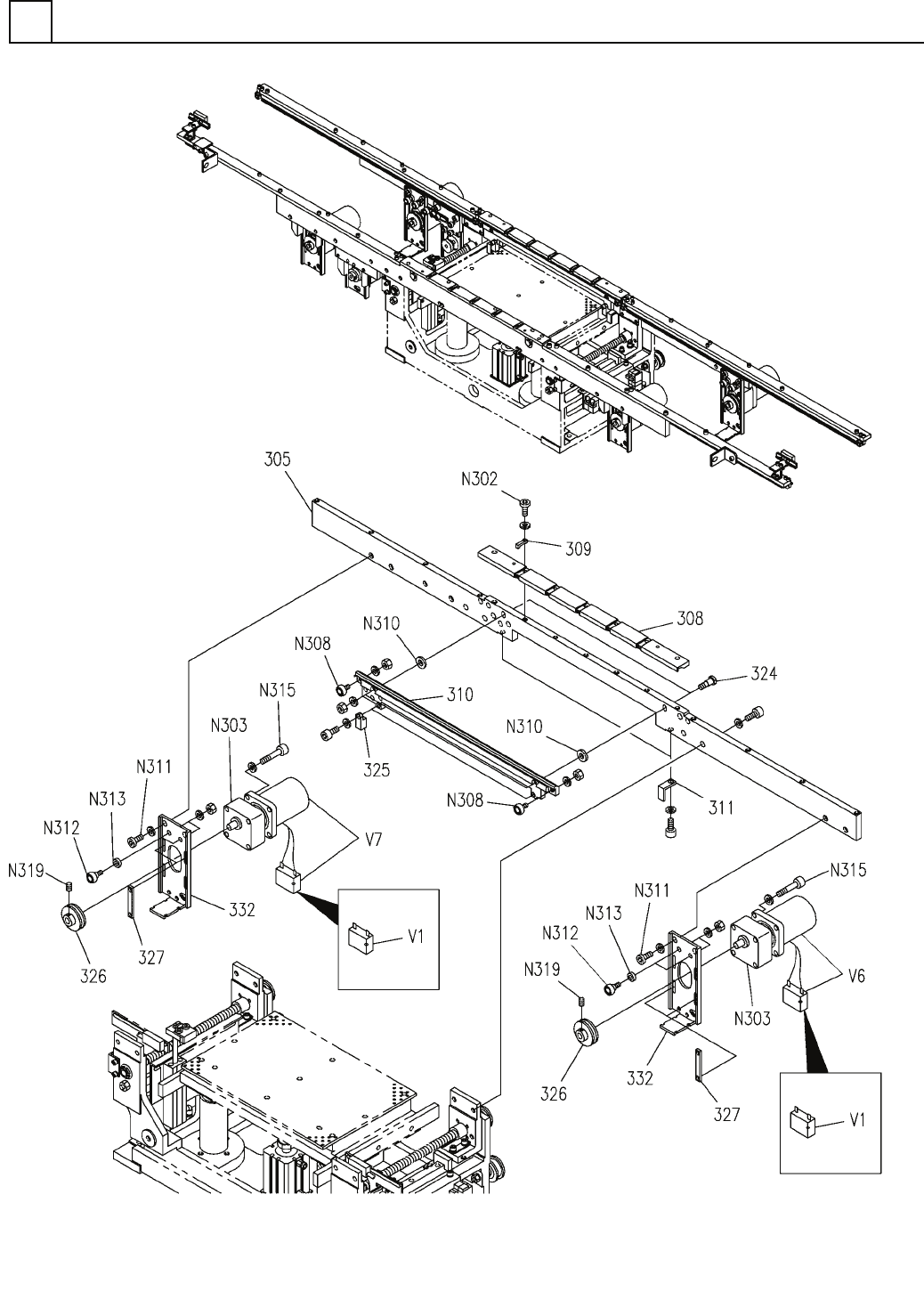

ﾌﾟﾘﾝﾄ基板搬送部(可動側)
P.C.B. TRANSFER SECT.(MOVABLE SIDE)
5
FN610025533AA_05-3
M83
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5
ﾌﾟﾘﾝﾄ基板搬送部(可動側)
P.C.B. TRANSFER SECT.(MOVABLE SIDE)
部 品 名 品 番 個数
備 考
R
1
R
2
1305 N210038192AA
RAIL ﾚｰﾙ
1
308 108620510702
RAIL(UPPER) ﾚｰﾙ(ｱｯﾊﾟｰ)
5
309 108620500901
SPRING ﾊﾞﾈ
1310 108620510902
RAIL(REAR) ﾚｰﾙ
(REAR)
2311 1086205211
STOPPER ｽﾄｯﾊ
ﾟ
2
324 1086205017
PIN ﾋﾟﾝ
2
325 108620511801
BLOCK ﾌﾞﾛｯｸ
2326 109970570201
PULLEY ﾌ
ﾟｰﾘｰ
4327 1086205227
NUT ﾅｯﾄ
2
332 1086205237
BRACKET ﾌﾞﾗｹｯﾄ
M4X12
7
N302
N986YYYY-K10
SCREW ﾈｼﾞ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
MX6G7.5BA
2
N303
N510031600AA
GEAR HEAD ｷﾞ
ﾔｰﾍｯﾄﾞ
MB022000
5
N308
N648MB022000
PULLEY ﾌﾟｰﾘｰ
WASM15-4-1
2
N310
N986WASM1541
WASHER ｻﾞｶﾞﾈ
M6X12
6
N311
N986YYYY-R80
BOLT ﾎﾞﾙﾄ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
MB026000
4
N312
N648MB026000
PULLEY(TENSION) ﾌﾟｰﾘｰ
(ﾃﾝｼｮﾝ)
WSSB8-4-5
4
N313
N560WSSB845
WASHER ｻﾞｶﾞﾈ
M4X40-10.9 A2J (Triva
8
N315
N510017365AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X6-45H A2J (Trivale
2
N319
N510018373AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MZAX040
2V 1 MZAX040
CAPACITOR ｺﾝﾃ
ﾞﾝｻ
M6RX6G4LG
1
V 6 N610133101AA
MOTOR ﾓｰﾀ
M6RX6G4LG
1
V 7 N610133100AA
MOTOR ﾓｰﾀ
M84
FN610025533AA_05-3
