ﾍｯﾄﾞ 部(駆動部1 ) HEAD S ECT.(DRIVING S ECT.-1) 8 FN610061358AA_03-1 M93
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
7
ｻﾌﾞｽﾃｰｼﾞ部(ｻﾎﾟｰﾄﾋﾟﾝ部)
SUB STAGE SECT.(SUPPORT PIN SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 1044012090
SUPPORT PIN UNIT ｻﾎﾟ
ｰﾄﾋﾟﾝﾕﾆｯﾄ
1
91 1999504001
PIN ﾋﾟﾝ
M92
F10440-12-090

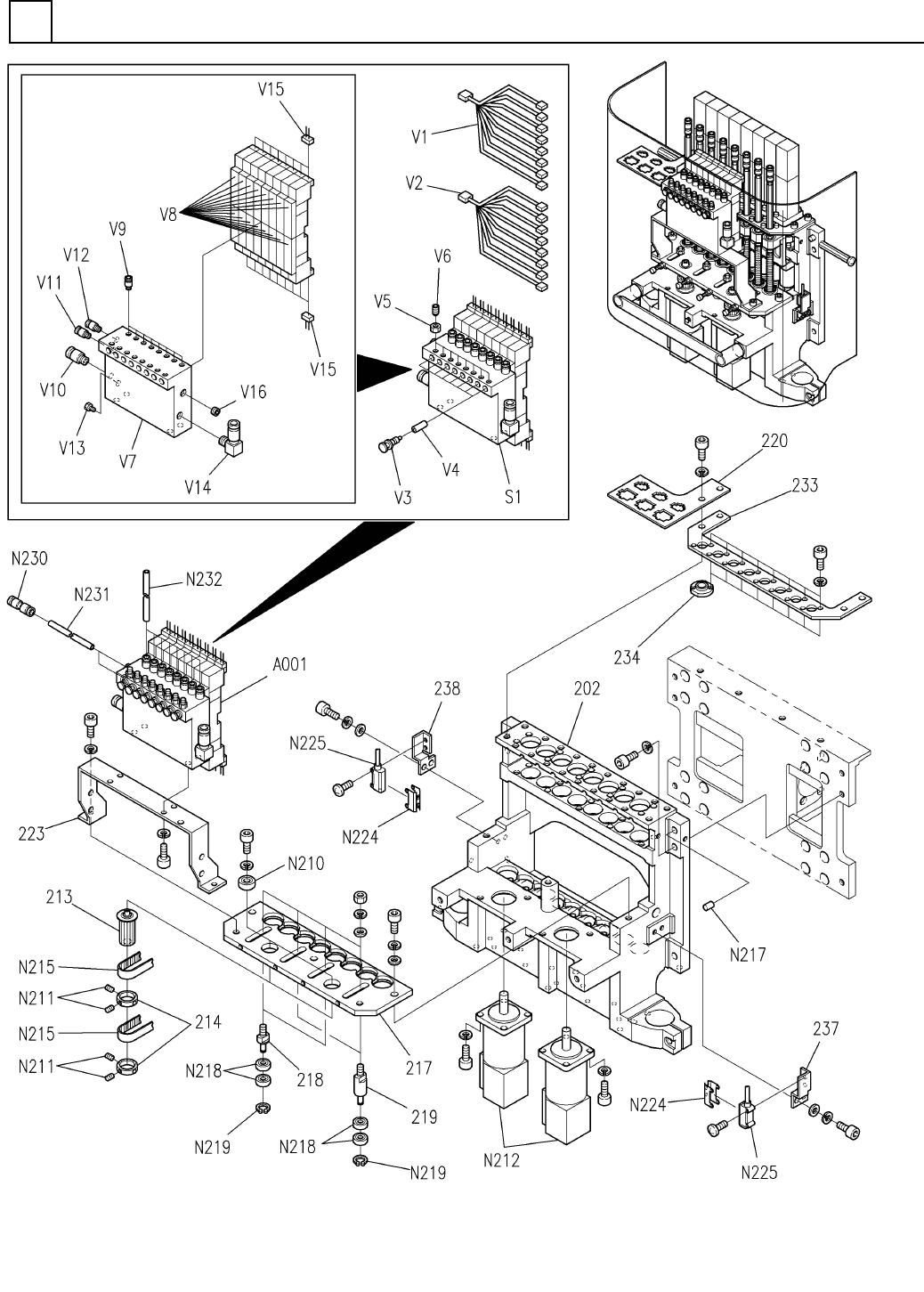

ﾍｯﾄﾞ部(駆動部1)
HEAD SECT.(DRIVING SECT.-1)
8
FN610061358AA_03-1
M93
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
8
ﾍｯﾄﾞ部(駆動部1)
HEAD SECT.(DRIVING SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610061358AA
HEAD DRIVING UNIT ﾍｯﾄ
ﾞｸﾄﾞｳﾕﾆｯﾄ
1
A001
N610015275AA
VALVE ﾊﾞﾙﾌﾞ
1
202 N210024501AA
MAIN BODY ﾒｲﾝﾎﾞﾃﾞｨ
2213 N210095777AB
PULLEY ﾌ
ﾟｰﾘｰ
4214 108620996201
FLANGE ﾌﾗﾝｼ
ﾞ
1
217 1086209217
PLATE ﾌﾟﾚｰﾄ
2
218 108620921802
SHAFT ｼｬﾌﾄ
2219 108620921901
SHAFT ｼｬﾌﾄ
1220 108620907901
BRACKET(CONNECTOR) ﾌﾞﾗｹｯﾄ
(ｺﾈｸﾀ)
1
223 108620922303
BRACKET ﾌﾞﾗｹｯﾄ
1233 1086289462
BRACKET ﾌﾞﾗｹｯﾄ
8234 N210025995AA
BUSHING ﾌ
ﾞｯｼｭ
1
237 108622923701
BRACKET ﾌﾞﾗｹｯﾄ
1
238 108622923801
BRACKET ﾌﾞﾗｹｯﾄ
625ZZ
2
N210
XLC625ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M3X3-45H A2J (Trivale
12
N211
N510018358AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
HC-KFS0336 S
2
N212
N510029994AA
MOTOR ﾓｰﾀ
192-2GT-9
4
N215
N6411922GT9
BELT ﾍﾞﾙﾄ
6X15,m6A,STEEL
2
N217
XPJ6A15FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
605ZZ
8
N218
XLC605ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
5,STEEL,P.C
4
N219
XUB5FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
E39-S63
1
N224
N310E39S63
SLIT PLATE ｽﾘｯﾄ
E3T-ST11
1
N225
KXF0DX51A00
SENSOR ｾﾝｻ
KQ2H06-08
2
N230
KXF0A0QAA00
FITTING ﾂｷ
ﾞﾃ
TU0604B-20
1
N231
KXF03U6AA00
TUBE ﾁｭｰﾌﾞ
TU0425B-20
1
N232
KXF03TEAA00
TUBE ﾁｭｰﾌﾞ
VV3QZ15-08-X86
1S 1 N510010900AA
VALVE ﾊ
ﾞﾙﾌﾞ
HSV1/1
1
V 1 308620901303
CABLE ｹｰﾌﾞﾙ
HSV2/1
1
V 2 308620901403
CABLE ｹｰﾌﾞﾙ
8V 3 108111011902
PIN ﾋﾟﾝ
8V 4 108111001801
FILTER ﾌｨﾙﾀ
M4-6H-4T A2J (Trivale
8
V 5 N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
BP-4-L
8
V 6 N510011397AA
PLUNGER ﾌﾟﾗﾝｼﾞｬｰ
VV3QZ15-08M5C-R-X86
1V 7 N510012401AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
VQZ115R-5LO-CP-X6
16V 8 N510012402AA
SOLENOID ｿﾚﾉｲﾄ
ﾞ
KJS04-M5
8
V 9 N431KJS04M5
FITTING ﾊｰﾌﾕﾆｵﾝ
KQS08-01S
1
V10 N431KQS0801S
FITTING ﾂｷﾞﾃ
KJS06-01S
1V11 N431KJS0601S
FITTING ﾂｷ
ﾞﾃ
KJS06-M5
1V12 N431KJS06M5
FITTING ﾊｰﾌﾕﾆｵﾝ
M-5P
1
V13 N431M5P
PLUG ﾌﾟﾗｸﾞ
KQ2VS08-01S
1V14 N431KQ2V-181
FITTING ﾂｷﾞﾃ
AXT661-14A-6
16V15 N411AXT6-410
CONNECTOR ｺﾈｸﾀ
PT1/8
1
V16 N42201
PLUG ﾌﾟﾗｸﾞ
M94
FN610061358AA_03-1
