BM221 Parts list(Mechanical20140224) - 第126页
ﾍｯﾄﾞ 部(駆動部2 ) HEAD S ECT.(DRIVING S ECT.-2) 8 FN610061358AA_03-2 M95
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
8
ﾍｯﾄﾞ部(駆動部1)
HEAD SECT.(DRIVING SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610061358AA
HEAD DRIVING UNIT ﾍｯﾄ
ﾞｸﾄﾞｳﾕﾆｯﾄ
1
A001
N610015275AA
VALVE ﾊﾞﾙﾌﾞ
1
202 N210024501AA
MAIN BODY ﾒｲﾝﾎﾞﾃﾞｨ
2213 N210095777AB
PULLEY ﾌ
ﾟｰﾘｰ
4214 108620996201
FLANGE ﾌﾗﾝｼ
ﾞ
1
217 1086209217
PLATE ﾌﾟﾚｰﾄ
2
218 108620921802
SHAFT ｼｬﾌﾄ
2219 108620921901
SHAFT ｼｬﾌﾄ
1220 108620907901
BRACKET(CONNECTOR) ﾌﾞﾗｹｯﾄ
(ｺﾈｸﾀ)
1
223 108620922303
BRACKET ﾌﾞﾗｹｯﾄ
1233 1086289462
BRACKET ﾌﾞﾗｹｯﾄ
8234 N210025995AA
BUSHING ﾌ
ﾞｯｼｭ
1
237 108622923701
BRACKET ﾌﾞﾗｹｯﾄ
1
238 108622923801
BRACKET ﾌﾞﾗｹｯﾄ
625ZZ
2
N210
XLC625ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M3X3-45H A2J (Trivale
12
N211
N510018358AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
HC-KFS0336 S
2
N212
N510029994AA
MOTOR ﾓｰﾀ
192-2GT-9
4
N215
N6411922GT9
BELT ﾍﾞﾙﾄ
6X15,m6A,STEEL
2
N217
XPJ6A15FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
605ZZ
8
N218
XLC605ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
5,STEEL,P.C
4
N219
XUB5FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
E39-S63
1
N224
N310E39S63
SLIT PLATE ｽﾘｯﾄ
E3T-ST11
1
N225
KXF0DX51A00
SENSOR ｾﾝｻ
KQ2H06-08
2
N230
KXF0A0QAA00
FITTING ﾂｷ
ﾞﾃ
TU0604B-20
1
N231
KXF03U6AA00
TUBE ﾁｭｰﾌﾞ
TU0425B-20
1
N232
KXF03TEAA00
TUBE ﾁｭｰﾌﾞ
VV3QZ15-08-X86
1S 1 N510010900AA
VALVE ﾊ
ﾞﾙﾌﾞ
HSV1/1
1
V 1 308620901303
CABLE ｹｰﾌﾞﾙ
HSV2/1
1
V 2 308620901403
CABLE ｹｰﾌﾞﾙ
8V 3 108111011902
PIN ﾋﾟﾝ
8V 4 108111001801
FILTER ﾌｨﾙﾀ
M4-6H-4T A2J (Trivale
8
V 5 N510017855AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
BP-4-L
8
V 6 N510011397AA
PLUNGER ﾌﾟﾗﾝｼﾞｬｰ
VV3QZ15-08M5C-R-X86
1V 7 N510012401AA
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
VQZ115R-5LO-CP-X6
16V 8 N510012402AA
SOLENOID ｿﾚﾉｲﾄ
ﾞ
KJS04-M5
8
V 9 N431KJS04M5
FITTING ﾊｰﾌﾕﾆｵﾝ
KQS08-01S
1
V10 N431KQS0801S
FITTING ﾂｷﾞﾃ
KJS06-01S
1V11 N431KJS0601S
FITTING ﾂｷ
ﾞﾃ
KJS06-M5
1V12 N431KJS06M5
FITTING ﾊｰﾌﾕﾆｵﾝ
M-5P
1
V13 N431M5P
PLUG ﾌﾟﾗｸﾞ
KQ2VS08-01S
1V14 N431KQ2V-181
FITTING ﾂｷﾞﾃ
AXT661-14A-6
16V15 N411AXT6-410
CONNECTOR ｺﾈｸﾀ
PT1/8
1
V16 N42201
PLUG ﾌﾟﾗｸﾞ
M94
FN610061358AA_03-1
ﾍｯﾄﾞ部(駆動部2)
HEAD SECT.(DRIVING SECT.-2)
8

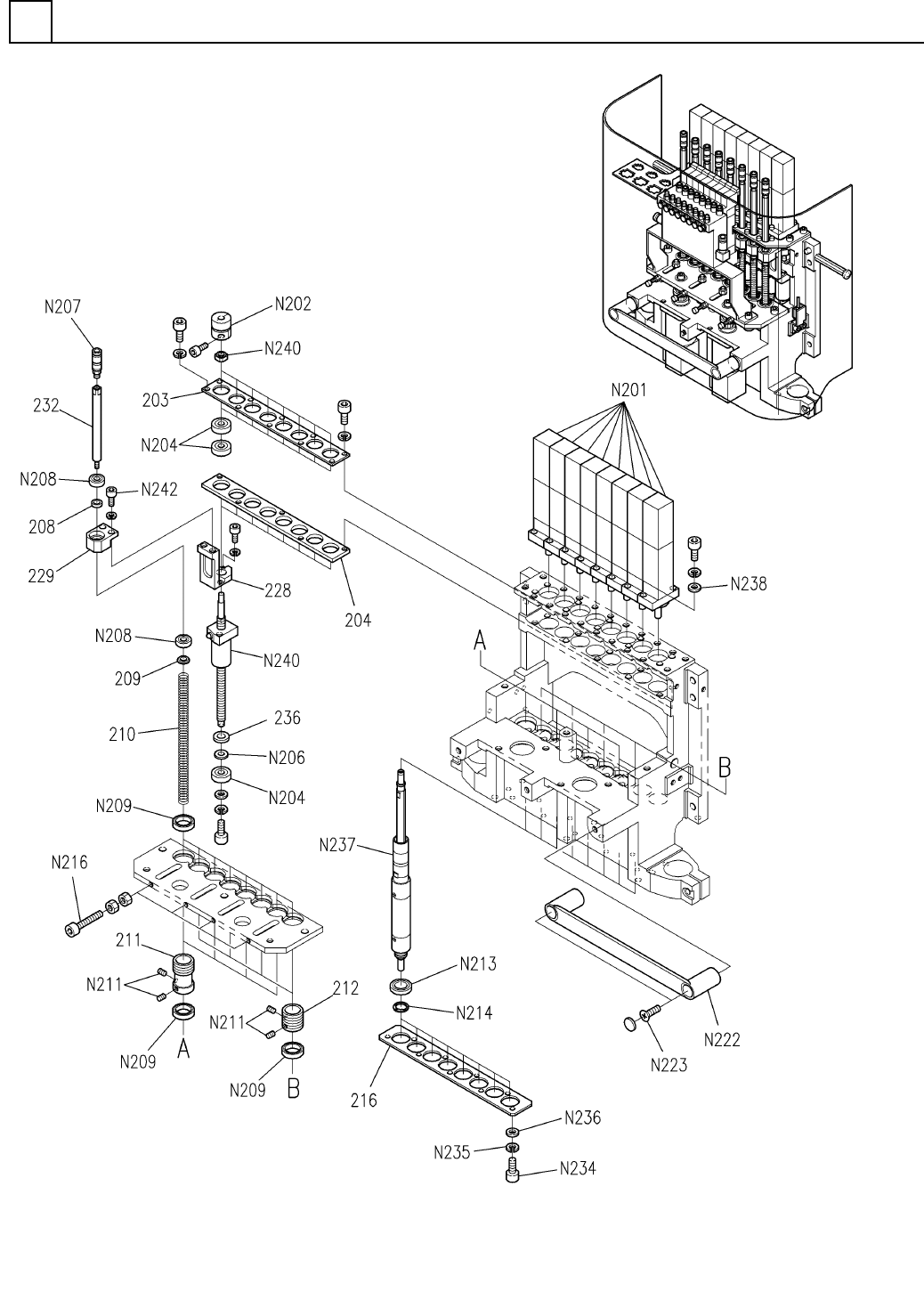

FN610061358AA_03-2
M95
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
8
ﾍｯﾄﾞ部(駆動部2)
HEAD SECT.(DRIVING SECT.-2)
部 品 名 品 番 個数
備 考
R
1
R
2
1203 108620910501
PLATE ﾌ
ﾟﾚｰﾄ
1
204 1086209106
PLATE ﾌﾟﾚｰﾄ
8
208 108620900702
COLLAR ｶﾗｰ
8209 N210101473AA
COLLAR ｶﾗｰ
8210 1086209043
SPRING ｽﾌﾟ
ﾘﾝｸﾞ
4
211 N210095776AA
PULLEY ﾌﾟｰﾘｰ
4
212 N210095775AA
PULLEY ﾌﾟｰﾘｰ
1216 N210046993AA
COVER ｶﾊ
ﾞｰ
8228 108620922802
HANGER ﾊﾝｶ
ﾞｰ
8
229 1086289291
HOUSING ﾊｳｼﾞﾝｸﾞ
8232 108628946101
SHAFT ｼｬﾌﾄ
8236 1086209236
STOPPER ｽﾄｯﾊ
ﾟ
HC-BH0236-S11 S
8
N201
N510029993AA
MOTOR ﾓｰﾀ
SFC-010DA-T006
8
N202
N644SFC0-195
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
626ZZ
24
N204
XLC626ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
WSSB13-6-2
8
N206
N986WSSB1362
WASHER ｻ
ﾞｶﾞﾈ
KSH04-M5
8
N207
N431KSH04M5
FITTING ﾂｷﾞﾃ
696ZZ1MC2
16
N208
N510003424AA
BEARING ﾍﾞｱﾘﾝｸﾞ
6702LLF
16
N209
N510003270AA
BEARING ﾍﾞｱﾘﾝｸﾞ
M3X3-45H A2J (Trivale
16
N211
N510018358AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
6801ZZC2
8
N213
N510003278AA
BEARING ﾍﾞｱﾘﾝｸﾞ
ISTW-12
8
N214
KXF0DAYAA00
RETAINING RING C-TYPE, SHAF ﾏﾙ S ｶﾞﾀ ﾄﾒﾜ
ACB3-35
4
N216
N986ACB335
BOLT ﾎ
ﾞﾙﾄ
A-42-J-3
1
N222
N980A42J3
KNOB ﾄｯﾃ
M6X20-4.8 A2J (Trival
2
N223
N510018204AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X8-10.9 A2S (Trival
9
N234
N510017342AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
No.2 3 S A2S (Trivale
9
N235
N510018328AA
SPRING WASHER ﾊﾞ
ﾈｻﾞｶﾞﾈ
3 10H A2S (Trivalent)
9
N236
N510018495AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
LSAGT8C2R236E671
8
N237
N513LSAG-B29
BALL SPLINE ﾎﾞｰﾙｽﾌﾟﾗｲﾝ
4 10H A2J (Trivalent)
16
N238
N510018479AA
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ
BNK0812S-3GS+156.5LC7
8
N240
N643BNK0-610
BALL SCREW ﾎﾞ
ｰﾙﾈｼﾞ
M3X10
16
N242
N986YYYY-866
SCREW ﾈｼﾞ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
M96
FN610061358AA_03-2
