BM221 Parts list(Mechanical20140224) - 第177页
PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 16 ﾄﾚｲﾘﾌﾀ 部(5) TRAY LI FTER SECT.(5) 部 品 名 品 番 個数 備 考 R 1 R 2 1 029 108628951501 RIGHT FRAME ﾌﾚｰﾑ (RIGHT ) 1 030 108628951601 LEFT F RAME ﾌﾚｰﾑ(LEFT ) 4 031 1086289514…

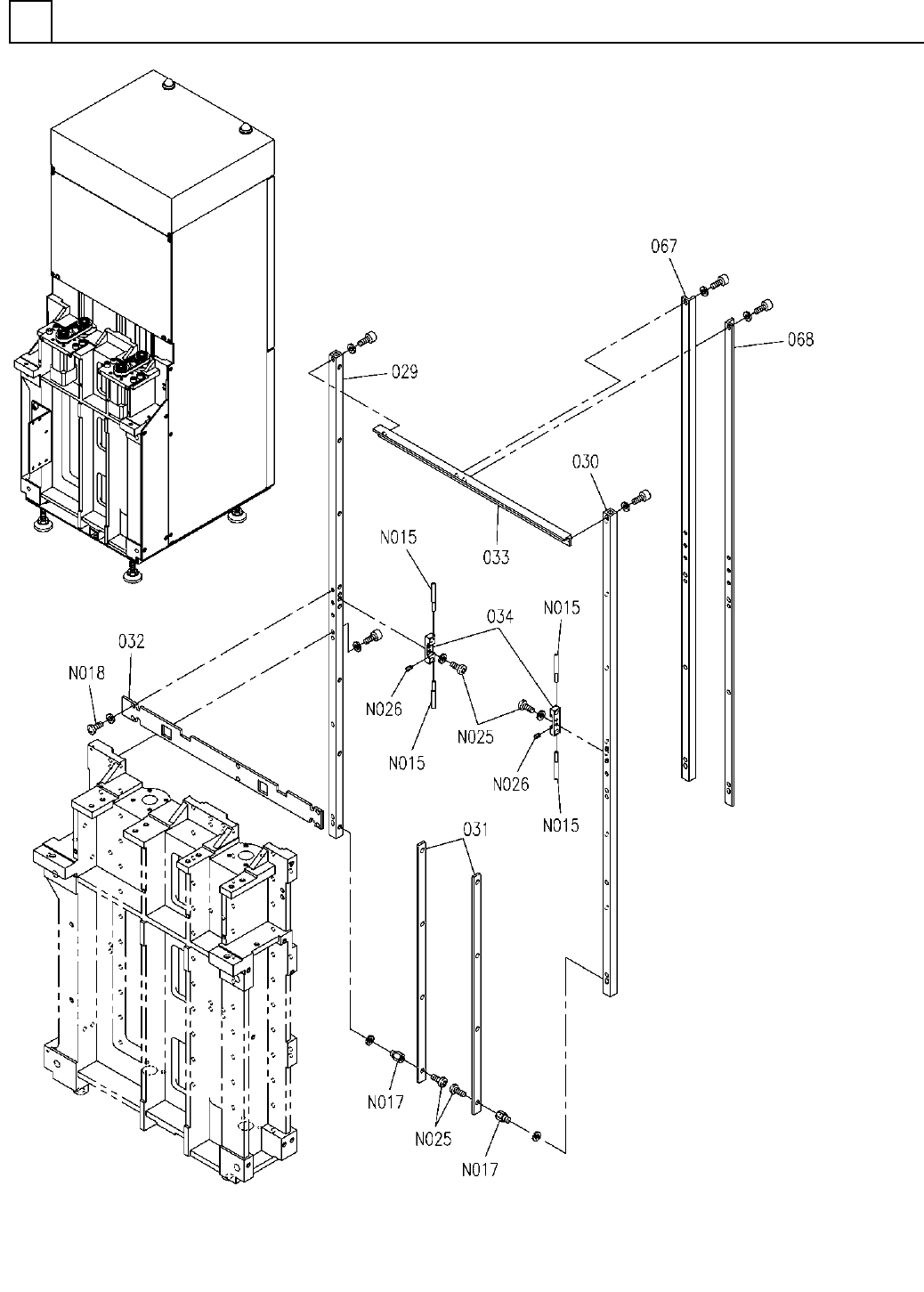

ﾄﾚｲﾘﾌﾀ部(5)
TRAY LIFTER SECT.(5)
16
FN610065872AA_06-5
M145
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
16
ﾄﾚｲﾘﾌﾀ部(5)
TRAY LIFTER SECT.(5)
部 品 名 品 番 個数
備 考
R
1
R
2
1029 108628951501
RIGHT FRAME ﾌﾚｰﾑ
(RIGHT)
1
030 108628951601
LEFT FRAME ﾌﾚｰﾑ(LEFT)
4
031 1086289514
PLATE ﾌﾟﾚｰﾄ
1032 1086251337
COVER ｶﾊ
ﾞｰ
1033 1086251338
BRACKET ﾌﾞﾗｹｯﾄ
2
034 1086289513
BLOCK ﾌﾞﾛｯｸ
1
067 N210109163AA
FRAME ﾌﾚｰﾑ
1068 N210109164AA
FRAME ﾌﾚｰﾑ
E32-T22R
2
N015
N310E32T22R
SENSOR ｾﾝｻ
BSF-410E
16
N017
N510017082AA
SPACER ｽﾍﾟｰｻ
M4X5-4.8 A2J (Trivale
6
N018
N510018277AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4X8
20
N025
N986YYYY-514
SCREW ﾈｼﾞ(ｺ
ﾞｸﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
M2.5X5-45H A2J (Triva
4
N026
N510018406AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
