PART No. ｲﾗｽﾄ No. REF No. PA RT NAME REM ARKS Q'TY 17 T-W軸 部(3) T-W AX IS SECT.(3) 部 品 名 品 番 個数 備 考 R 1 R 2 4 014 108625201401 PIN ﾋ ﾟﾝ 4 015 108625201501 PULLEY(T IMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝ ｸﾞ) 2 018 108625201802 PLATE ﾌﾟﾚｰ…

100%1 / 458
T-W軸部(3)
T-W AXIS SECT.(3)
17
F10862-52-000-AK_01-3
M157
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
17
T-W軸部(3)
T-W AXIS SECT.(3)
部 品 名 品　 番 個数 備 考
R
1
R
2
4014 108625201401
PIN ﾋ
ﾟﾝ
4
015 108625201501
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
2
018 108625201802
PLATE ﾌﾟﾚｰﾄ
2033 108625203301
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
2034 108625203401
RING ﾘﾝｸ
ﾞ
2
040 108628927102
BLOCK ﾌﾞﾛｯｸ
2
041 1086289272
SPRING ﾊﾞﾈ
2042 108628927301
LEVER ﾚﾊ
ﾞｰ
2043 1086289274
ROLLER ﾛｰﾗ
2
049 1086252049
BRACKET ﾌﾞﾗｹｯﾄ
STW-6
4
N003
XUBNSTW6
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
F608ZZ
2
N004
XLCNF608ZZ
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
608ZZ
2
N005
XLCN608ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M6-6H-4T A2J (Trivalen
2
N007
N510017869AA
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
696ZZ
8
N008
XLCN696ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
1569-3GT-12
2
N019
N6411569-774
BELT ﾍ
ﾞﾙﾄ
FC3-D3X11.8
4
N023
N507FC3D-033
NEEDLE ROLLER ﾆｰﾄﾞﾙﾛｰﾗ
FC3-D2.5X7.8
2
N024
N507FC3D-034
NEEDLE ROLLER ﾆｰﾄﾞﾙﾛｰﾗ
MSB8-15
2
N027
N986MSB815
BOLT ﾎﾞﾙﾄ
WSSB10-8-2
2
N028
N986WSSB1082
WASHER ｻﾞ
ｶﾞﾈ
WSSB10-6-2
2
N029
N560WSSB1062
WASHER ｻﾞｶﾞﾈ
HC-KFS13 S
1
V 1 308625115201
MOTOR ﾓｰﾀ
HC-KFS13 S
1V 2 308625115401
MOTOR ﾓｰﾀ
M158
F10862-52-000-AK_01-3

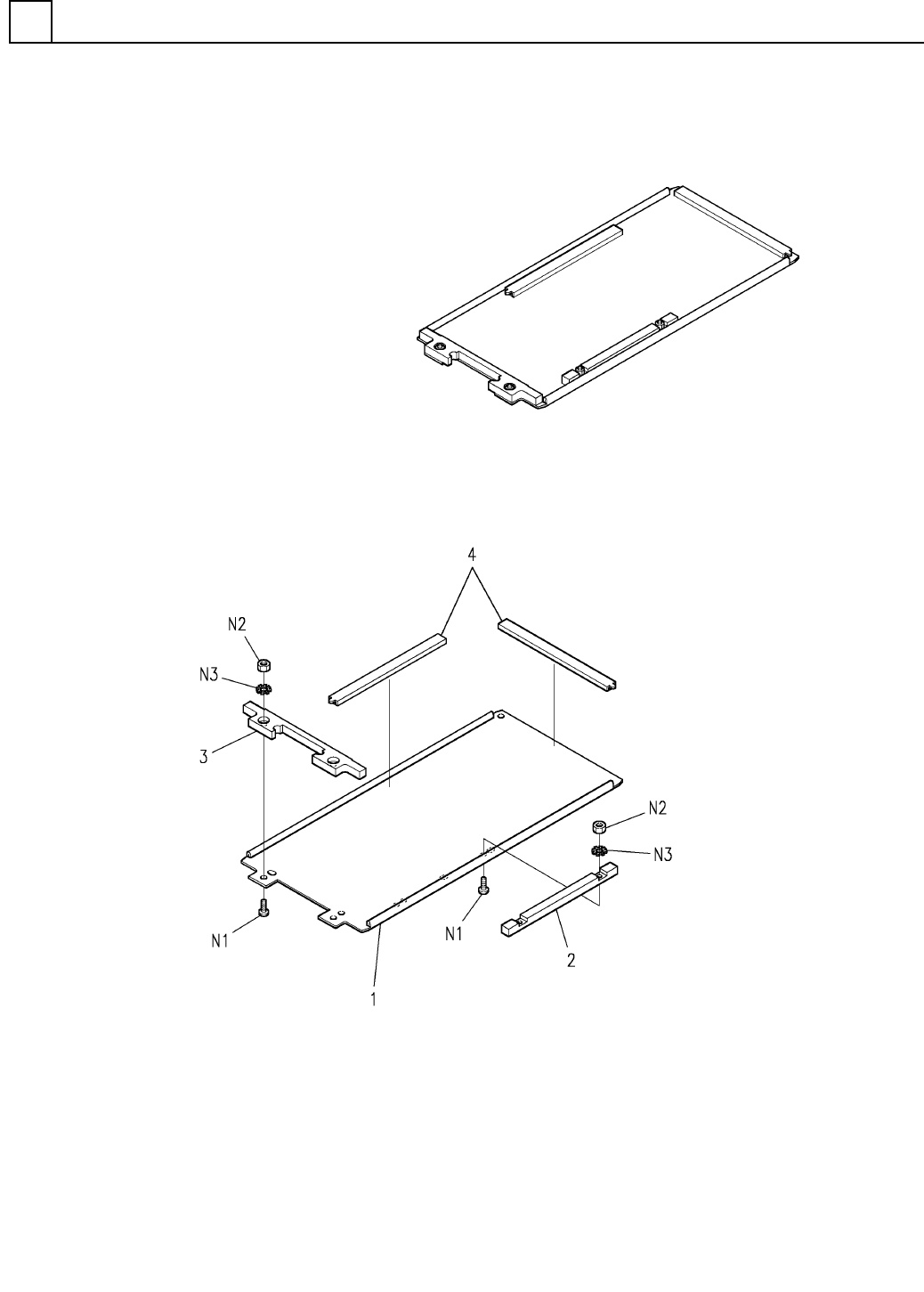

ﾄﾚｲﾌﾟﾚｰﾄ部
TRAY PLATE SECT.
18
F10862-54-000-AA
M159
