ｱﾝﾀﾞｰｶ ﾒﾗ部(□36) UNDER CAMERA SECT.(3 6 FIELD) 23 F10862-13-290-AD_0 3 M177
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
22
ﾏｶﾞｼﾞﾝ部
MAGAZINE SECT.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610040946AA
MAGAZINE UNIT ﾏｶ
ﾞｼﾞﾝﾕﾆｯﾄ
1
002 N210056592AA
PLATE ﾌﾟﾚｰﾄ
4
003 N210056586AA
RACK ﾗｯｸ
1004 N210078093AA
BLOCK ﾌﾞﾛｯｸ
1005 N210056588AA
BRACKET ﾌ
ﾞﾗｹｯﾄ
1
006 N210068634AA
DOOR ﾄﾞｱ
1
007 N210056590AB
RACK ﾗｯｸ
2010 N210068076AA
PLATE ﾌ
ﾟﾚｰﾄ
2011 N210064300AA
HINGE ﾋﾝｼ
ﾞ
8
N001
108625102101
RACK(GUIDE) ﾗｯｸ(ｶﾞｲﾄﾞ)
A-6-2
2
N002
N510023325AA
DRAWER PULL ﾄｯﾃ
TL-105S(1202)
1
N003
N982TL10-013
MAGNET ﾏｸ
ﾞﾈｯﾄ
TH-84D-1(2528)
2
N004
N982TH2528
HINGE ﾋﾝｼﾞ
TH-FH-M4X5L Trivalent
4
N011
N510028566AA
SCREW ﾈｼﾞ
3X8,h8B,STEEL
16
N012
XPJ3E8FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
3X8 A2J (Trivalent)
40
N013
N510018741AA
PAN HEAD TAPPING SCREW ﾅﾍﾞ
ﾀｯﾌﾟﾀｲﾄﾈｼﾞ
M5X6-4.8 A2J (Trivalen
8
N014
N510018196AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
TH-FH-M3X6L Trivalent
4
N015
N510028693AA
SCREW ﾈｼﾞ
TH-FH-M4X10L Trivalent
5
N016
N510028692AA
SCREW ﾈｼﾞ
1
N017
N510034205AA
LABEL ﾗﾍ
ﾞﾙ
M176
FN610040946AA_05
ｱﾝﾀﾞｰｶﾒﾗ部(□36)
UNDER CAMERA SECT.(36 FIELD)
23
F10862-13-290-AD_03
M177
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
23

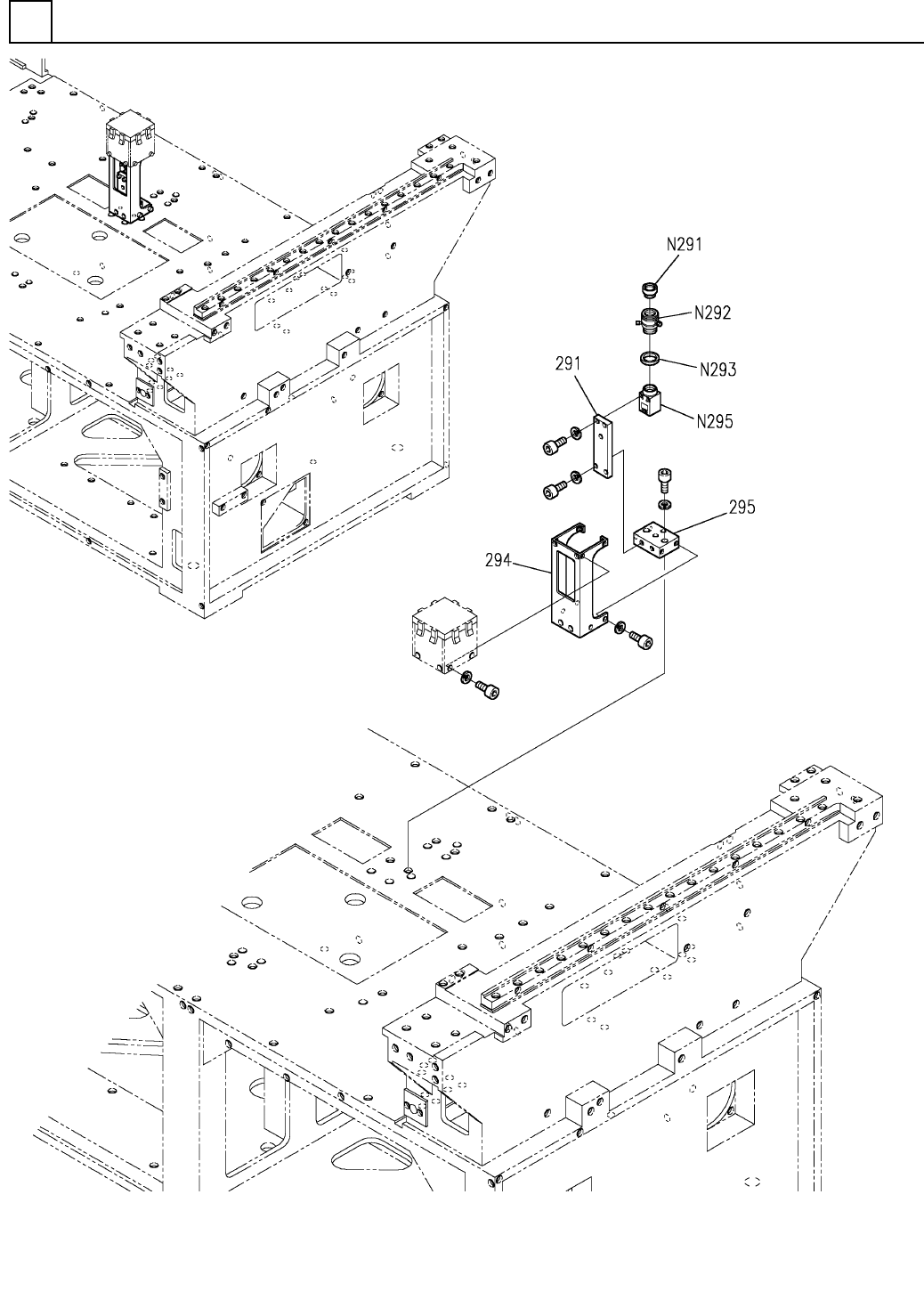

ｱﾝﾀﾞｰｶﾒﾗ部(□36)
UNDER CAMERA SECT.(36 FIELD)
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086213290
UNDER CAMERA UNIT ｱﾝﾀ
ﾞｰｶﾒﾗﾕﾆｯﾄ
1
291 108621329101
PLATE ﾌﾟﾚｰﾄ
1
294 N210038181AA
STAND ｽﾀﾝﾄﾞ
1295 108621319501
BASE ﾍﾞｰｽ
D25.5MMUV
1
N291
N941D25.-074
FILTER ﾌｨﾙﾀ
25HB
1
N292
N94125HB
LENS ﾚﾝｽﾞ
EX-010
1
N293
N941EX010
RING ﾘﾝｸﾞ
CS8550DI-10 S
1
N295
N510023800AA
CAMERA ｶﾒﾗ
M178
F10862-13-290-AD_03
