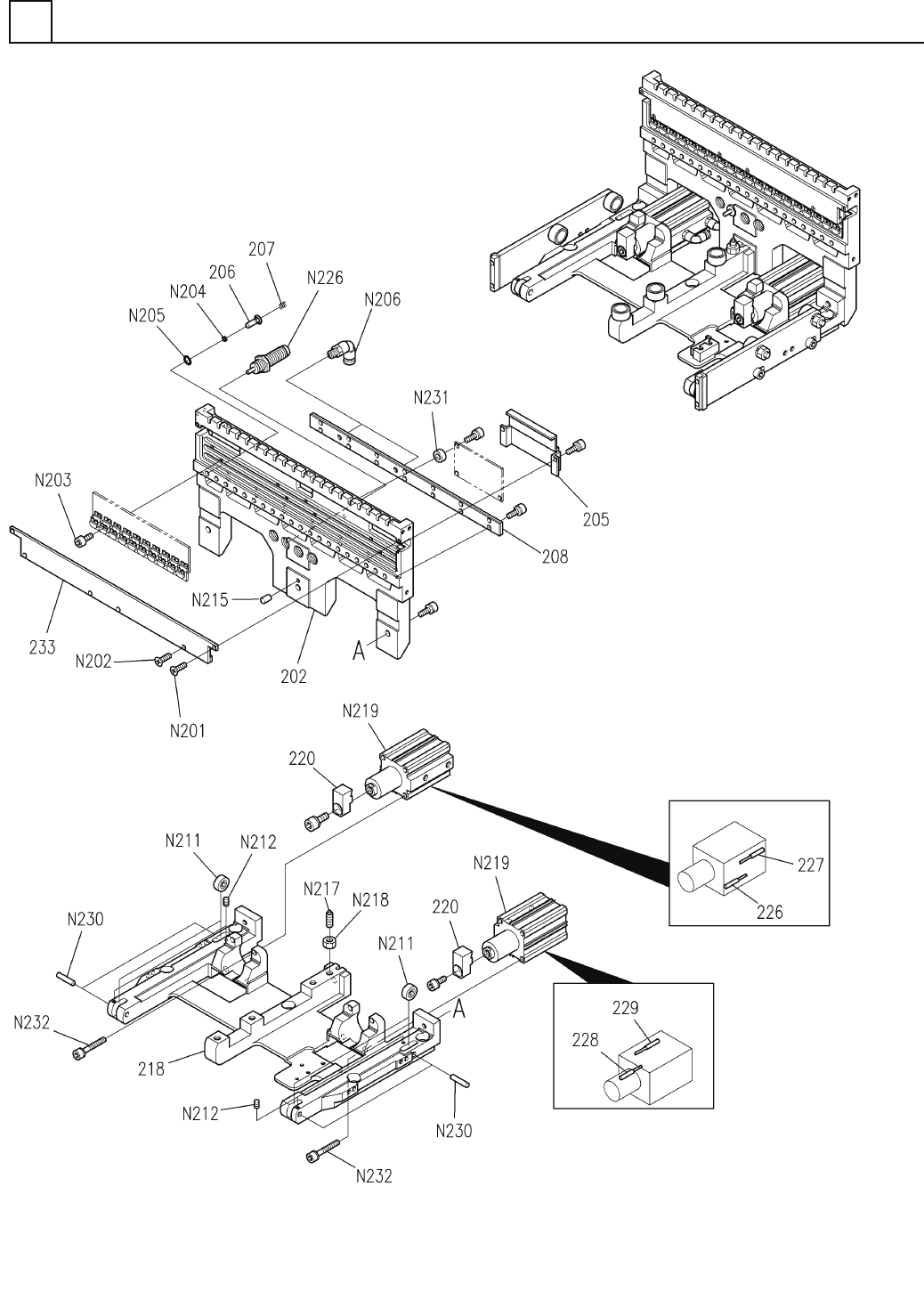

固定供給部
FIXED SUPPLY SECT.
26
F10862-07-300-AE_A
M185
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
26
固定供給部
FIXED SUPPLY SECT.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086207300
SUPPLY UNIT ｷｮｳｷｭｳﾕﾆｯﾄ
1
303 108620730307
FRAME ﾌﾚｰﾑ
1
305 108620730505
FRAME ﾌﾚｰﾑ
1308 108620730801
COVER ｶﾊﾞｰ
1311 108620731103
PLATE ﾌ
ﾟﾚｰﾄ
1
316 108620731601
COVER ｶﾊﾞｰ
20
318 108620731801
PIN ﾋﾟﾝ
20319 1086207319
SPRING ｱｯｼｭｸﾊ
ﾞﾈ
20320 108620732002
SPRING ｱｯｼｭｸﾊ
ﾞﾈ
1
328 108620732803
DUST BOX ﾀﾞｽﾄﾎﾞｯｸｽ
MSB8-20
20
N301
N986MSB820
BOLT ｼｮﾙﾀﾞﾎﾞﾙﾄ
3X20,STEEL
21
N302
XPL3A20WFW
SPRING PIN ｽﾌ
ﾟﾘﾝｸﾞﾋﾟﾝ
MRN00000051
20
N303
N986MRN0-B86
BLOCK ﾌﾞﾛｯｸ
M2.5X10-4.8 A2J (Triva
4
N306
N510018117AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M2.5X6,STEEL,T.T.C,12.
4
N307
XVE25B6FTC
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
MYA-5
20
N308
N555MYA5
PACKING ﾊ
ﾟｯｷﾝ
CO 0602A
20
N309
N554C00602A
O-RING O ﾘﾝｸﾞ
KJL06-M5
2
N310
N431KJL06M5
FITTING ﾂｷﾞﾃ
6X16,h7A,STEEL
1
N311
XPJ6C16FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M3X8-4.8 A2J (Trivalen
2
N313
N510018161AA
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
CL-303N
3
N314
N986CL303N
SPACER ｽﾍﾟｰｻ
M186
F10862-07-300-AE_A
