PART No. ｲﾗｽﾄ No. REF No. PART NAME REMARKS Q'TY 27 一括交換 ｶｰﾄ部(ﾎﾞｯｸ ｽ部) BATCH EXCHA NGE CART SECT. (BOX SECT .) 部 品 名 品 番 個数 備 考 R 1 R 2 1 1086217100 BATCH EXCHANGE CART UNIT ﾜｺﾞﾝｲｯｶﾂｺｳｶﾝｶ ｰﾄﾕﾆｯﾄ 1 102 108621710202 P…

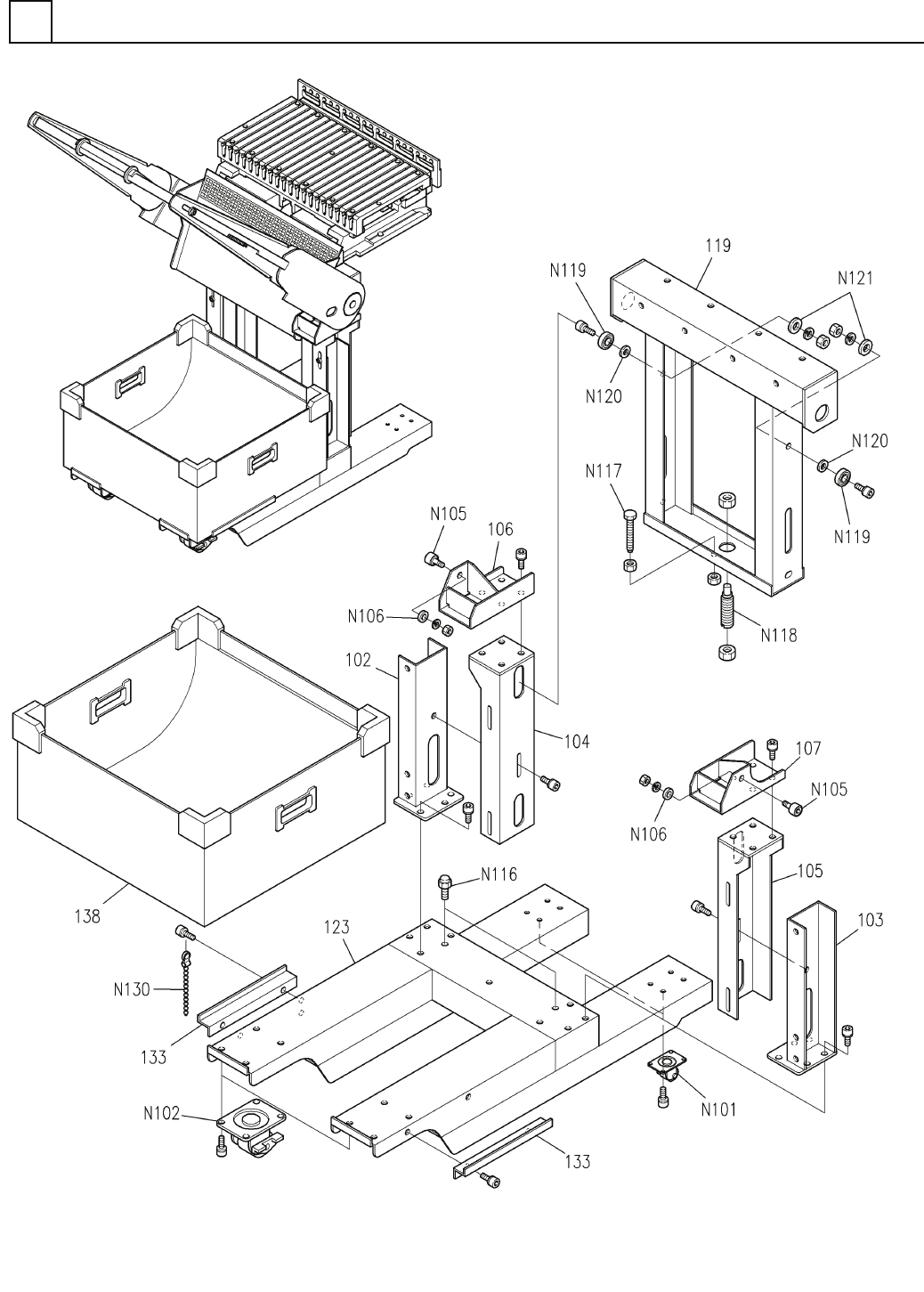

一括交換ｶｰﾄ部(ﾎﾞｯｸｽ部)
BATCH EXCHANGE CART SECT.(BOX SECT.)
27
F10862-17-100-AF_02-1
M191
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
27
一括交換ｶｰﾄ部(ﾎﾞｯｸｽ部)
BATCH EXCHANGE CART SECT.(BOX SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 1086217100
BATCH EXCHANGE CART UNIT ﾜｺﾞﾝｲｯｶﾂｺｳｶﾝｶｰﾄﾕﾆｯﾄ
1
102 108621710202
POLE(LEFT) ﾎﾟｰﾙ(LEFT)
1
103 108621710302
POLE(RIGHT) ﾎﾟｰﾙ(RIGHT)
1104 108621710401
GUIDE(LEFT) ｶﾞ
ｲﾄﾞ(LEFT)
1105 108621710501
GUIDE(RIGHT) ｶﾞｲﾄﾞ(
RIGHT)
1
106 108621710602
BRACKET(LEFT) ﾌﾞﾗｹｯﾄ(LEFT)
1
107 108621710702
BRACKET(RIGHT) ﾌﾞﾗｹｯﾄ(RIGHT)
1119 108621711905
FRAME ﾌﾚｰﾑ
1123 108621712304
FRAME ﾌﾚｰﾑ
2
133 1086217133
HOLDER ﾎﾙﾀﾞ
1138 1086217138
DUST BOX ﾀﾞｽﾄﾎﾞｯｸｽ
NO.104N
2
N101
N986N0104N
CASTER ｷｬｽﾀｰ
NO.107NS
2
N102
N986N0107NS
CASTER ｷｬｽﾀｰ
CF8-A
2
N105
N531CF8A
CAM FOLLOWER ｶﾑﾌｫﾛｱ
WSSB20-8-5
2
N106
N560WSSB2085
WASHER ﾜｯｼｬ
SUB-M8X50
2
N116
N510023203AA
BOLT ﾎ
ﾞﾙﾄ
M8X110-6g 4T A2J (Tri
1
N117
N510018899AA
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ
FA-2530GB-S-MD1
1
N118
N437FA25-071
SHOCK-ABSORBER ｼｮｯｸｱﾌﾞｿｰﾊﾞｰ
608ZZ
4
N119
XLCN608ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
CIMR8-12-0.3
4
N120
N560C1MR-279
SHIM ｼﾑ
WSSB30-8-3
4
N121
N560WSSB3083
WASHER ﾜｯｼｬ
TM-178L=150MM
1
N130
N982TM17-017
CHAIN ﾁｪｰﾝ
M192
F10862-17-100-AF_02-1
一括交換ｶｰﾄ部(ﾚﾊﾞｰ部)
BATCH EXCHANGE CART SECT.(LEVER SECT.)
27
F10862-17-100-AF_02-2
M193
