BM221 Parts list(Mechanical20140224) - 第387页
PART No. ｲﾗｽﾄ No. REF No. PA RT NAME REM ARKS Q'TY 39 回収ｺ ﾝﾍﾞｱ部(2< 32mm>) RECOVE RY CONVEYER SE CT.(2<32mm>) 部 品 名 品 番 個数 備 考 R 1 R 2 2 427 1089680027 PLATE ﾌ ﾟﾚｰﾄ 1 428 108968022801 COVER ｶﾊﾞｰ 1 432 108…

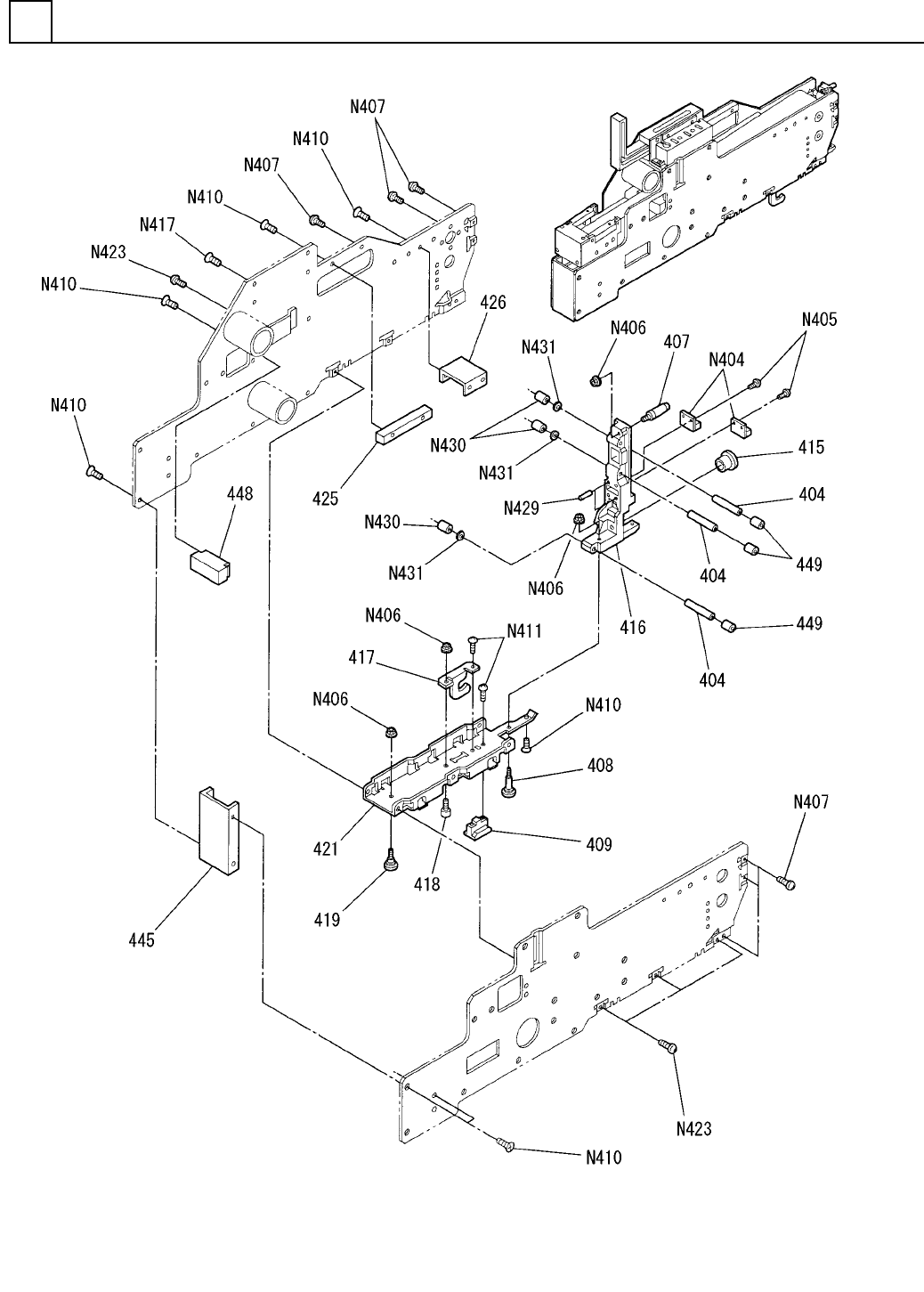

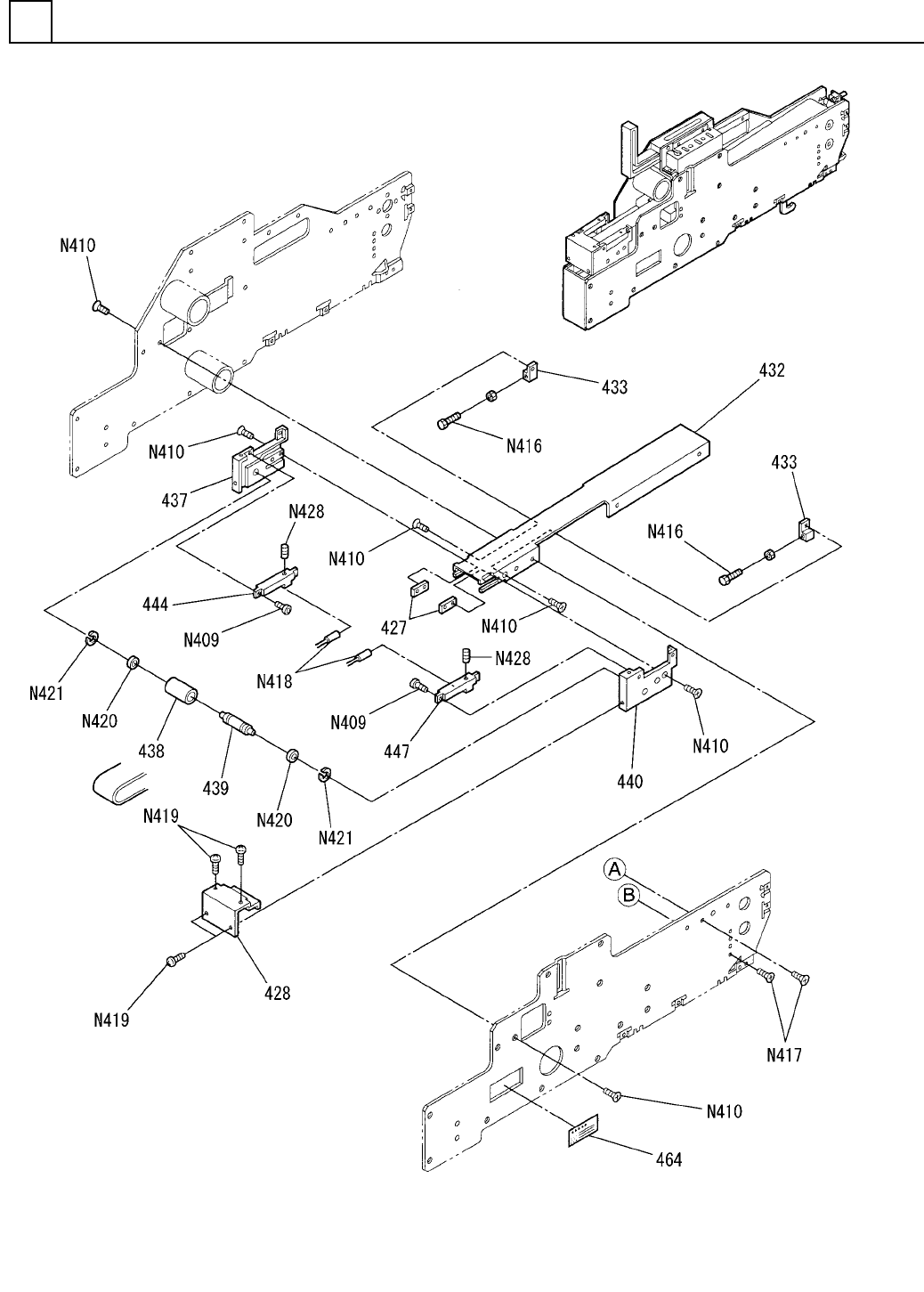

回収ｺﾝﾍﾞｱ部(2<32mm>)
RECOVERY CONVEYER SECT.(2<32mm>)
39
F10896-80-400-AD_A-2
M355
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
39
回収ｺﾝﾍﾞｱ部(2<32mm>)
RECOVERY CONVEYER SECT.(2<32mm>)
部 品 名 品 番 個数 備 考
R
1
R
2
2427 1089680027
PLATE ﾌ
ﾟﾚｰﾄ
1
428 108968022801
COVER ｶﾊﾞｰ
1
432 1089680432
RAIL ﾚｰﾙ
2433 1089680033
BLOCK ﾌﾞﾛｯｸ
1437 1089680537
PLATE ﾌ
ﾟﾚｰﾄ
1
438 1089680438
PULLEY ﾌﾟｰﾘｰ
1
439 1089680039
SHAFT ｼｬﾌﾄ
1440 1089680540
PLATE ﾌ
ﾟﾚｰﾄ
1444 1089680544
BLOCK ﾌ
ﾞﾛｯｸ
1
447 1089680547
BLOCK ﾌﾞﾛｯｸ
1464 1089698232
LABEL ﾗﾍﾞﾙ
FHHSM12AAGZC2M3X4M
4
N409
N986FHHS-H72
SCREW ﾈｼ
ﾞ
M3X6-4.8 A2J (Trivalen
10
N410
N510018158AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M3X16,STEEL,Z.C.T
2
N416
XVGN3A16FYZ
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ
M4X8-4.8 A2J (Trivalen
4
N417
N510018180AA
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
FU-16
2
N418
N310FU16
OPTICAL FIBER CABLE UNIT ﾌｧｲﾊ
ﾞﾕﾆｯﾄ
M2X4-4.8 A2J (Trivalen
4
N419
N510018027AA
PAN HEAD SCREW ﾅﾍﾞｺﾈｼﾞ
R-1980HH
2
N420
XLCNR1980HH
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
ISTW-8
2
N421
XUBN1STW8
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
M3X6,STEEL,T.T.C
4
N428
XXE3D6FT
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
