給電ﾕﾆ ｯﾄ ELECTR IC SUPPLY UNIT 51 F10896-96-500_A M405
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
50
ﾌｨｰﾀﾞﾜｺﾞﾝ部
FEEDER WAGON SECT.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1049755150
FEEDER WAGON UNIT ﾌｨｰﾀ
ﾞﾜｺﾞﾝﾕﾆｯﾄ
1
151 104975515101
LEFT FRAME ﾌﾚｰﾑ(LEFT)
1
152 104975515202
RIGHT FRAME ﾌﾚｰﾑ(RIGHT)
1153 104975500902
GUIDE ｶﾞｲﾄﾞ
2154 104975500302
FRAME ﾌﾚｰﾑ
1
155 104975500806
GUIDE ｶﾞｲﾄﾞ
1
156 104975501001
GUIDE ｶﾞｲﾄﾞ
1157 104975515701
LABEL ﾗﾍ
ﾞﾙ
2158 104975500605
PLATE ﾌ
ﾟﾚｰﾄ
1
159 104975500403
FRAME ﾌﾚｰﾑ
1160 1049755160
PLATE ﾌﾟﾚｰﾄ
M5X10 SP TYPE
22
N001
N986YYYY-E35
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
413SA-RB100
4
N002
N986413S-M62
CASTER ｷｬｽﾀｰ
M4X12
6
N003
N986YYYY-K37
SCREW ﾈｼﾞ
23X29
1
N007
N986YYYY-Q99
SPANNER ｽﾊﾟﾅ
M404
F10497-55-150-AE
給電ﾕﾆｯﾄ
ELECTRIC SUPPLY UNIT
51
F10896-96-500_A
M405
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
51

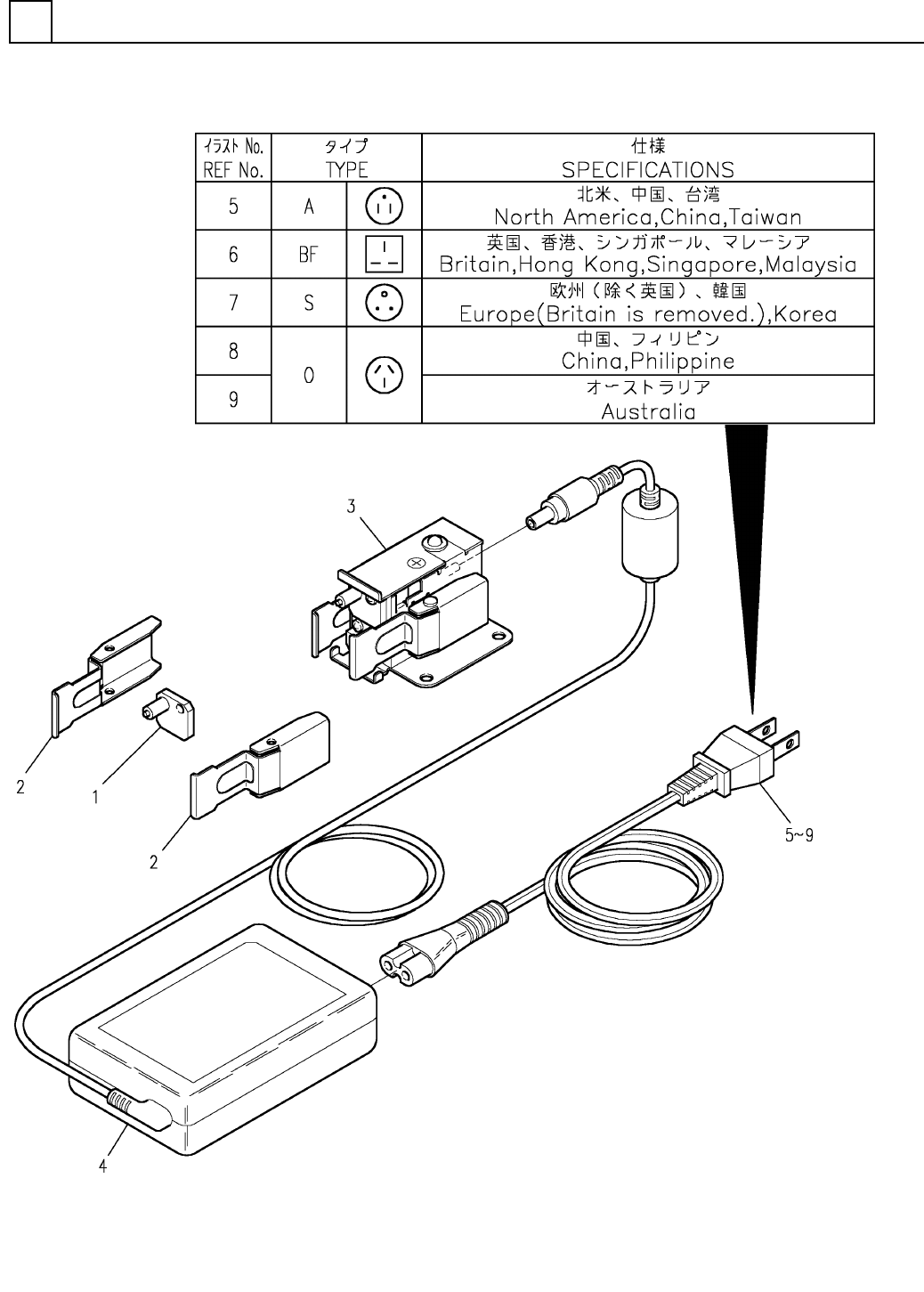

給電ﾕﾆｯﾄ
ELECTRIC SUPPLY UNIT
部 品 名 品 番 個数 備 考
R
1
R
2
1 1089696500
ELECTRIC SUPPLY UNIT ｷｭｳﾃ
ﾞﾝﾕﾆｯﾄ
1612909-1
1
1 N24416129091
PLUNGER ﾌﾟﾗﾝｼﾞｬｰ
1612910-1
2
2* N24416129101
ARM ｱｰﾑ
1612975-1
13 N24416129751
ADAPTOR ｱﾀﾞﾌﾟﾀ
1612912-1
14 N24416129121
AC ADAPTER AC
ｱﾀﾞﾌﾟﾀ
1
5 3049530400
POWER SUPPLY CABLE ﾃﾞﾝｹﾞﾝｹｰﾌﾞﾙ
1
6 3049530410
POWER SUPPLY CABLE ﾃﾞﾝｹﾞﾝｹｰﾌﾞﾙ
17 3049530420
POWER SUPPLY CABLE ﾃﾞﾝｹ
ﾞﾝｹｰﾌﾞﾙ
18 3049530430
POWER SUPPLY CABLE ﾃﾞﾝｹ
ﾞﾝｹｰﾌﾞﾙ
1
9 3049530430
POWER SUPPLY CABLE ﾃﾞﾝｹﾞﾝｹｰﾌﾞﾙ
M406
* １セットの販売です｡ The sale of arm is one set.
F10896-96-500_A
