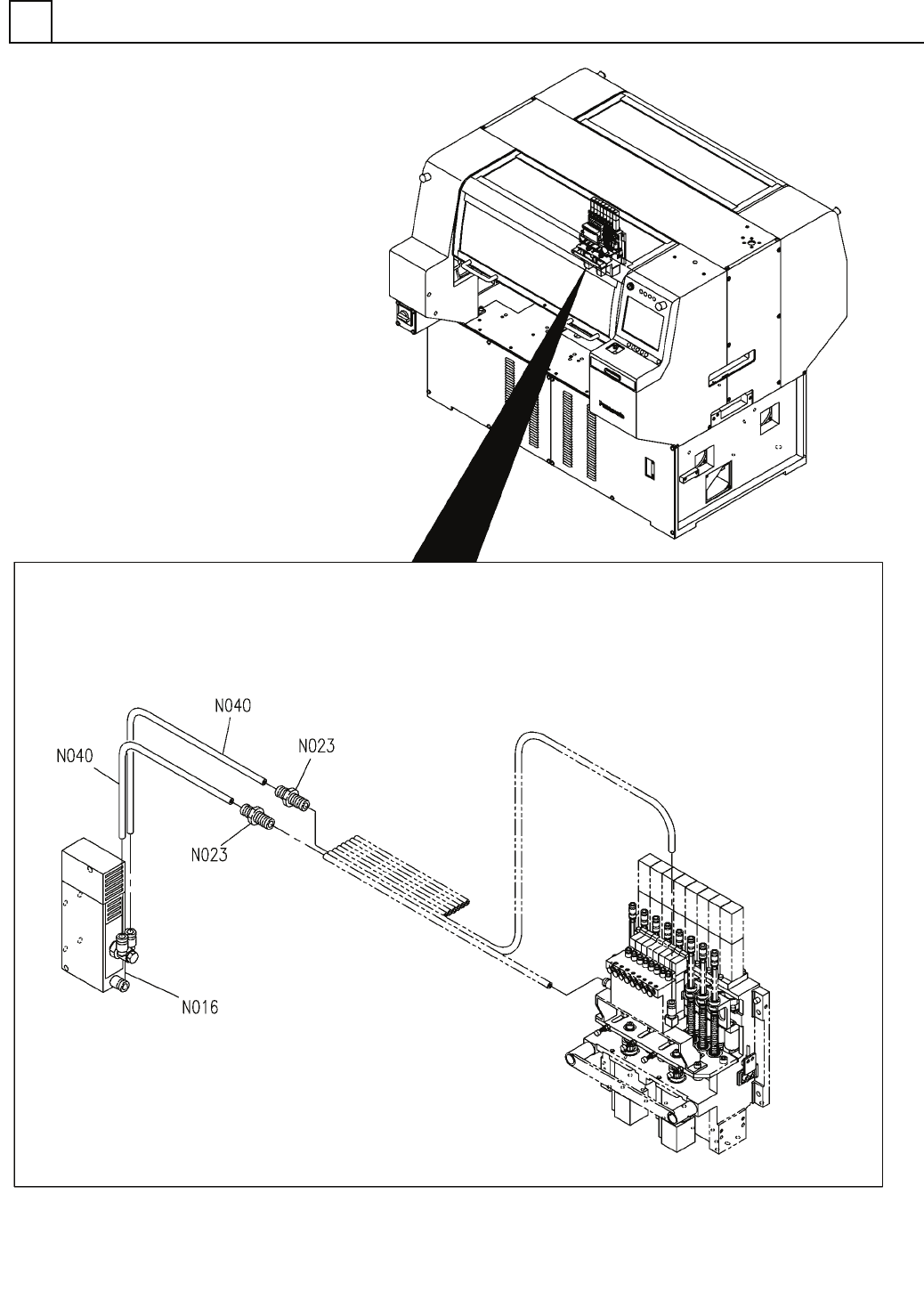

空圧制 御部(共通部1 ) PNEUMAT IC SYSTEM SECT .(COMMON SECT .-1) 1 FN610063359AA _03-1 P1
空圧制御部(共通部1)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-1)
1
FN610063359AA_03-1
P1
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
空圧制御部(共通部1)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-1)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610063359AA
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷ
ﾞｮﾕﾆｯﾄ
NK-80376D
1
N016
N454NK80376D
EJECTOR FOR VACUUM ｼﾝｸｳｴｼﾞｪｸﾀ
KQ2E08-00
2
N023
KXF0E11CA00
FITTING ﾂｷﾞﾃ
TU0805B-100
1
N040
KXF08MAAA00
TUBE ﾁｭｰﾌ
ﾞ
P2
FN610063359AA_03-1
