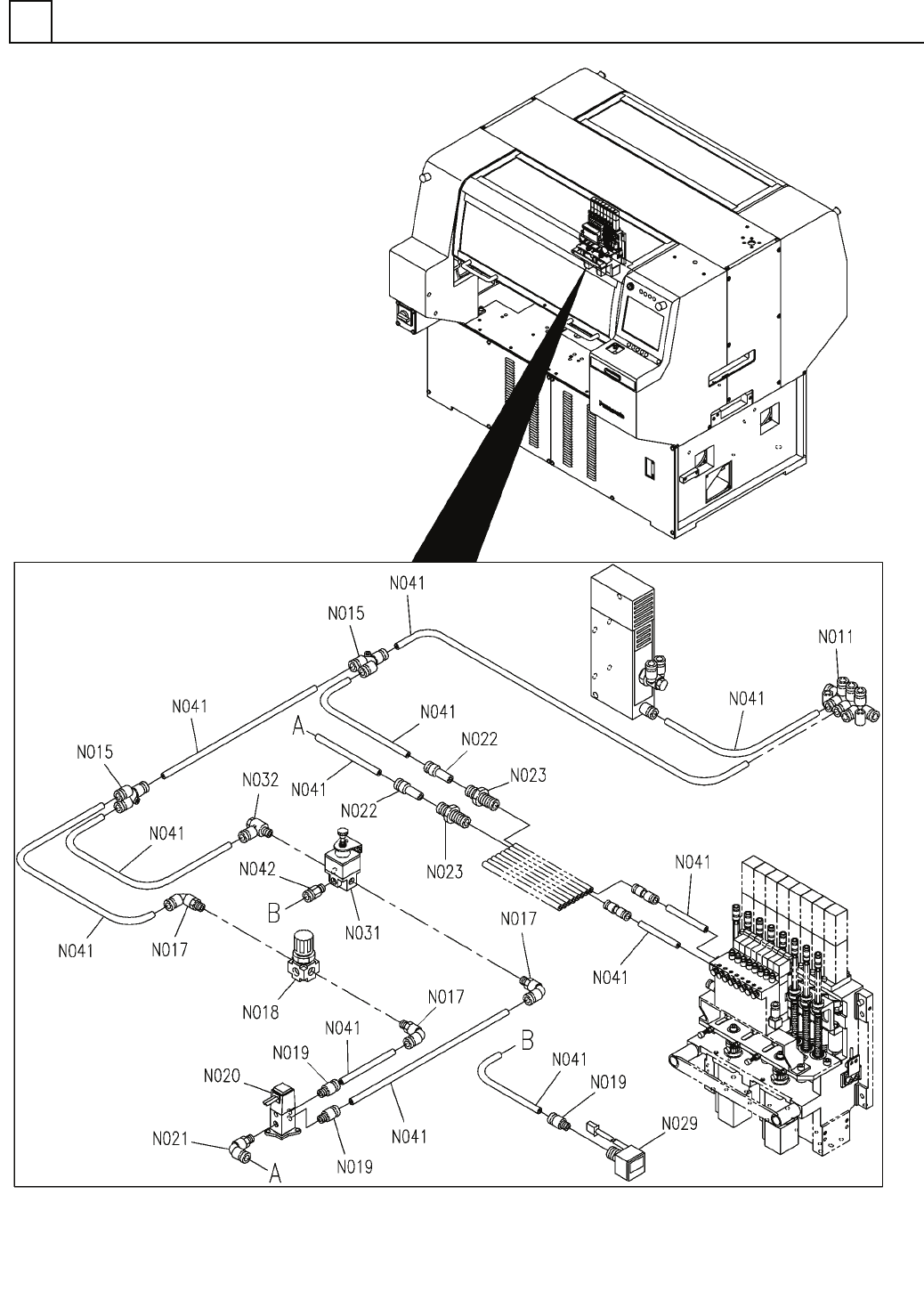

空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
1
FN610063359AA_03-2
P3
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
1
空圧制御部(共通部2)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-2)
部 品 名 品　 番 個数
備 考
R
1
R
2
KM11-06-10-6
1
N011
KXF09JXAA00
MANIFOLD ﾏﾆﾎｰﾙﾄ
ﾞ
KQ2U06-00
2
N015
KXF0A3FAA00
FITTING ﾂｷﾞﾃ
KJL06-01S
3
N017
KXF029KAA00
FITTING ﾂｷﾞﾃ
IR1000-01
1
N018
KXF0E4A9A00
REGULATOR ﾚｷ
ﾞｭﾚｰﾀ
KQ2S06-M5
3
N019
KXF0DZ7YA00
FITTING ﾂｷ
ﾞﾃ
VKF332-5GS-M5
1
N020
N411VKF3-725
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
KJL06-M5
1
N021
KXF029LAA00
FITTING ﾂｷﾞﾃ
KQ2R06-08
2
N022
KXF0A0EAA00
FITTING ﾂｷ
ﾞﾃ
KQ2E08-00
2
N023
KXF0E11CA00
FITTING ﾂｷ
ﾞﾃ
ZSE30AF-01-N-ML
1
N029
N610144303AA
PRESSURE SWITCH ｱﾂﾘｮｸｽｲｯﾁ
IR2000-02-X108
1
N031
N4231R20-187
REGULATOR ﾚｷﾞｭﾚｰﾀ
KQ2V06-02S
1
N032
KXF0DY1MA00
FITTING ﾂｷ
ﾞﾃ
TU0604B-100
1
N041
KXF0E1QGA00
TUBE ﾁｭｰﾌﾞ
KJH06-01S
1
N042
KXF07PXAA00
FITTING ﾂｷﾞﾃ
