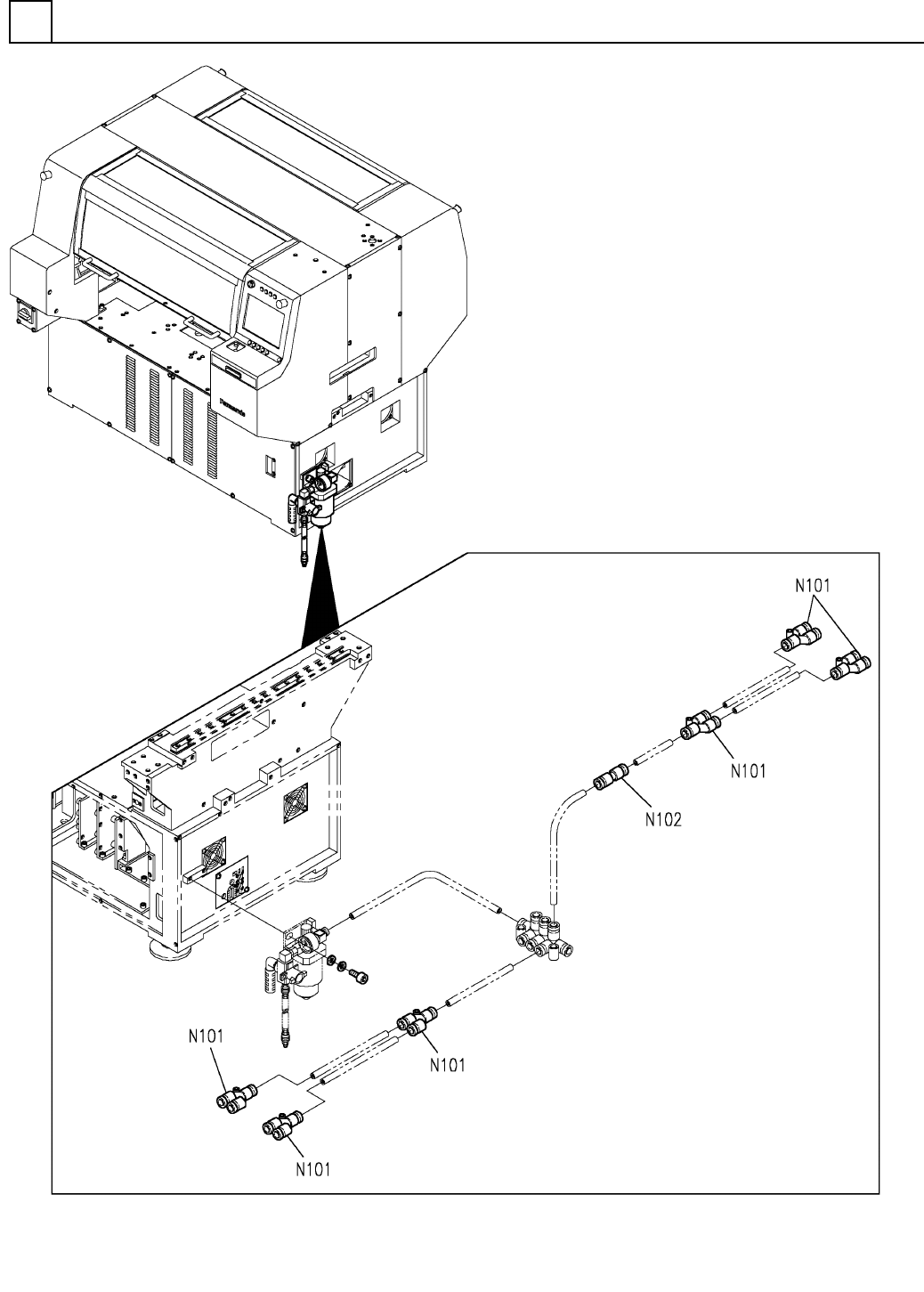

空圧制御部(共通部3)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-3)
1
FN610063359AA_03-3
P5
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
空圧制御部(共通部3)
PNEUMATIC SYSTEM SECT.(COMMON SECT.-3)
部 品 名 品 番 個数
備 考
R
1
R
2
1001 N210043322AB
AIR SYSTEM UNIT ｴｱｰｼｽﾃﾑﾕﾆｯﾄ
1
002 N210043341AB
BRACKET ﾌﾞﾗｹｯﾄ
OUA8X12-5M-03B
1
N001
N510002541AA
TUBE WITH FITTING ﾁｭｰﾌﾞﾕﾆｯﾄ
AN303-03
1
N003
KXF00WGAA00
SILENCER ｻｲﾚﾝｻ
VHS40-03
1
N004
N413VHS4003
VALVE ﾊﾞ
ﾙﾌﾞ
KQ2H10-03S
1
N010
KXF0E34XA00
FITTING ﾂｷﾞﾃ
KQ2T10-00
1
N012
KXF0E496A00
FITTING ﾂｷﾞﾃ
KQ2E10-00
2
N013
KXF0E2G5A00
FITTING ﾂｷ
ﾞﾃ
KQ2P-10
2
N014
KXF0DZKSA00
PLUG ﾌﾟ
ﾗｸﾞ
KQ2U06-00
1
N015
KXF0A3FAA00
FITTING ﾂｷﾞﾃ
AWM40-03DGH
1
N033
N510004967AA
REGULATOR ﾚｷﾞｭﾚｰﾀ
(SL)3/8
2
N034
N510013495AA
JOINT ｼ
ﾞｮｲﾝﾄ
(SL)1/4
1
N035
N510013494AA
JOINT ｼﾞｮｲﾝﾄ
(Ni)3/8
1
N036
N510013499AA
FITTING ﾆｯﾌﾟﾙ
3C-IS10E-4003
1
N037
N510062216AA
SWITCH ｽｲｯﾁ
Y400
1
N038
N510013493AA
SPACER ｽﾍ
ﾟｰｻ
TU1065B-100
1
N039
N510028474AA
TUBE ﾁｭｰﾌﾞ
TU0604B-100
1
N041
KXF0E1QGA00
TUBE ﾁｭｰﾌﾞ
P6
FN610063359AA_03-3
