空圧制御 部(ｶｰﾄ 専用部) PNEUMA TIC SYSTEM SEC T.(CART EXCL USIVE SECT .) 1 F10862-03-120-AB_0 1 P13
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1
空圧制御部(専用部)
PNEUMATIC SYSTEM SECT.(EXCLUSIVE SECT.)
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610063360AA
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷ
ﾞｮﾕﾆｯﾄ
KQ2H06-00
1
N001
KXF0E1Z9A00
FITTING ﾂｷﾞﾃ
KQ2P-06
1
N002
KXF09ZBAA00
PLUG ﾌﾟﾗｸﾞ
KQ2U06-00
3
N003
KXF0A3FAA00
FITTING ﾂｷﾞﾃ
P12
FN610063360AA_01
空圧制御部(ｶｰﾄ専用部)
PNEUMATIC SYSTEM SECT.(CART EXCLUSIVE SECT.)
1
F10862-03-120-AB_01
P13
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
1

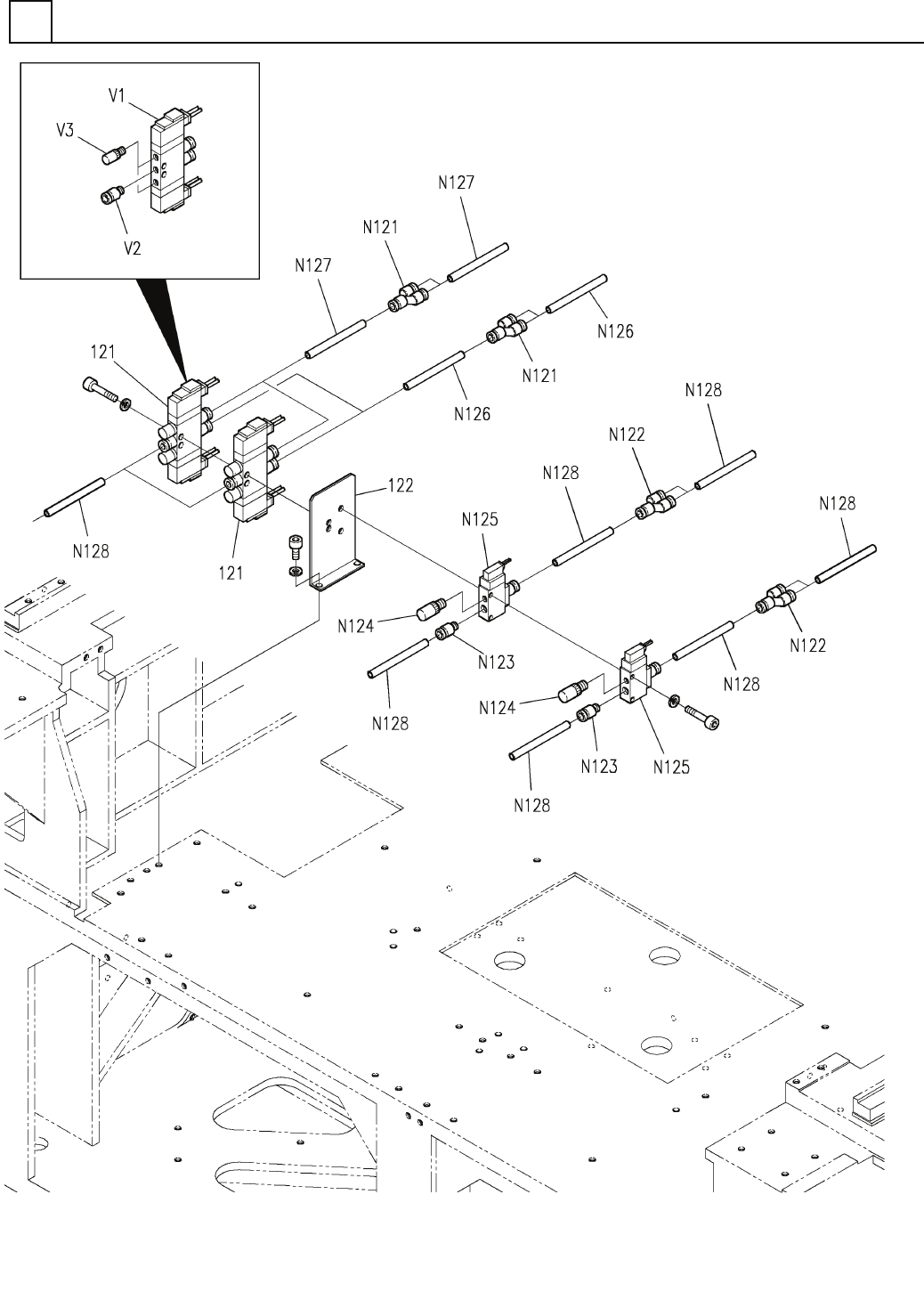

空圧制御部(ｶｰﾄ専用部)
PNEUMATIC SYSTEM SECT.(CART EXCLUSIVE SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 1086203120
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷ
ﾞｮﾕﾆｯﾄ
2
121 N610131425AA
VALVE ﾊﾞﾙﾌﾞ
1
122 108621799101
BRACKET ﾌﾞﾗｹｯﾄ
KQ2U04-00
4
N121
N431KQ2U0400
FITTING ﾂｷ
ﾞﾃ
KQ2U06-00
2
N122
N431KQ2U0600
FITTING ﾂｷ
ﾞﾃ
KQ2S06-02S
2
N123
N431KQ2S-434
FITTING ﾂｷﾞﾃ
AN101-01
2
N124
N418AN10101
SILENCER ｻｲﾚﾝｻ
VQZ332-5M1-C6-X555
2
N125
N510059433AA
VALVE ﾊ
ﾞﾙﾌﾞ
30-04,BLACK
1
N126
N4354UHK
TUBE ﾁｭｰﾌ
ﾞ
30-04,YELLOW
1
N127
N4354UHY
TUBE ﾁｭｰﾌﾞ
30-06,BLACK
1
N128
N4356UHK
TUBE ﾁｭｰﾌﾞ
VQZ1221B-5MO1-C4-X555
1V 1 N510059432AA
VALVE ﾊ
ﾞﾙﾌﾞ
KJS06-M5
1
V 2 KXF029PAA00
FITTING ﾂｷﾞﾃ
AN120-M5
2
V 3 KXF00WCAA00
SILENCER ｻｲﾚﾝｻ
P14
F10862-03-120-AB_01
